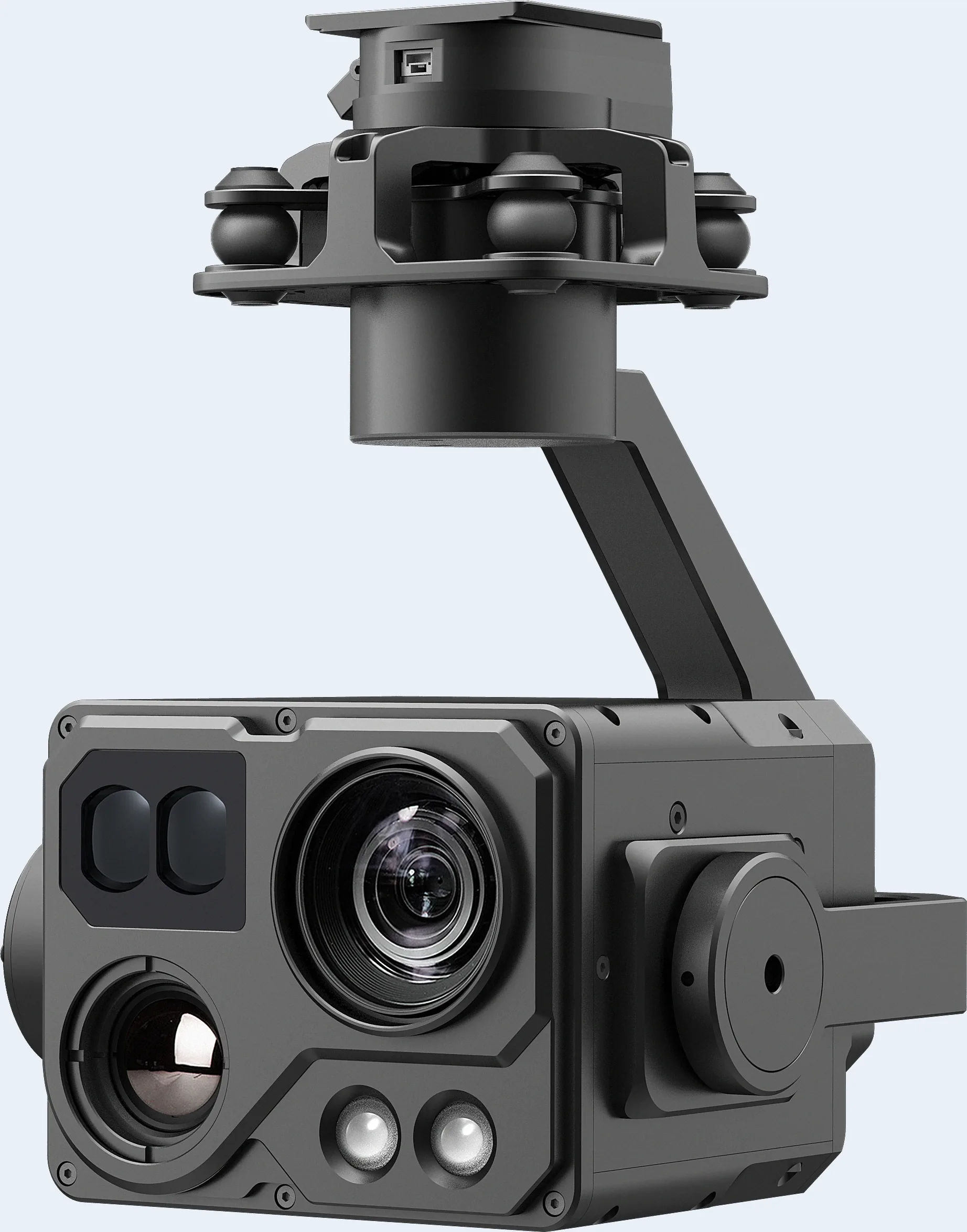

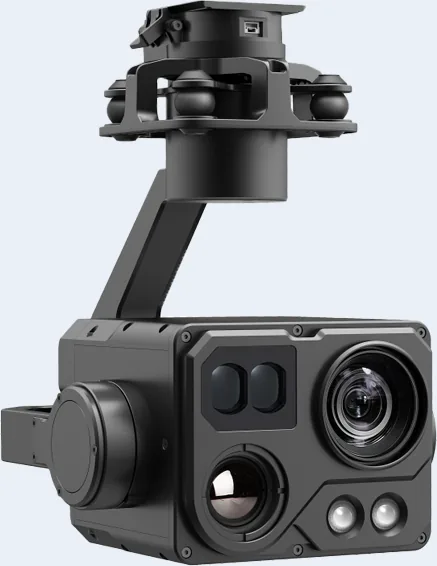

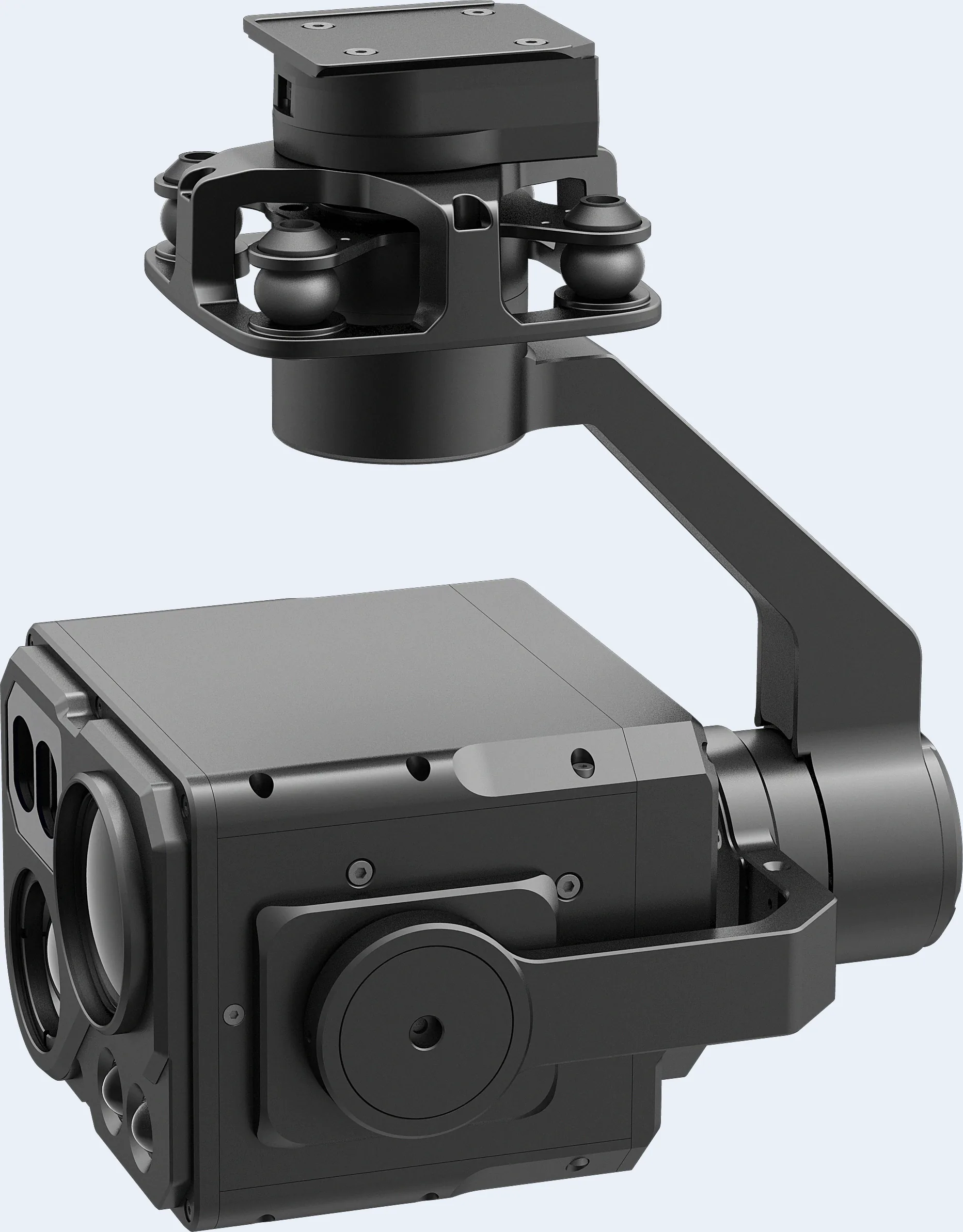

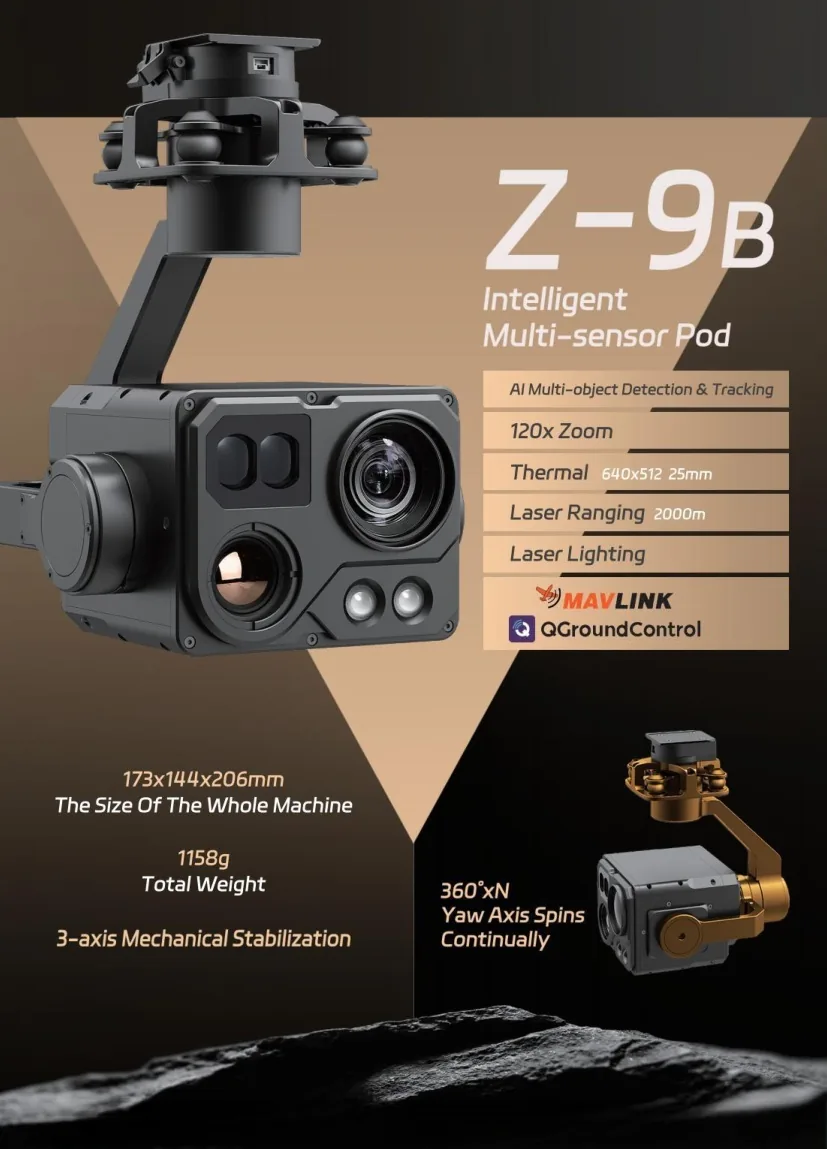

LX-9B 120x EO/IR AI Gimbal Camera, 640x512 Thermal, 2000m Ranging

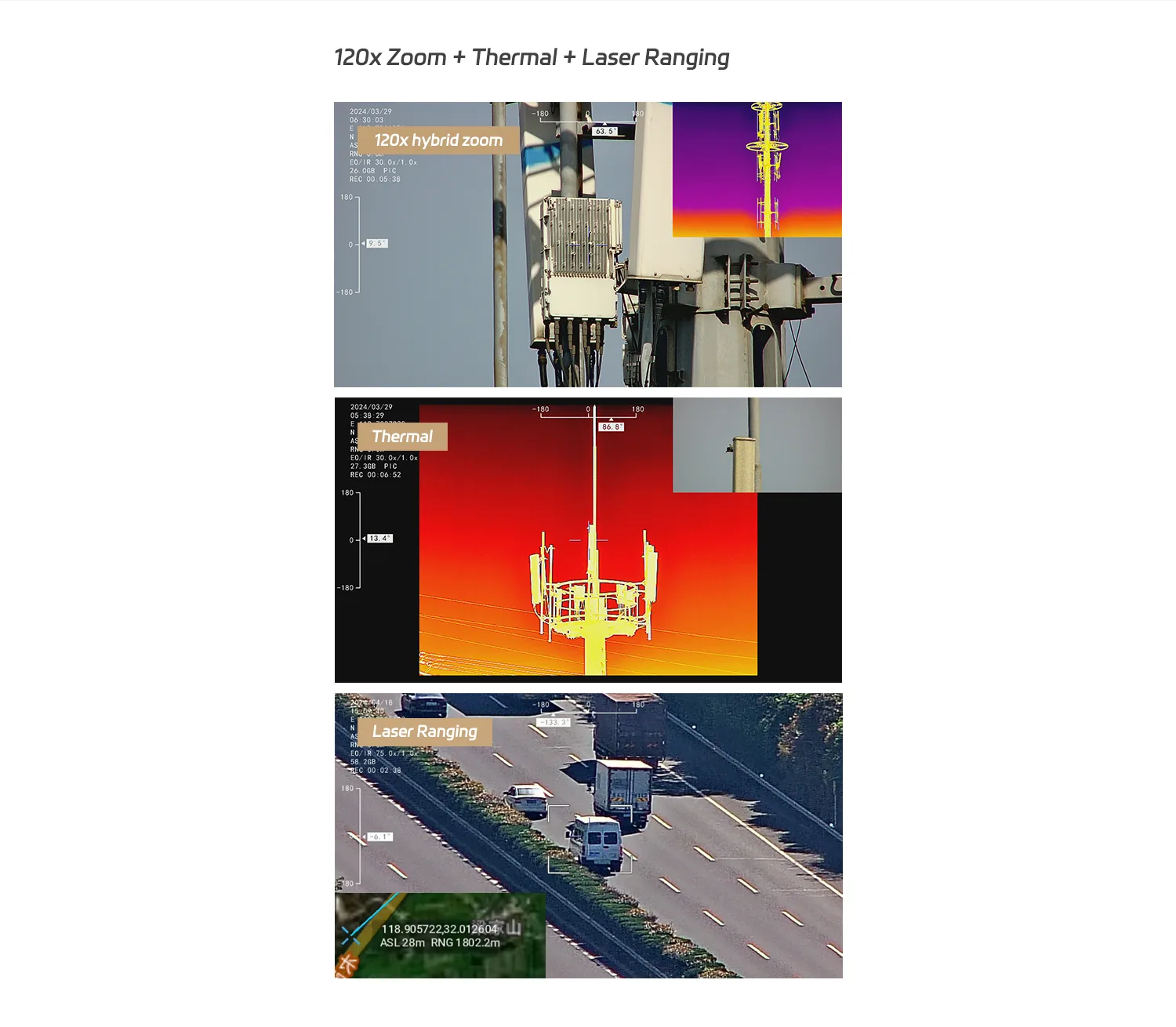

LX-9B is an intelligent multi-sensor EO/IR UAV payload for long-range observation, thermal detection and target ranging. It combines 120x hybrid zoom, 640x512 thermal imaging, 2000 m laser ranging, laser illumination, AI multi-object detection and tracking, MAVLink support and high-precision 3-axis stabilization.
Starting price
US$12,500
Rotate ∞°
DETAILS
Product Details

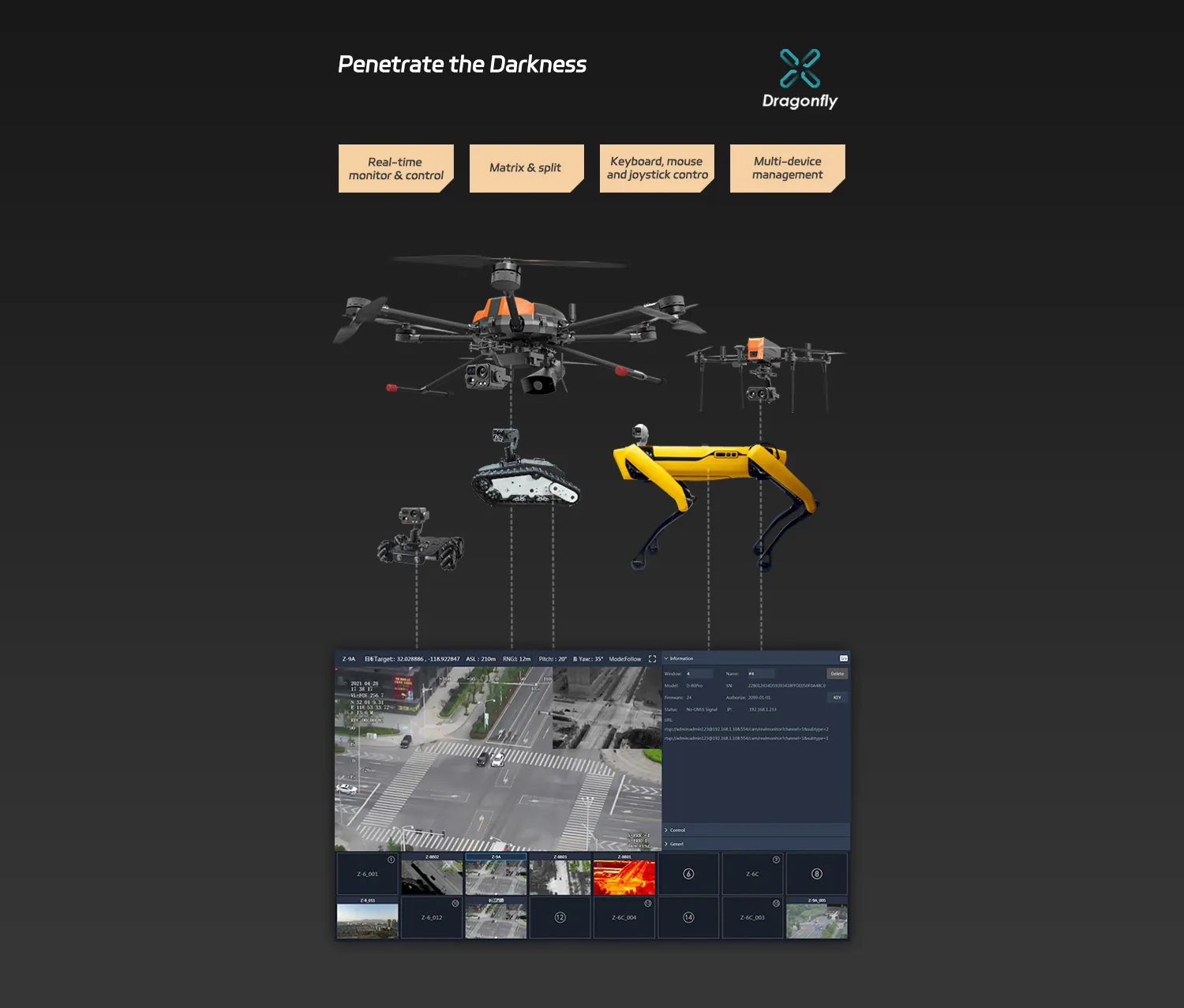

- High-end EO/IR AI payload for surveillance, inspection, public safety and emergency response.
- 640x512 thermal imaging supports higher-detail heat-source detection.
- Laser ranging and illumination support positioning and night operation.
- AI multi-object detection and tracking supports people and vehicle monitoring.
Applications
- Thermal inspection and search missions
- Public safety and emergency response
- Industrial inspection and security monitoring
- Night operation and low-visibility observation
SPECIFICATIONS
Specifications
| General | |
|---|---|
| Product Name | LX-9B |

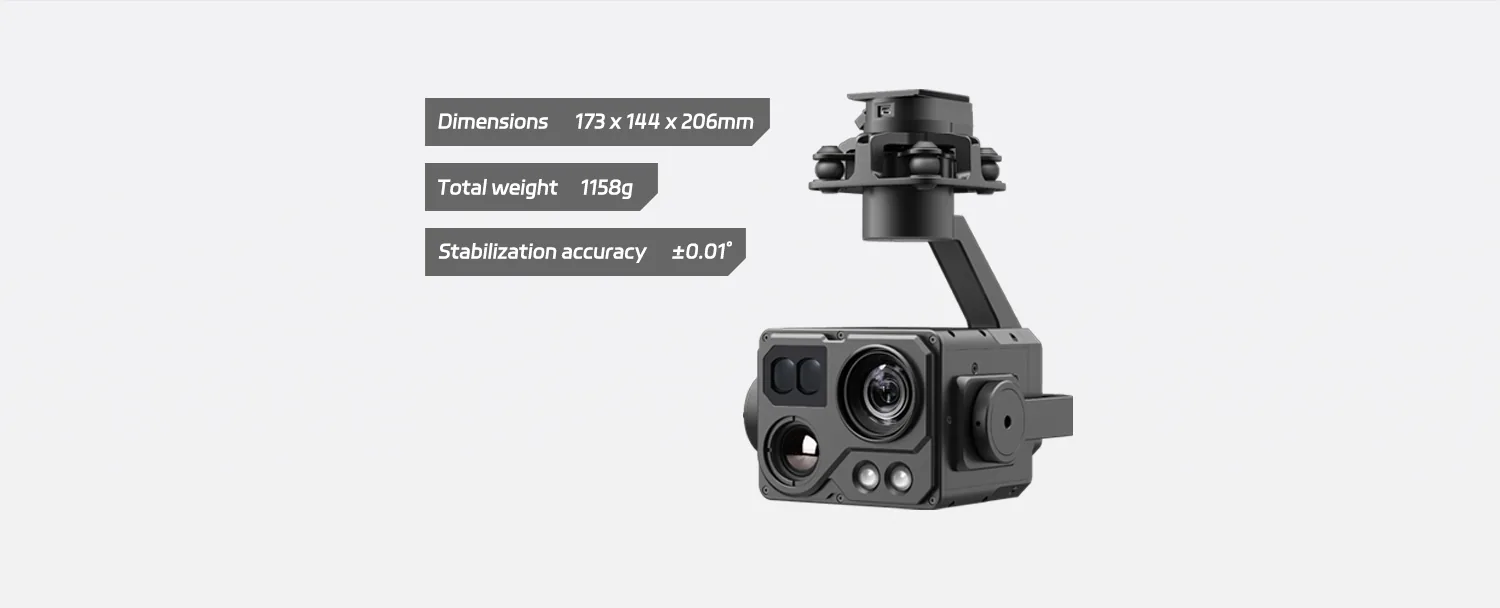

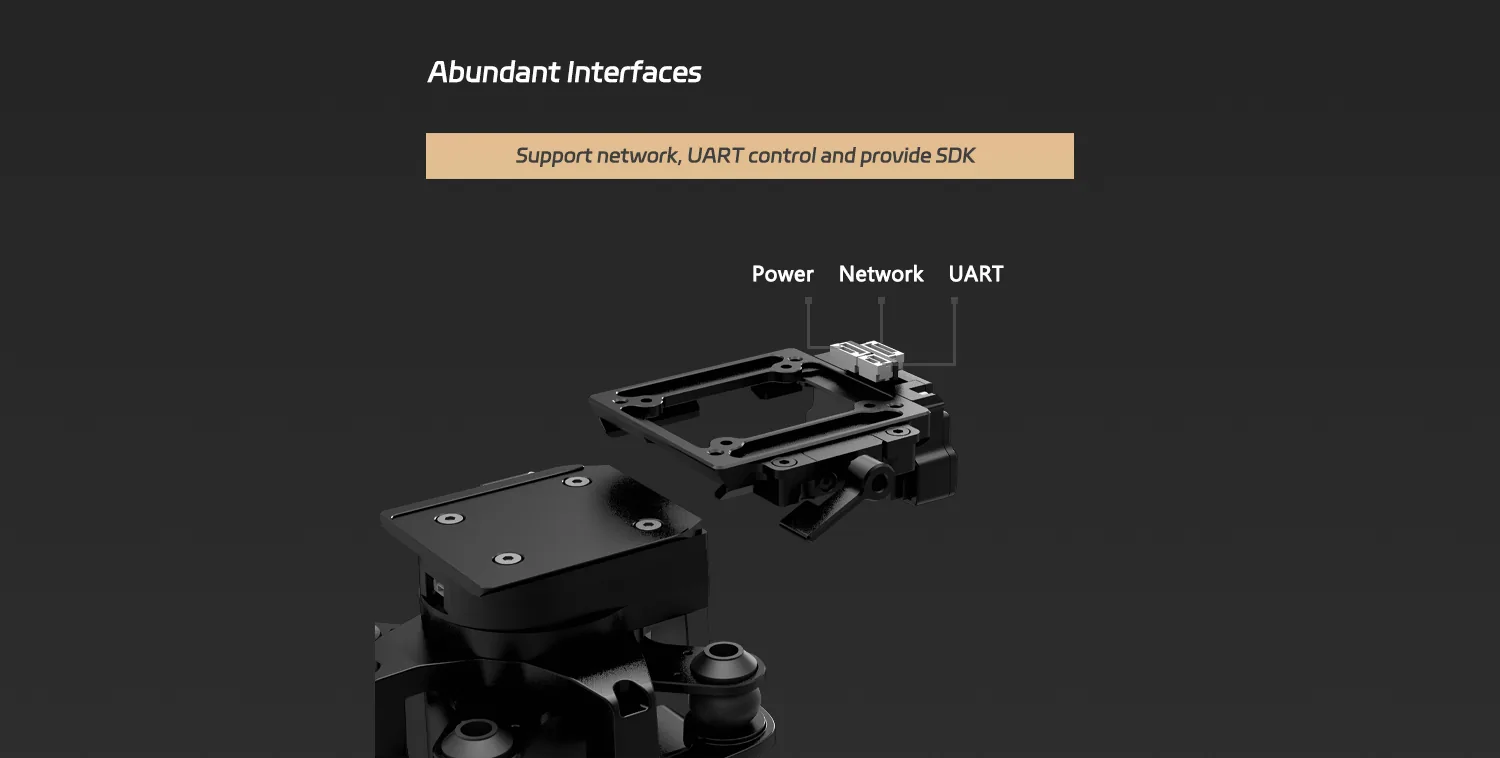

| Dimensions | 173 x 144 x 206mm |
| Weight | 1158g |
| Operating Voltage | 20 ~ 53 VDC |
| Power | 21.4W (AVG, ranging & light off）/ 50.4W (Stall, ranging & light on） |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis orthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |

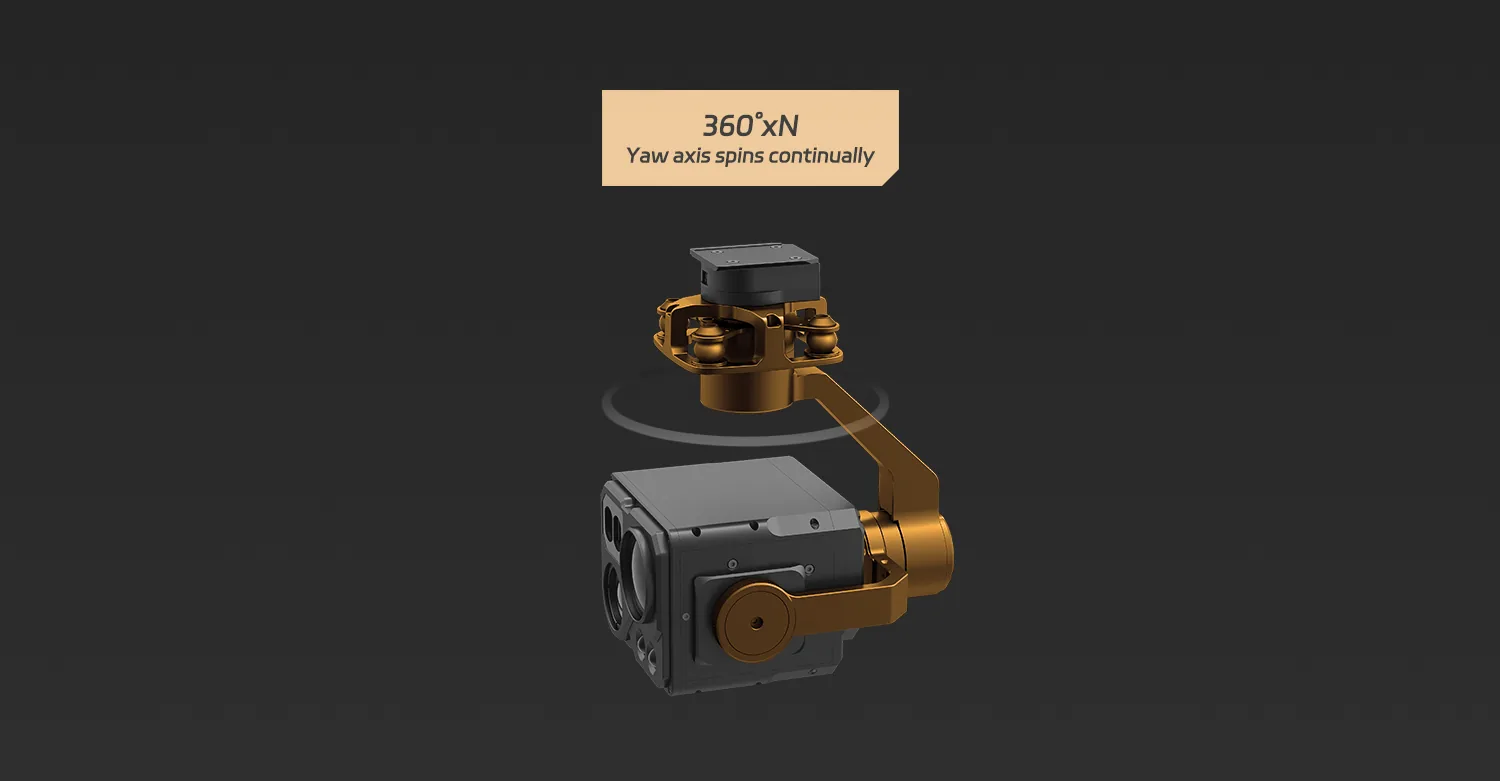

| Controllable Range | Pitch: -120°～55°, Roll: ±40°, Yaw: ±360°constantly |
| Max Controllable Speed | ±200°/s |
| Zoom Camera | |
| Image Sensor | 1/2.8-inch CMOS, Effective Pixels: 4.09M |
| Actual Focal Length | 4.7~141mm (Equivalent focal length: 27.9~837mm) |
| Aperture | f/1.5~f/4.0 |
| Lens | HFOV: 59.5°～2.2° |
| VFOV | 35.8°～1.2° |
| DFOV | 66.6°～2.5° |
| Resolution | 2688(H) x 1520(V) |
| Pixel Size | 2.0μm(H) x 2.0μm(V) |
| Optical Zoom Rate | 30x |
| Equivalent Digital Zoom Rate | 4x |
| Thermal Camera | |
| Thermal Sensor | Uncooled VOx Microbolometer |
| Focal Length | 25mm (Equivalent focal length: 93.2mm) |
| Aperture | f/1.0 |
| Lens | HFOV: 17.5° |
| VFOV | 14.0° |
| DFOV | 22.3° |
| Resolution | 640(H) x 512(V) |
| Pixel Size | 12μm(H) x 12μm(V) |
| Equivalent Digital Zoom Rate | 8x |
| Spectral Band | 8~14μm |
| Sensitivity (NETD) | <50mk@F1.0@25℃ |
| Temperature Measurement | Optional (Thermometry Type) |
| Temperature Measurement | Spot Measurement, Area Measurement; Method |
| Temperature Measurement | High Gain: -20°C~150°C; Range Low Gain: 0°C~550°C |
| Temperature Alert | High-temp Alert, Low-temp Alert |
| Sun Burn Protection | Supported[5] |
| Palette | Rainbow 1, Rainbow 2 |
| Laser Range Finder | |
| Wavelength | 905nm |
| Max Laser Power | 1mW |
| Beam Angle | 2.5mrad |
| Beam Diameter | 0.25m@100m |
| Laser Safety Class | 1M（IEC 60825-1:2014） |
| Measurement Accuracy | ±0.3m (≤300m) / ±1.0m (>300m) |
| Measurement Range | 5-2000m (ϕ12m vertical surface with 20% reflectivity) |
| Laser Lighting Module | |
| Wavelength | 850±10nm |
| Laser Power | 0.8W x2 |
| Beam Angle | 8°+30° |
| Beam Diameter | 14m+54m@100m |
| Effective Illumination Distance | ≤200m |
| Laser Safety Class | 3B（IEC 60825-1:2014） |
| AI Multi-object Detection & Tracking | |
| Object Identification Size | ≥30x20 px |
| Object Identification Rate | ≥85% |
| Object Identification Quantity | ≤50 |
| Target Tracking Size | 16x16~256x256 px |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤60ms |
| Target Pixel Error | ≤±1 px |
| Tracking Speed | >24 px / frame |
| Target Memory Time | >5s |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinate |
| Video Format | MP4; Stream: 1920 x 1080 @25fps |
| Maximum Video Resolution | Recording: 1920 x 1080 @30fps |
| Stream Encode Format | H.264, H.265 |
| Stream Network Protocol | RTSP |
| Storage | |
| Supported SD Cards | Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB |
| Environment | |
| Operating Temperature | -20℃～50℃ |
| Storage Temperature | -40℃～60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance | Johnson Criteria Person: 37500m; Light vehicle: 115000m; Large vehicle: 245000m; EN62676-4:2015 Person: 657m; Light vehicle: 863m; Large vehicle: 1838m |
| Zoom Camera - Object Identification Distance | Johnson Criteria Person: 9375m; Light vehicle: 28750m; Large vehicle: 61250m; EN62676-4:2015 Person: 328m; Light vehicle: 432m; Large vehicle: 919m |
| Zoom Camera - Object Verification Distance | Johnson Criteria Person: 4688m; Light vehicle: 14375m; Large vehicle: 30625m |
| Thermal Camera - Object Detection Distance | Person: 1042m; Light vehicle: 3194m; Large vehicle:6806m |
| Thermal Camera - Object Identification Distance | Johnson Criteria Person: 260m; Light vehicle: 799m; Large vehicle: 1701m |
| Thermal Camera - Object Verification Distance | Person: 130m; Light vehicle: 399m; Large vehicle: 851m |
