PAYLOADS / LX SERIES

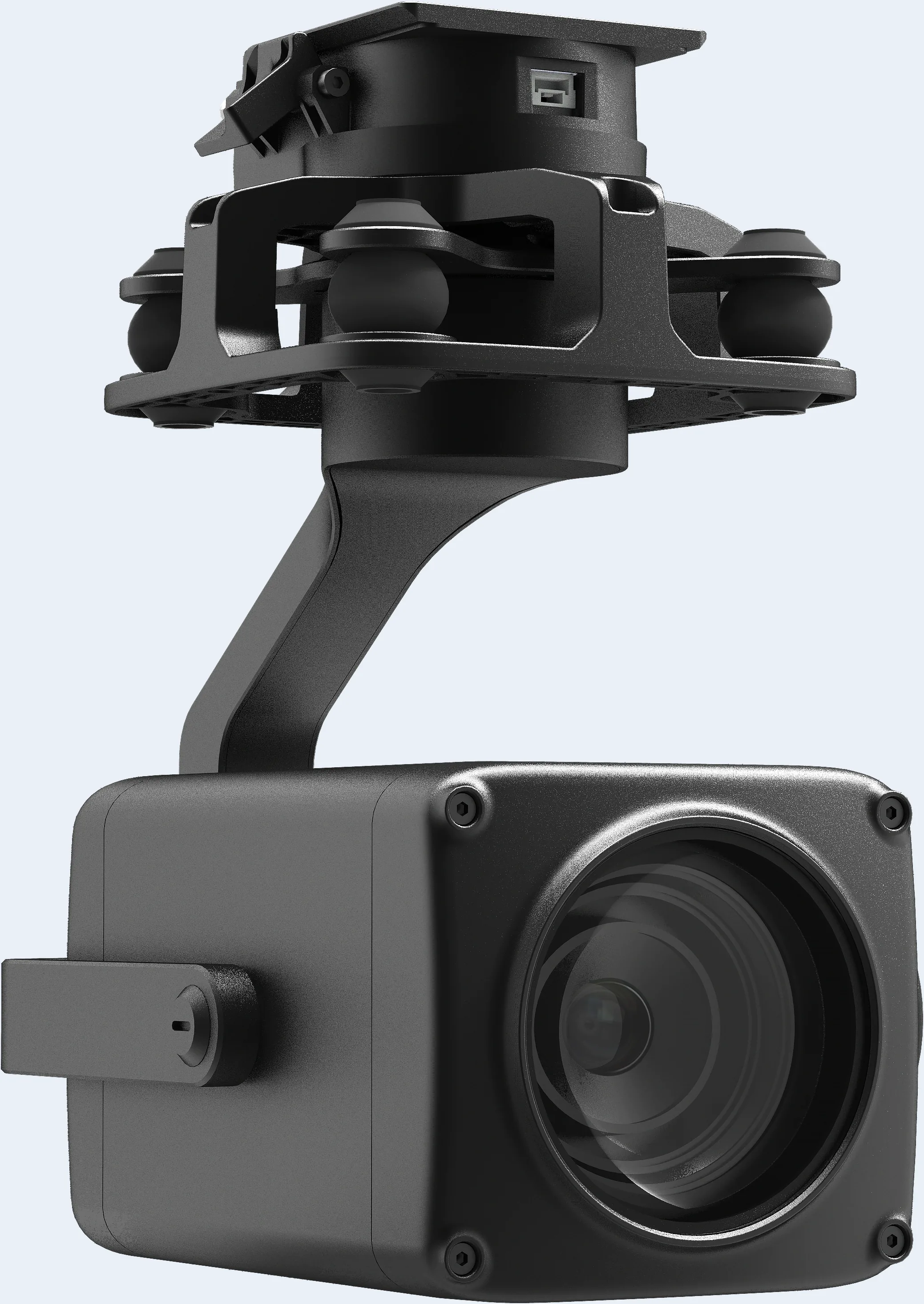

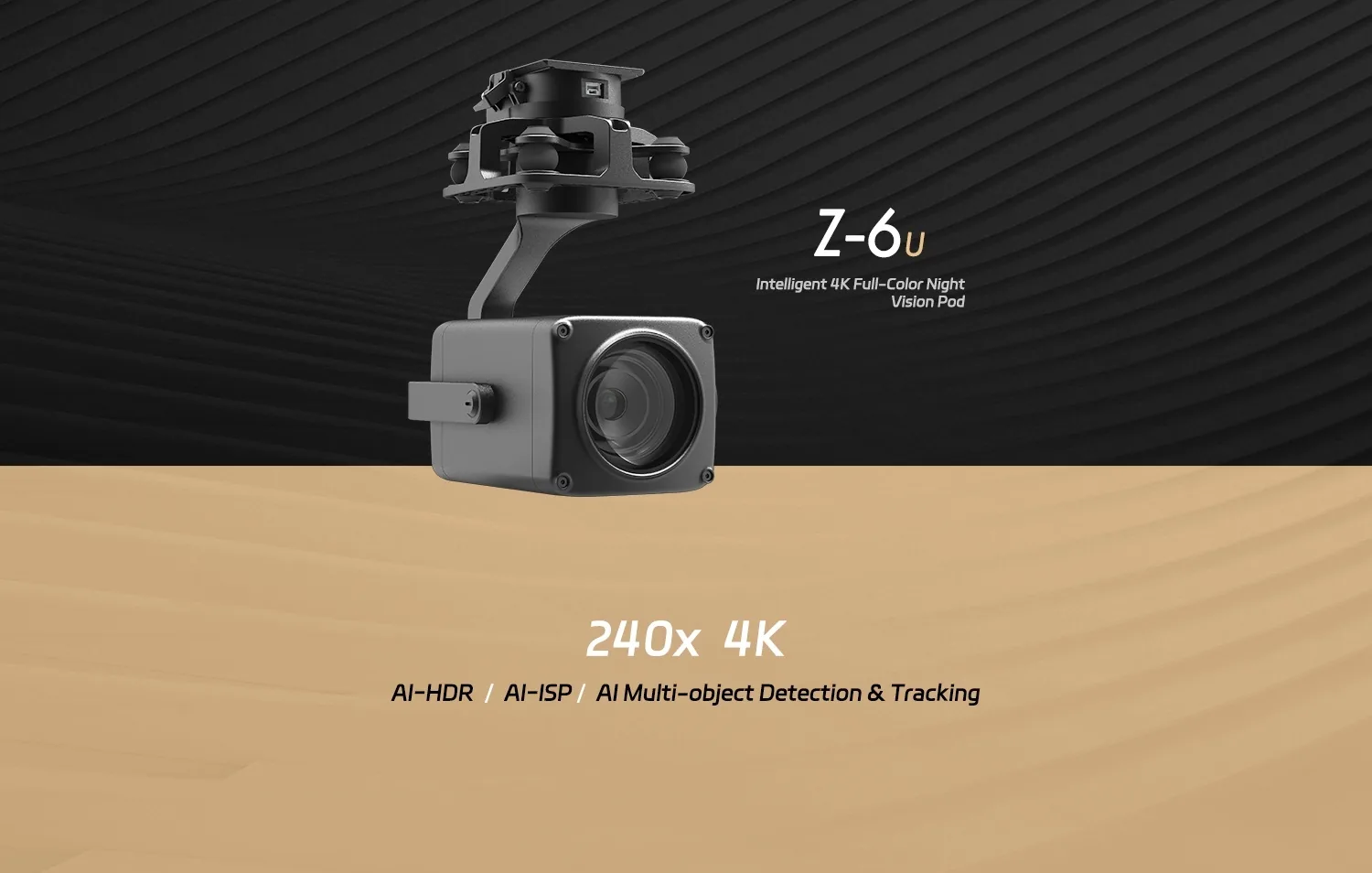

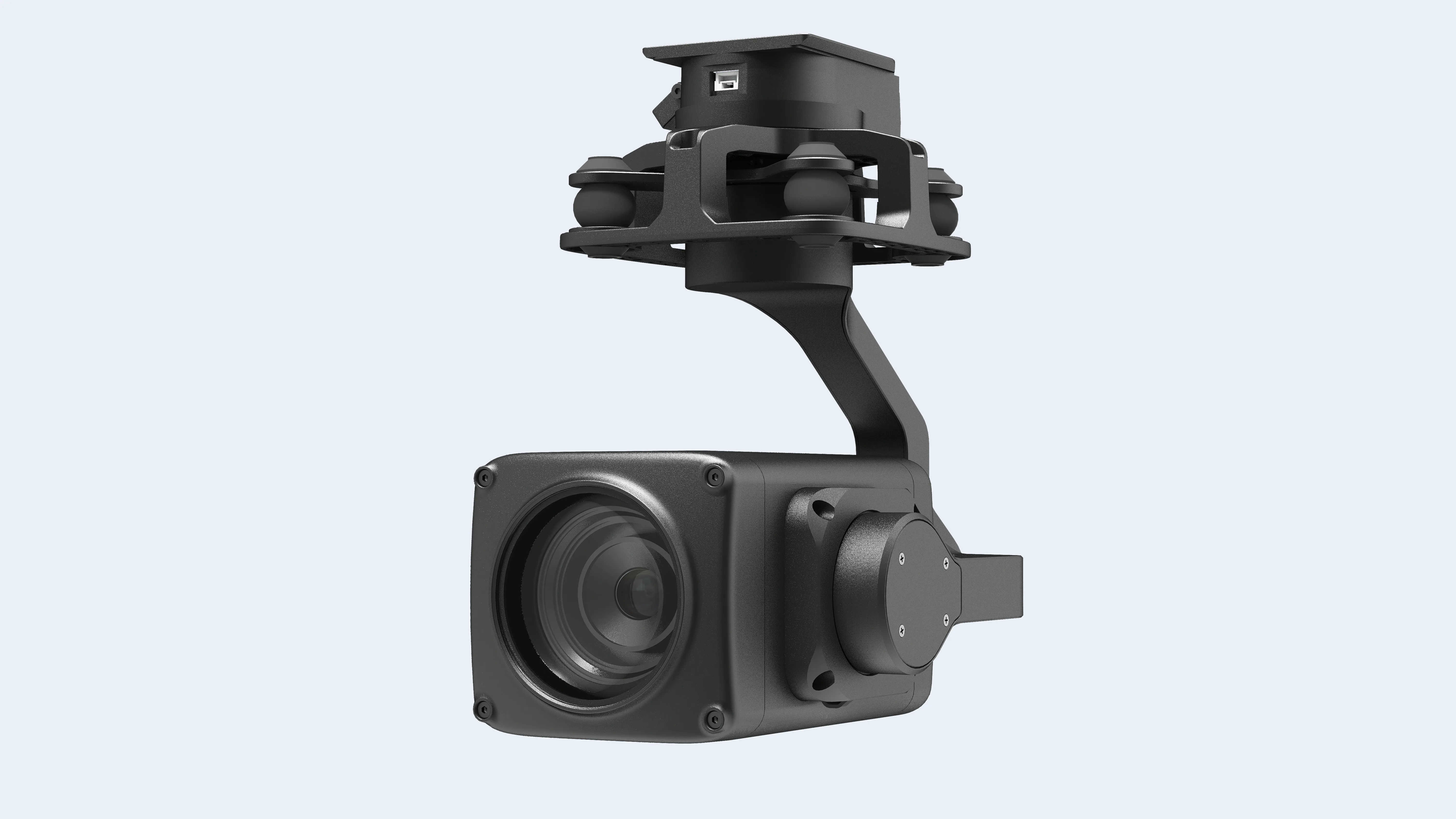

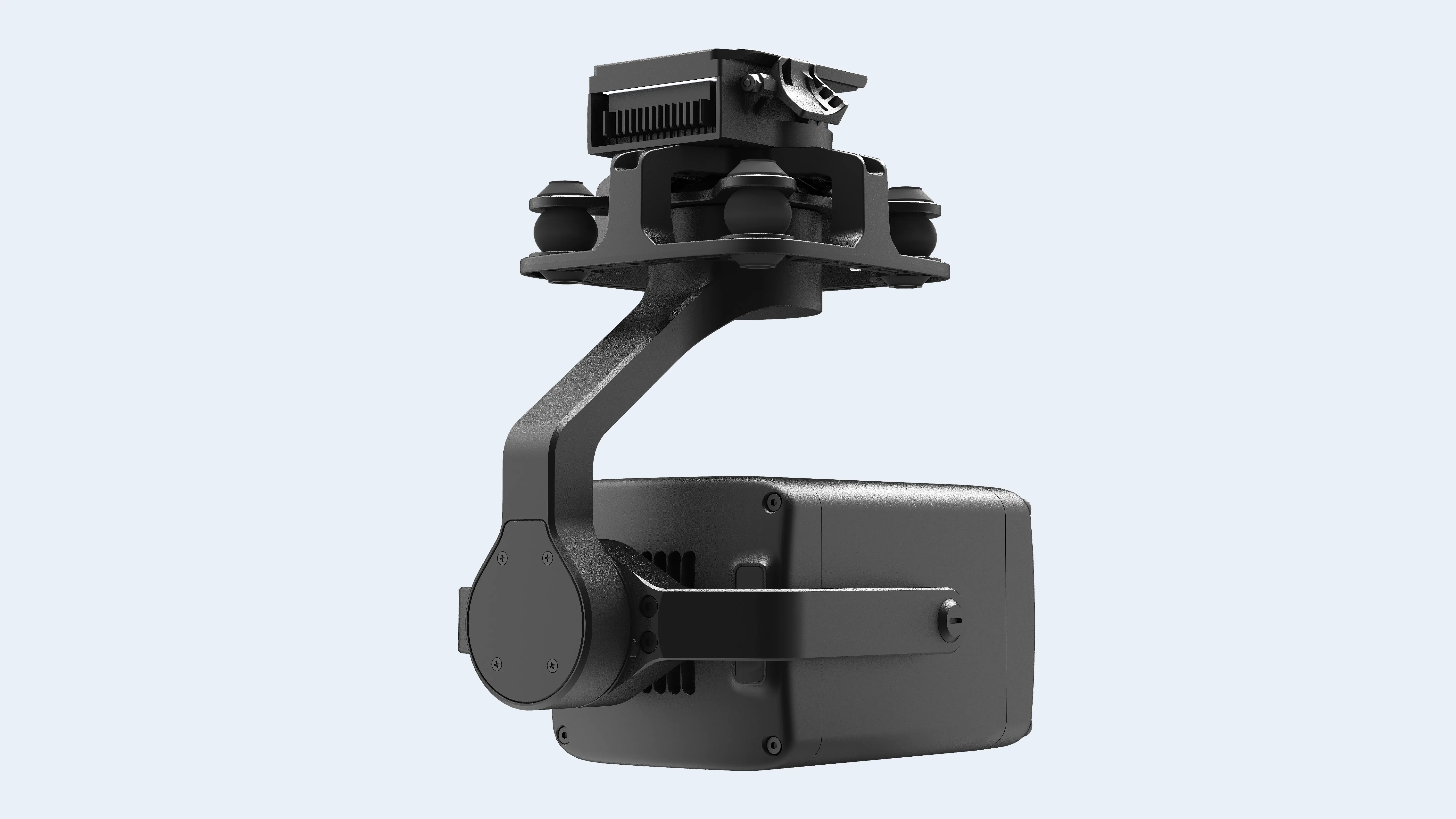

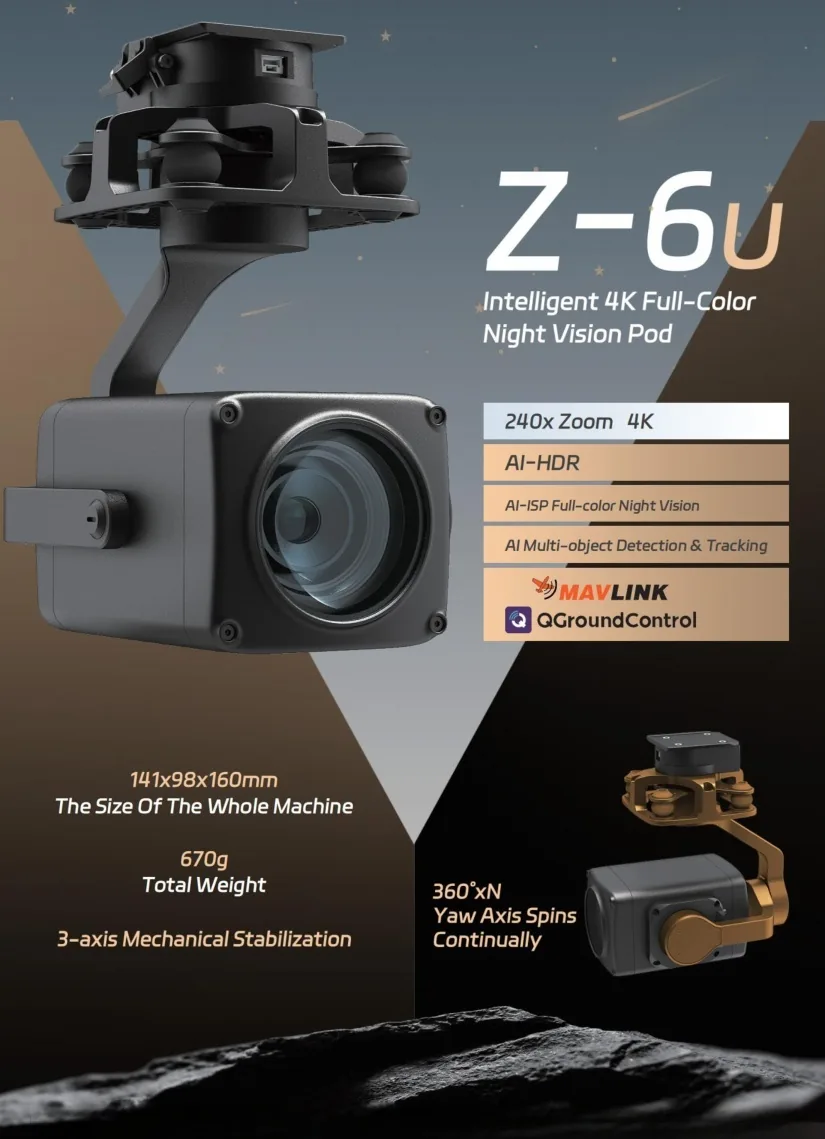

LX-6U 4K 240x Full-Color Night-Vision Gimbal Camera

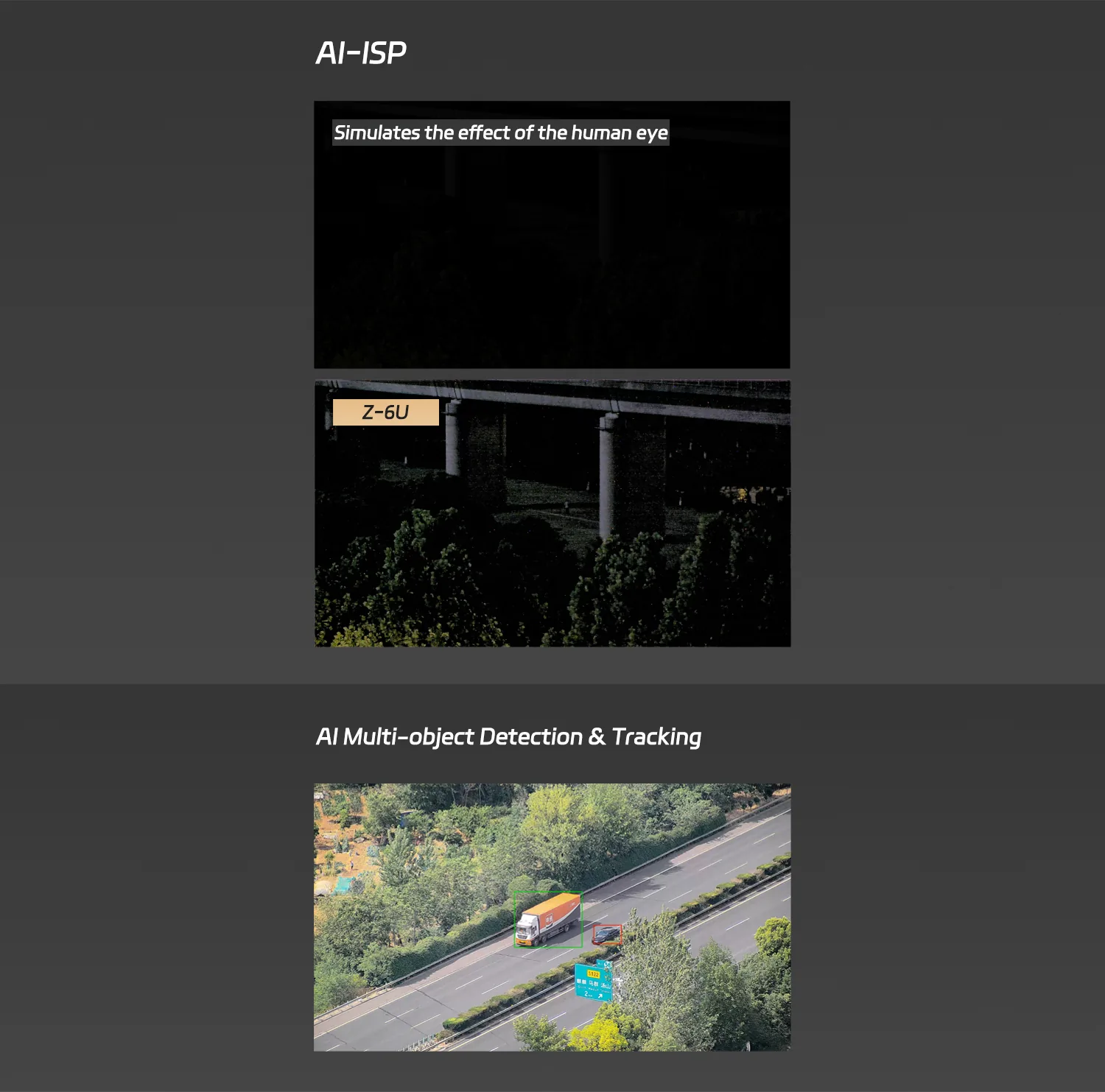

LX-6U is a 4K full-color night-vision UAV payload for ultra-long-range visible-light observation. It combines 240x hybrid zoom, AI-ISP full-color night vision, AI-HDR, AI target detection and tracking, MAVLink support and high-precision 3-axis stabilization.
Starting price
US$99,999
Rotate ∞°
DETAILS
Product Details
- 4K full-color night-vision payload for long-range UAV monitoring.

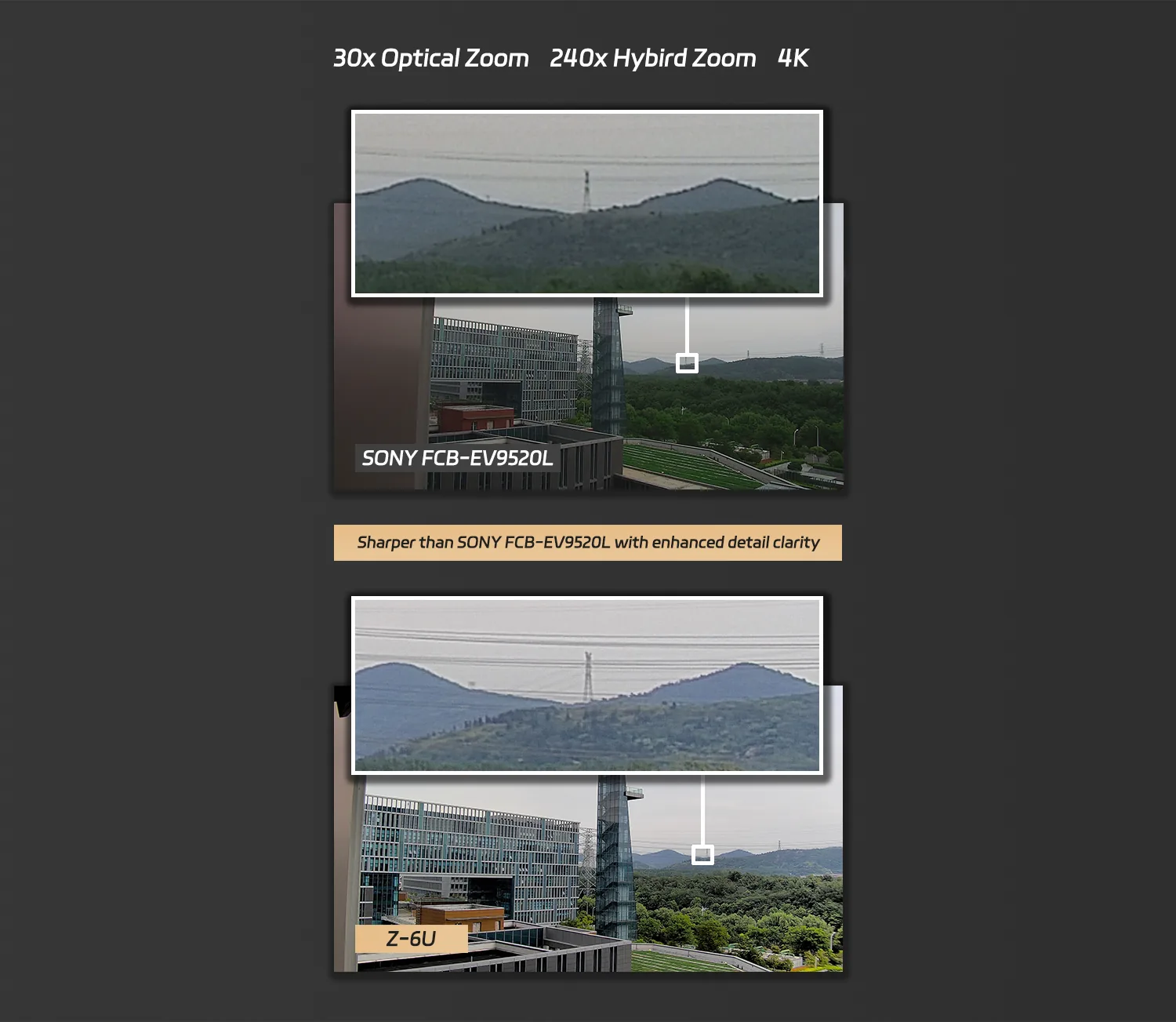

- 240x hybrid zoom supports detailed target observation from long distances.
- AI target detection and tracking supports continuous people and vehicle monitoring.

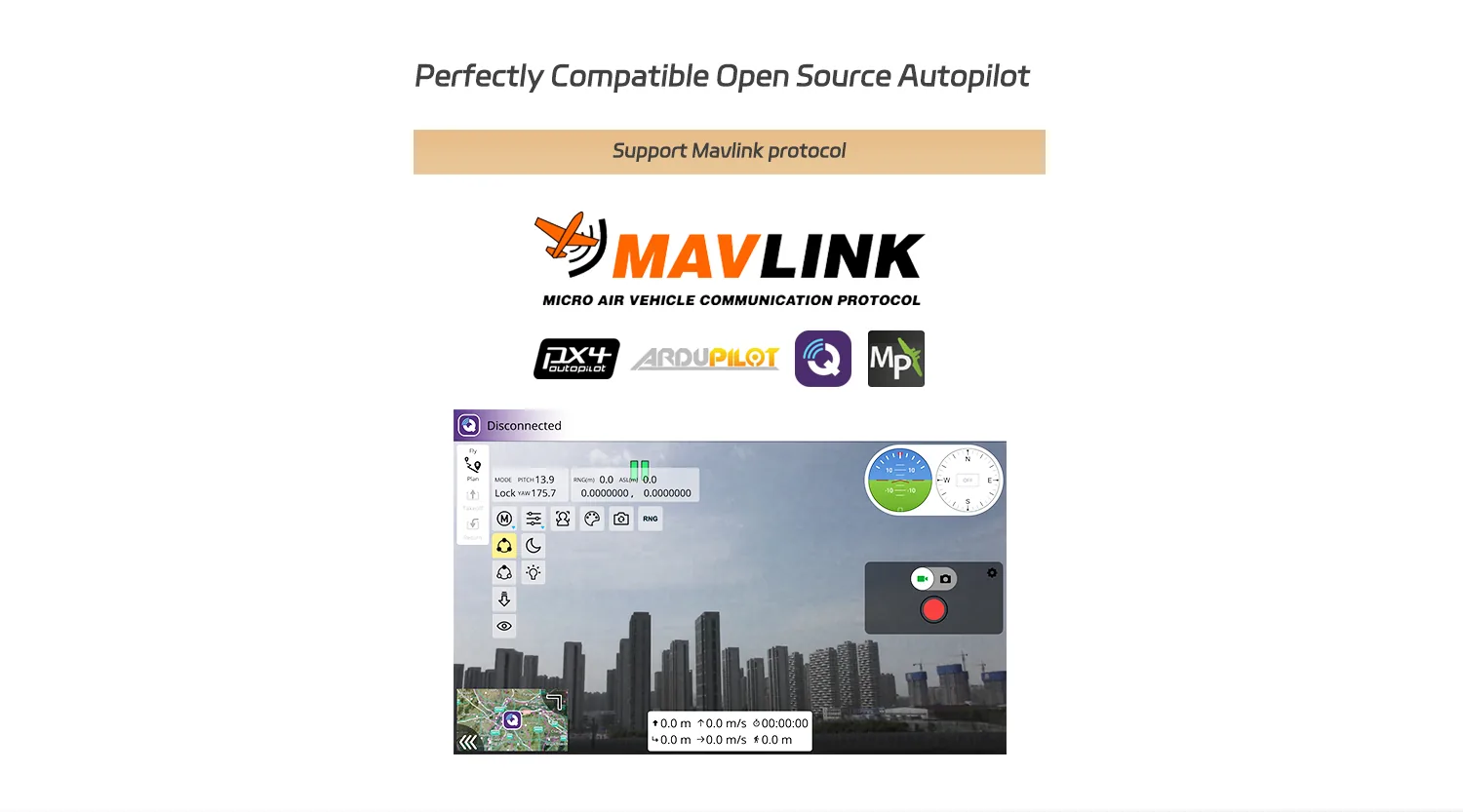

- MAVLink and data overlay features support professional UAV operation.
Applications
- Drone surveillance and patrol
- Public safety and emergency response
- Industrial inspection and security monitoring
- Search and rescue support
SPECIFICATIONS

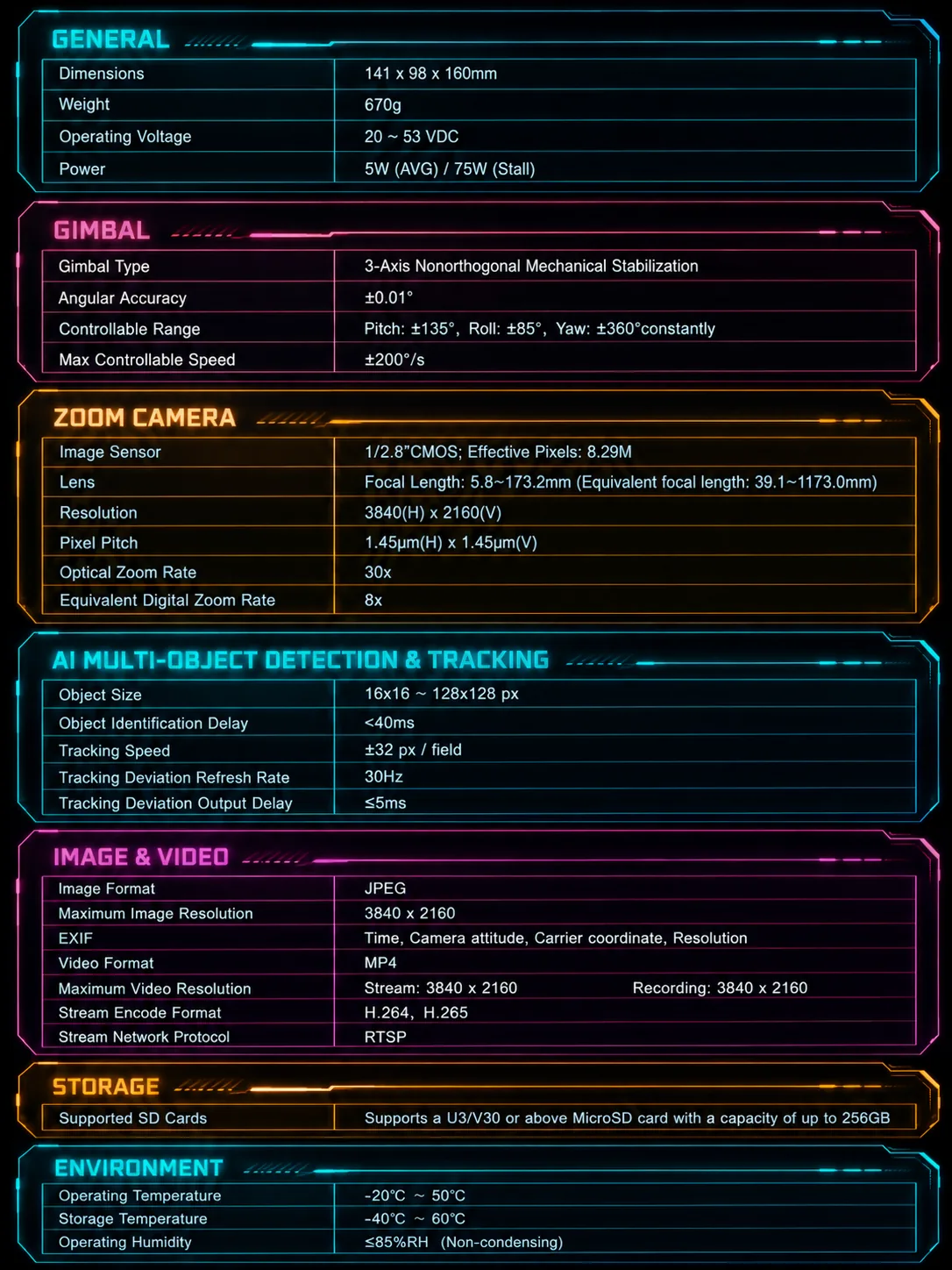

Specifications
| General | |
|---|---|
| Product Name | LX-6U |
| Dimensions | 141 x 98 x 160mm |
| Weight | 670g |
| Operating Voltage | 20 ~ 53 VDC |
| Power | 5W (AVG) / 75W (Stall) |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis Orthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: ±135°, Roll: ±85°, Yaw: ±360°constantly |
| Max Controllable Speed | ±200°/s |
| Zoom Camera | |
| Image Sensor | 1/2.8-inch CMOS; Effective Pixels: 8.29M |
| Focal Length | 5.8~173.2mm (Equivalent focal length: 39.1~1173.0mm) |
| Aperture | f/1.6~f/4.1 |
| Lens | HFOV: 51.5°~1.8° |
| VFOV | 30.4°~1.0° |
| DFOV | 57.9°~2.1° |
| Resolution | 3840(H) x 2160(V) |
| Pixel Pitch | 1.45μm(H) x 1.45μm(V) |
| Optical Zoom Rate | 30x |
| Equivalent Digital Zoom Rate | 8x |
| AI Multi-object Detection & Tracking | |
| Object Size | 16x16 ~ 128x128 px |
| Object Identification Delay | <40ms |
| Tracking Speed | ±32 px / field |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤5ms |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 3840 x 2160 |
| Video Format | MP4; Stream: 3840 x 2160 @30fps |
| Maximum Video Resolution | Recording: 3840 x 2160 @30fps |
| OSD | Time, Camera attitude, Carrier coordinate, Zoom rate, Storage status |
| EXIF | Time, Camera attitude, Carrier coordinate, Resolution |
| SEI | Refer to User Manual |
| Stream Encode Format | H.264, H.265 |
| Stream Network Protocol | RTSP |
| Storage | |
| Supported SD Cards | Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB |
| Environment | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance | Johnson Criteria Person: 59724m; Light vehicle: 183154m; Large vehicle: 390198m; EN62676-4:2015 Person: 5229m; Light vehicle: 6872m; Large vehicle: 14640m |
| Zoom Camera - Object Identification Distance | Johnson Criteria Person: 14931m; Light vehicle: 45789m; Large vehicle: 97549m; EN62676-4:2015 Person: 1046m; Light vehicle: 1374m; Large vehicle: 2928m |
| Zoom Camera - Object Verification Distance | Johnson Criteria Person: 7466m; Light vehicle: 22894m; Large vehicle: 48775m; EN62676-4:2015 Person: 523m; Light vehicle: 687m; Large vehicle: 1464m |
KEY TAKEAWAYS
- Weighs 670g at 141 x 98 x 160mm, which sets the airframe and mount it fits.
- 3-axis Orthogonal Mechanical Stabilization holds ±0.01° angular accuracy.
- Runs on 20 ~ 53 VDC drawing 5W (AVG) / 75W (Stall) — budget this against your platform's spare payload power.
- 3840(H) x 2160(V) through a HFOV: 51.5°~1.8° lens.
LX Series models compared
| Model | Weight | Dimensions | Resolution | Input voltage |
|---|---|---|---|---|
| LX-6C | 710g | 154 x 100 x 167mm | — | 20~53V |
| LX-6N | 670g | 141 x 98 x 160mm | 2688(H) x 1520(V) | 20 ~ 53 VDC |
| LX-6R | 716g | 141 x 98 x 160mm | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| LX-6U | 670g | 141 x 98 x 160mm | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| LX-8RB | 870g | 150 x 144 x 172mm | — | 20~53V |
| LX-8RC | 890g | 150 x 144 x 172mm | — | 20~53V |
| LX-9A | 1110g | 173 x 144 x 206mm | 640 x 512 | 20~53V |
| LX-9B | 1158g | 173 x 144 x 206mm | 2688(H) x 1520(V) | 20 ~ 53 VDC |
Frequently asked questions
How much does the LX-6U weigh?
LX-6U weighs 670g. Its dimensions are 141 x 98 x 160mm, so check both mass and envelope against your mount.
What power does the LX-6U need?
LX-6U accepts 20 ~ 53 VDC. Power draw is 5W (AVG) / 75W (Stall). Confirm your platform can supply this continuously, not just at peak.
How is the LX-6U stabilized?
LX-6U uses 3-axis Orthogonal Mechanical Stabilization. Published angular accuracy is ±0.01°.
What is the LX-6U controllable range?
Pitch: ±135°, Roll: ±85°, Yaw: ±360°constantly. This is the mechanical travel available to the operator or autopilot.
What resolution does the LX-6U capture?
3840(H) x 2160(V).
What temperature range does the LX-6U operate in?
-20℃~50℃. Outside this band the published specifications no longer apply.
