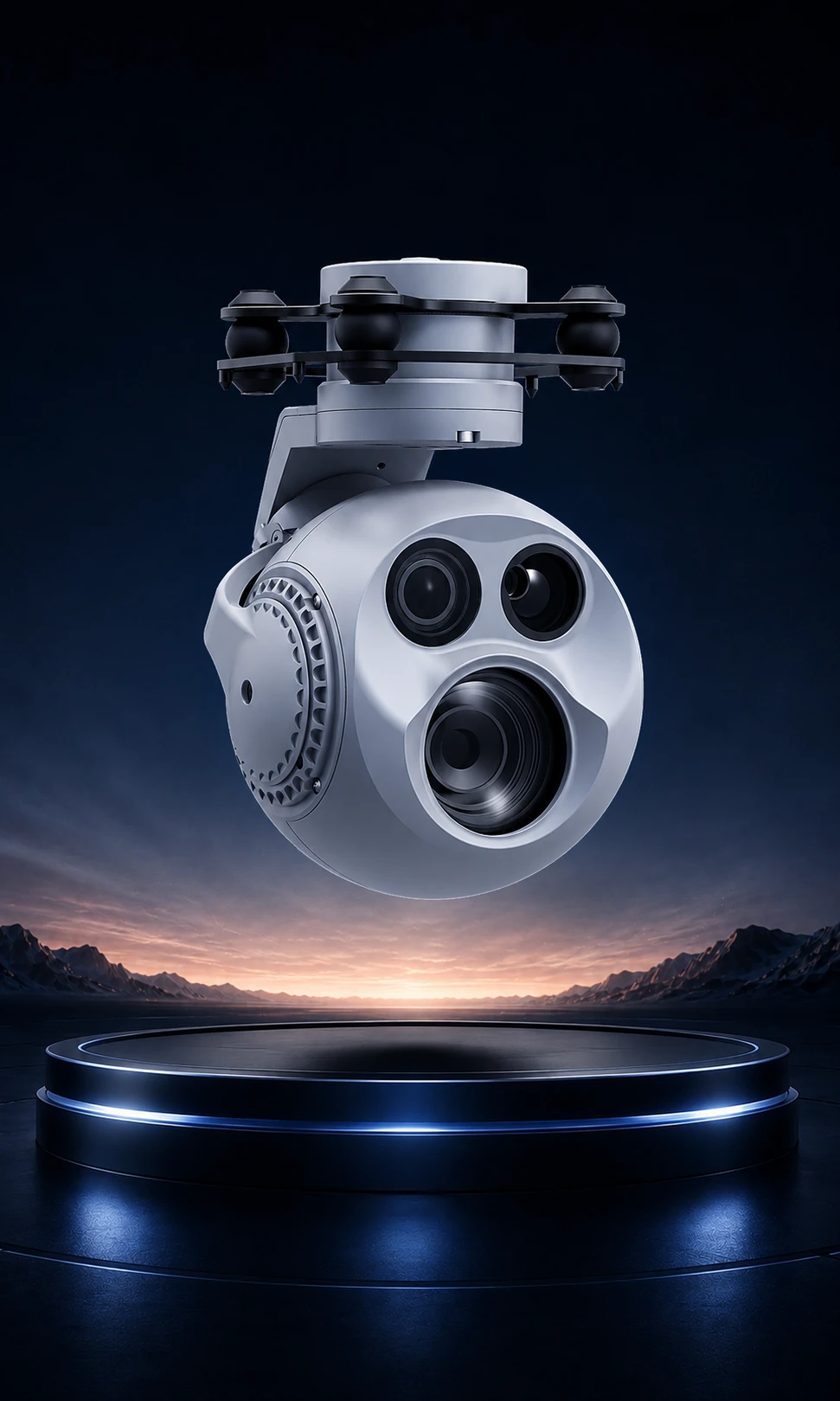

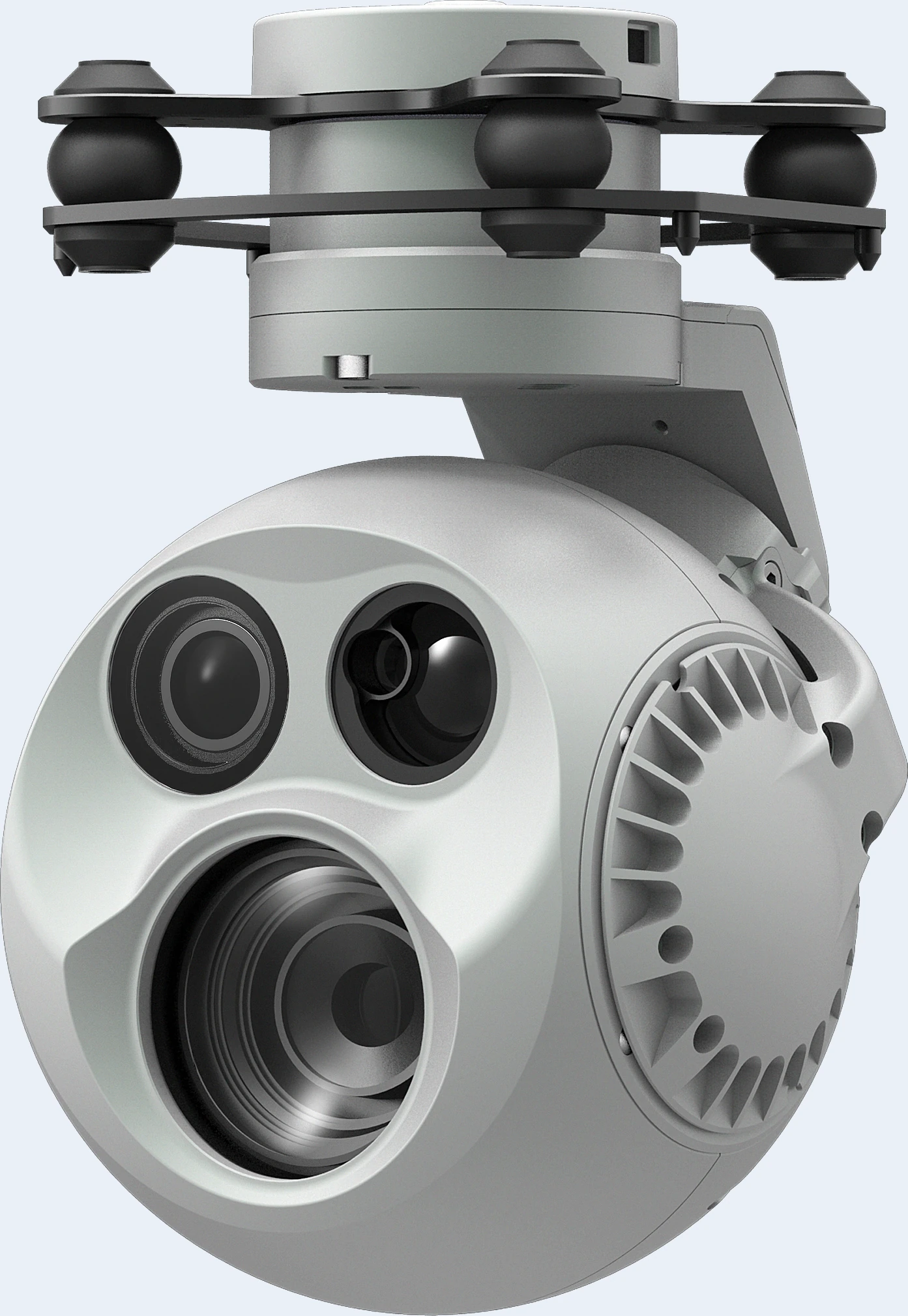

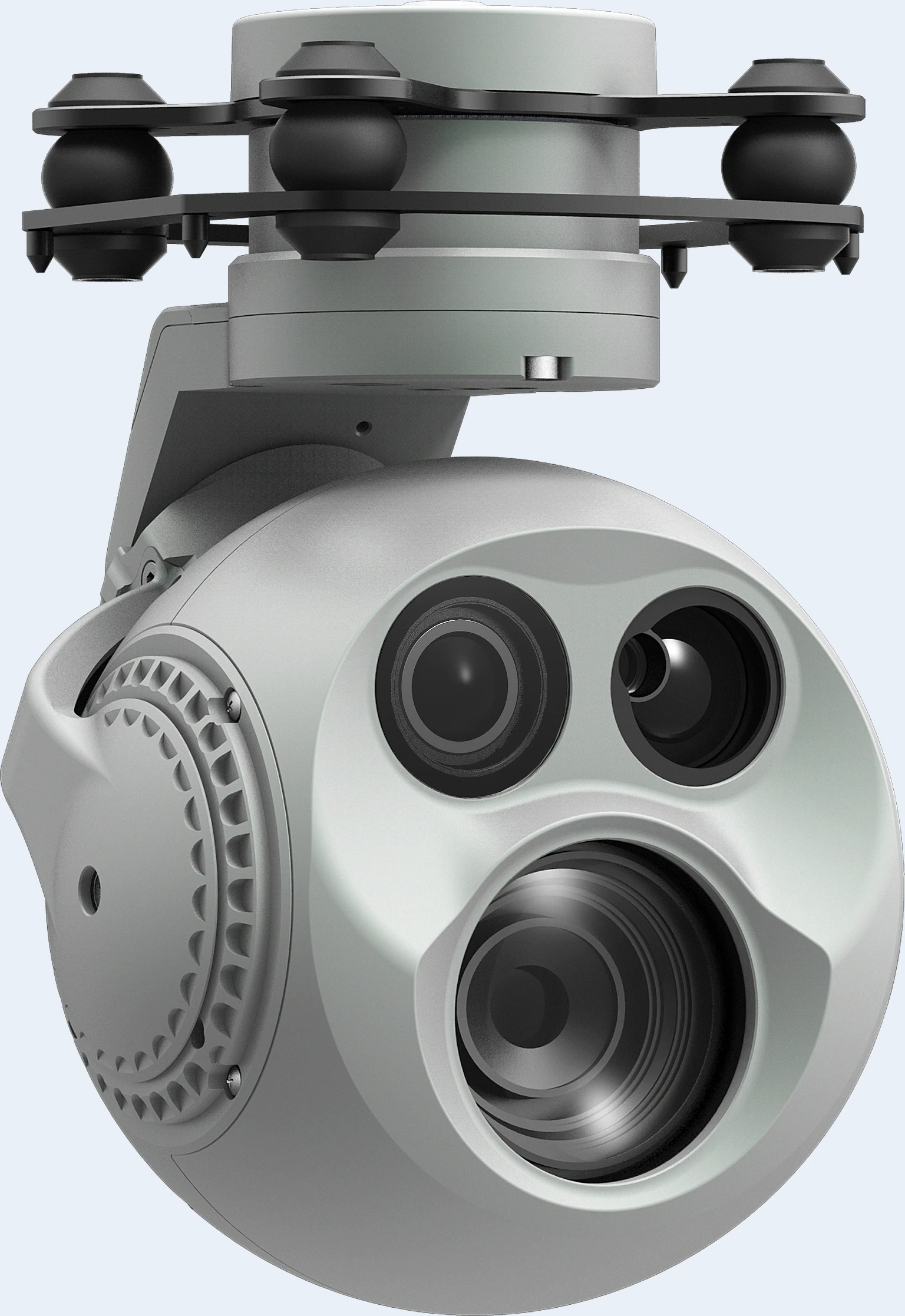

OP-90D 1200m Laser-Ranging Multi-Sensor EO Spherical Gimbal Camera
OP-90D is an intelligent EO multi-sensor spherical UAV payload for visible-light observation, target ranging and AI-assisted tracking. It combines a wide-angle camera, 30x hybrid zoom camera, laser range finder, AI target detection and tracking, MAVLink support and high-precision 3-axis stabilization.
Starting price
US$2,630
Rotate ∞°
DETAILS
Product Details
- EO multi-sensor payload for visible-light surveillance, inspection and target positioning.
- 30x hybrid zoom supports detailed observation from UAV standoff distances.
- Laser range finder improves target distance awareness.

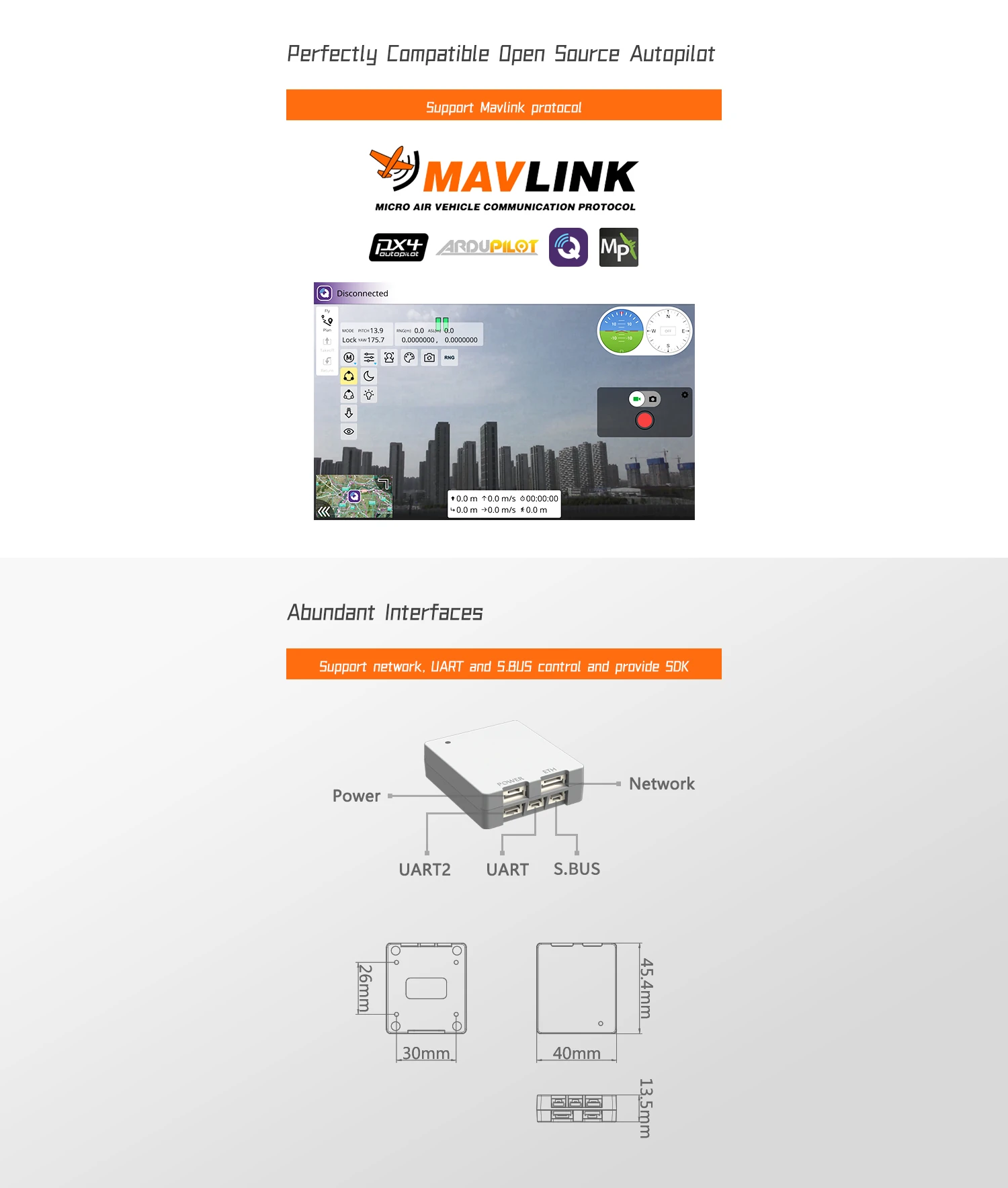

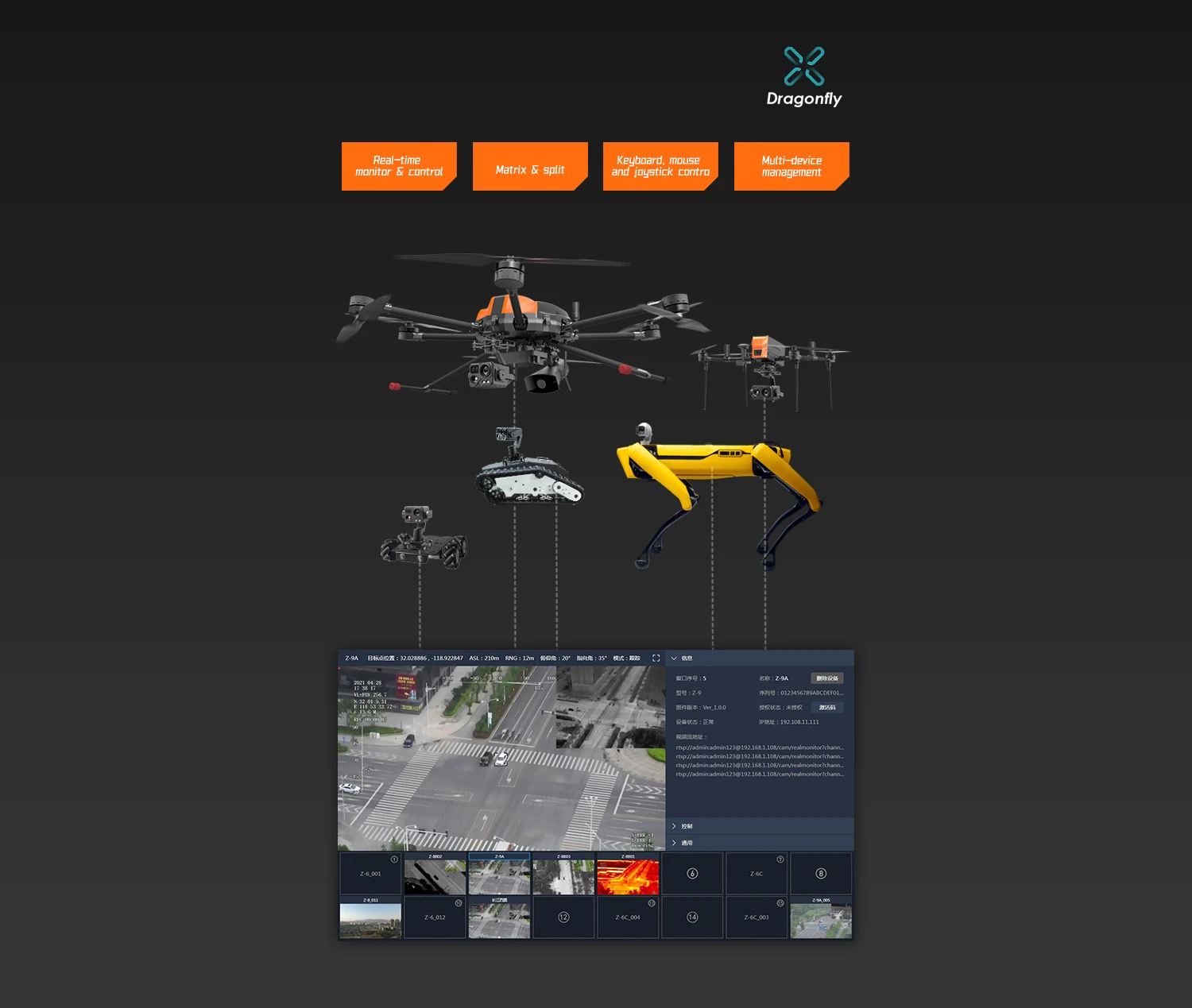

- MAVLink and multiple control interfaces support UAV integration.
Applications
- Target ranging and positioning
- Public safety and perimeter security
- Infrastructure inspection
- Search and rescue support
SPECIFICATIONS
Specifications
| General | |
|---|---|
| Product Name | OP-90D |
| Dimensions | Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm |
| Weight | Pod: 576g; GCU: 18.6g |
| Operating Voltage | 14 ~ 53 VDC |
| Power | Pod: 10.5W (AVG, ranging off) / 55W (Stall, ranging on); GCU: 1.8W |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: -150°~+50°, Yaw: ±360°constantly |
| Max Controllable Speed | Pitch:±200°/s, Yaw: ±200°/s |
| Zoom Camera | |
| Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
| Focal Length | 4.7~47mm |
| HFOV | 61.3°~6.8° |
| VFOV | 36.9°~3.9° |
| DFOV | 68.4°~7.8° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
| Optical Zoom Rate | 10x |
| Equivalent Digital Zoom Rate | 3x |
| Min Illumination | Night Vision off: 0.01Lux / F1.6; Night Vision on: 0.0015Lux / F1.6 |
| Wide Camera | |
| Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
| Focal Length | 5.1mm |
| HFOV | 71.4° |
| VFOV | 44.0° |
| DFOV | 79.6° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
| Laser Range Finder | |
| Wavelength | 905nm |
| Max Laser Power | 1mW |
| Beam Angle | 3.5mrad |
| Beam Diameter | 0.35m @ 100m |
| Laser Safety Class | 1M (IEC 60825-1:2014) |
| Measurement Accuracy | ±1.0m |
| Measurement Range | 5-1200m (ϕ12m vertical surface with 20% reflectivity) |
| AI Multi-object Detection & Tracking | |
| Object Size | 16x16 ~ 128x128 px |
| Object Identification Delay | <40ms |
| Tracking Speed | ±32 px / field |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤5ms |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinate |
| Video Format | MP4 |
| Maximum Video Resolution | 1080P@25fps |
| Stream Encode Format | H.264, H.265 |
| Stream Network Protocol | RTSP |
| Storage | |
| Supported SD Cards | Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB |
| Support File System | HDD-FAT32 |
| Environment | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance | Johnson Criteria Person: 8103m; Light vehicle: 24851m; Large vehicle: 52943m; EN62676-4:2015 Person: 709m; Light vehicle: 932m; Large vehicle: 1986m |
| Zoom Camera - Object Identification Distance | Johnson Criteria Person: 2026m; Light vehicle: 6213m; Large vehicle: 13236m; EN62676-4:2015 Person: 142m; Light vehicle: 187m; Large vehicle: 397m |
| Zoom Camera - Object Verification Distance | Johnson Criteria Person: 1013m; Light vehicle: 3106m; Large vehicle: 6618m; EN62676-4:2015 Person: 71m; Light vehicle: 93m; Large vehicle: 199m |
KEY TAKEAWAYS
- Weighs Pod: 576g; GCU: 18.6g at Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm, which sets the airframe and mount it fits.
- 3-axis Nonorthogonal Mechanical Stabilization holds ±0.01° angular accuracy.
- Runs on 14 ~ 53 VDC drawing Pod: 10.5W (AVG, ranging off) / 55W (Stall, ranging on); GCU: 1.8W — budget this against your platform's spare payload power.
- Imaging resolution 1920 x 1080.
OP Series models compared
| Model | Weight | Dimensions | Stabilization | Angular accuracy | Resolution | Input voltage |
|---|---|---|---|---|---|---|
| OP-125A | 1055g | 142 x 125 x 187mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 2688(H) x 1520(V) | 20 ~ 53 VDC |
| OP-80A | Pod: 429g; GCU: 18.6g | Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-80N | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920(H) x 1080(V) | 20 ~ 53 VDC |
| OP-80P | Pod: 405g; GCU: 18.6g | Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840 x 2160 | 14 ~ 53 VDC |
| OP-80R | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-80T | 430g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-80U | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-90A | Pod: 608g; GCU: 18.6g | Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-90D | Pod: 576g; GCU: 18.6g | Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-90N | 620g | 96.4 x 96 x 147mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920(H) x 1080(V) | 20 ~ 53 VDC |
| OP-90P | 620g | 96.4 x 96 x 147mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
