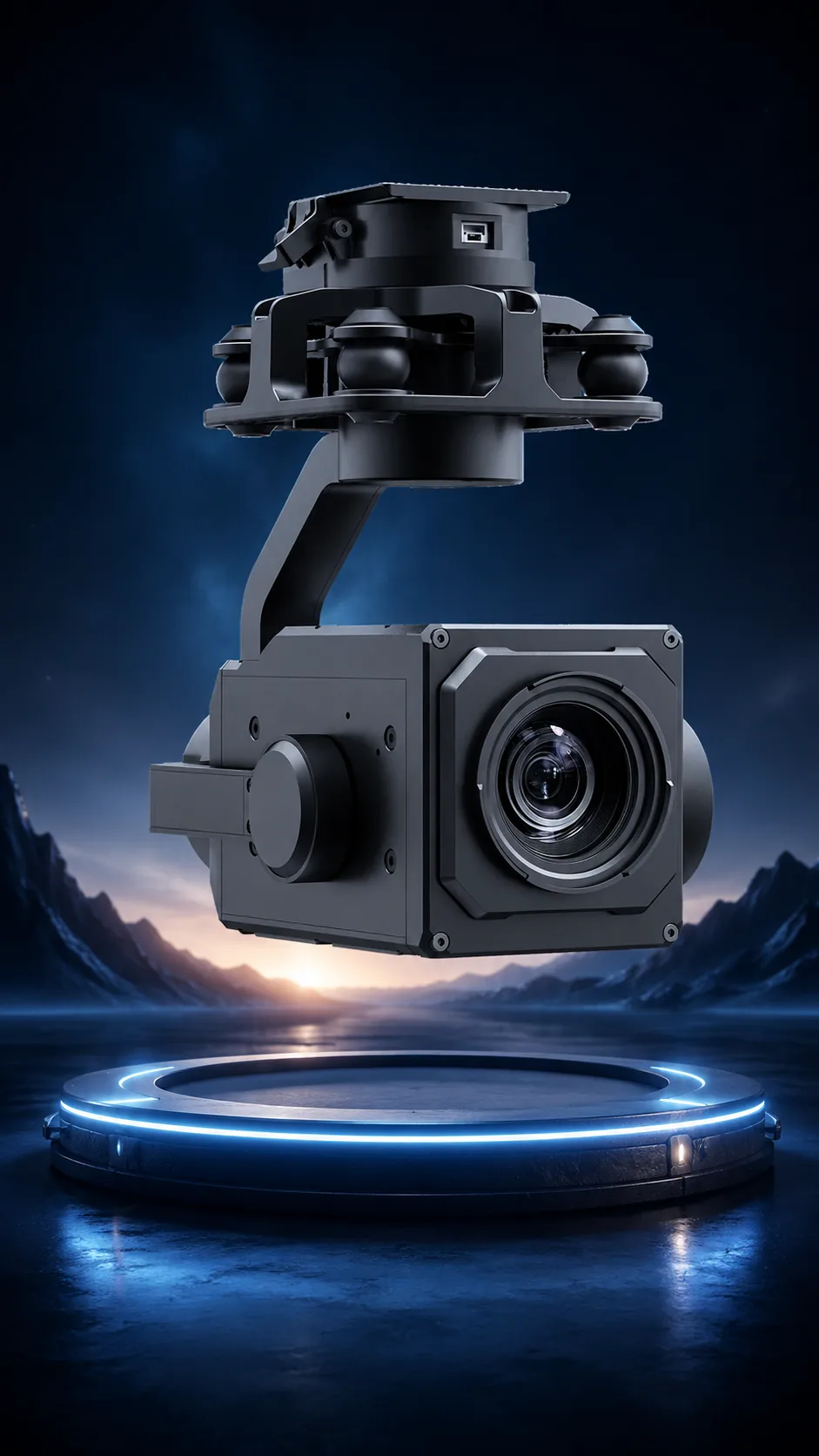

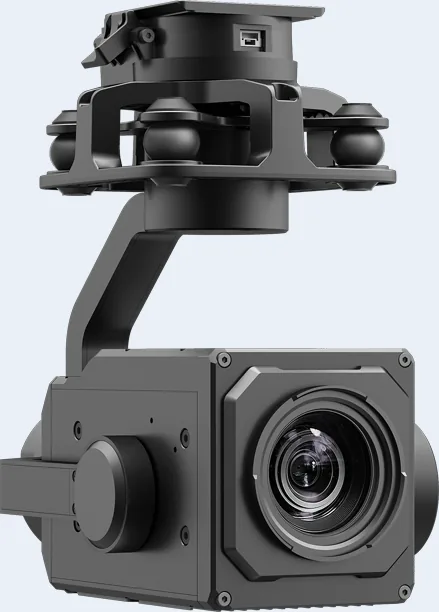

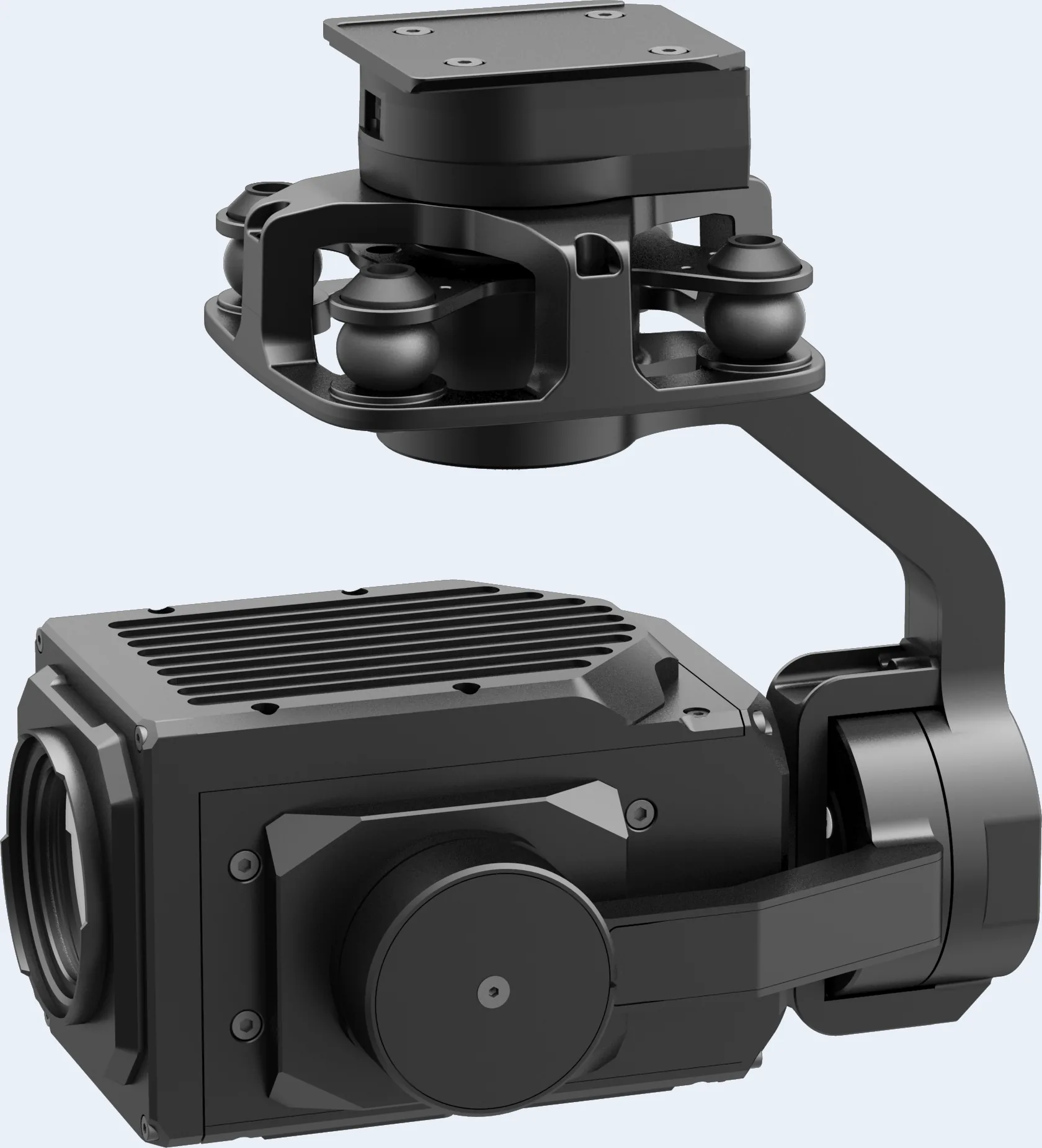

LX-6C 1500x High-Magnification Visible-Light Gimbal Camera
LX-6C is a high-magnification visible-light UAV gimbal camera for long-range observation and detailed inspection. It uses a 20.35 MP sensor with 20x optical zoom, 75x digital zoom and up to 1500x hybrid zoom, plus starlight low-light imaging and 3-axis stabilization.
Starting price
US$3,440
Rotate ∞°
DETAILS
Product Details
- High-magnification visible-light payload for long-range inspection and surveillance.
- 1500x hybrid zoom supports detailed target review from long standoff distances.
- Starlight imaging improves low-light visible-light operation.

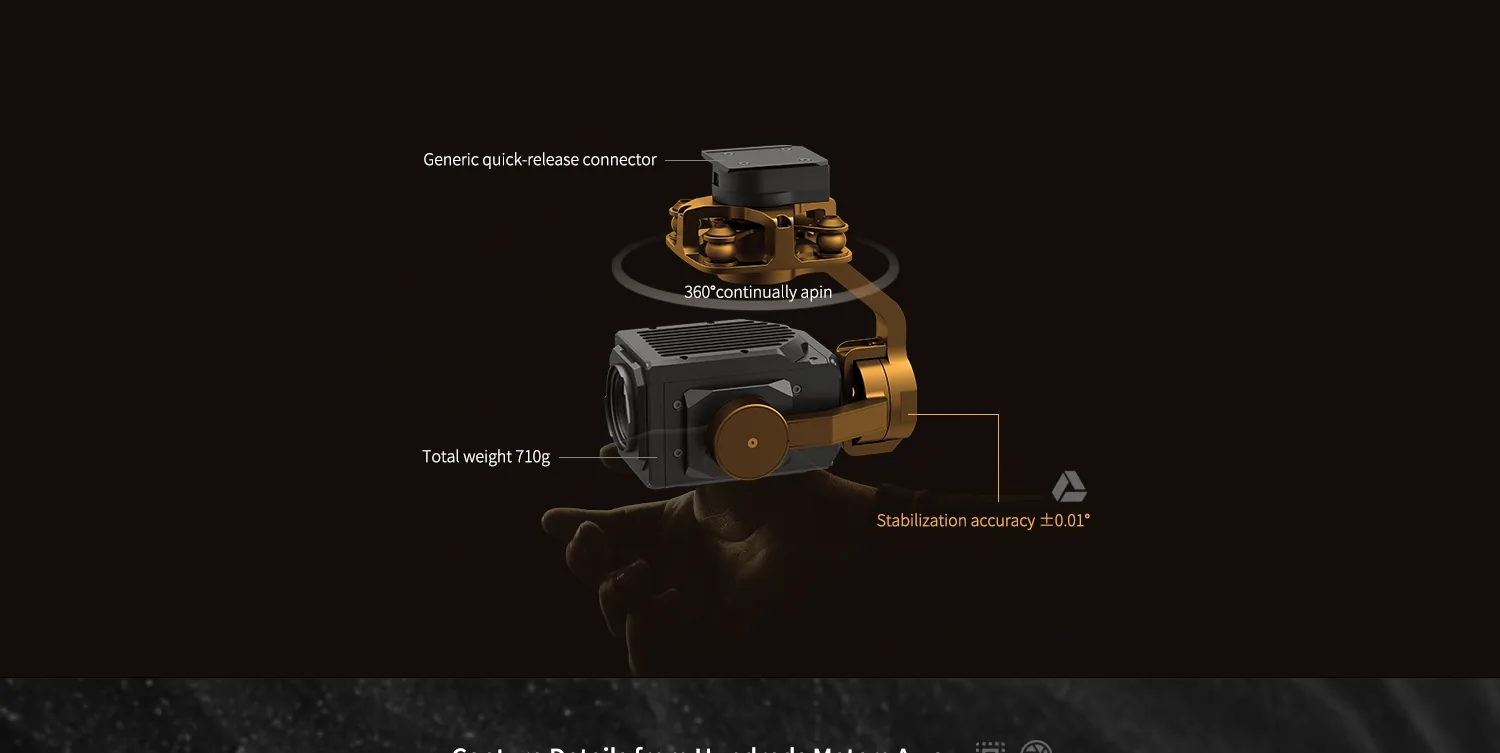

- Quick-release integration supports efficient UAV deployment.
Applications
- Long-range visible-light inspection
- Infrastructure and perimeter monitoring
- Public safety observation
- Security patrol
SPECIFICATIONS

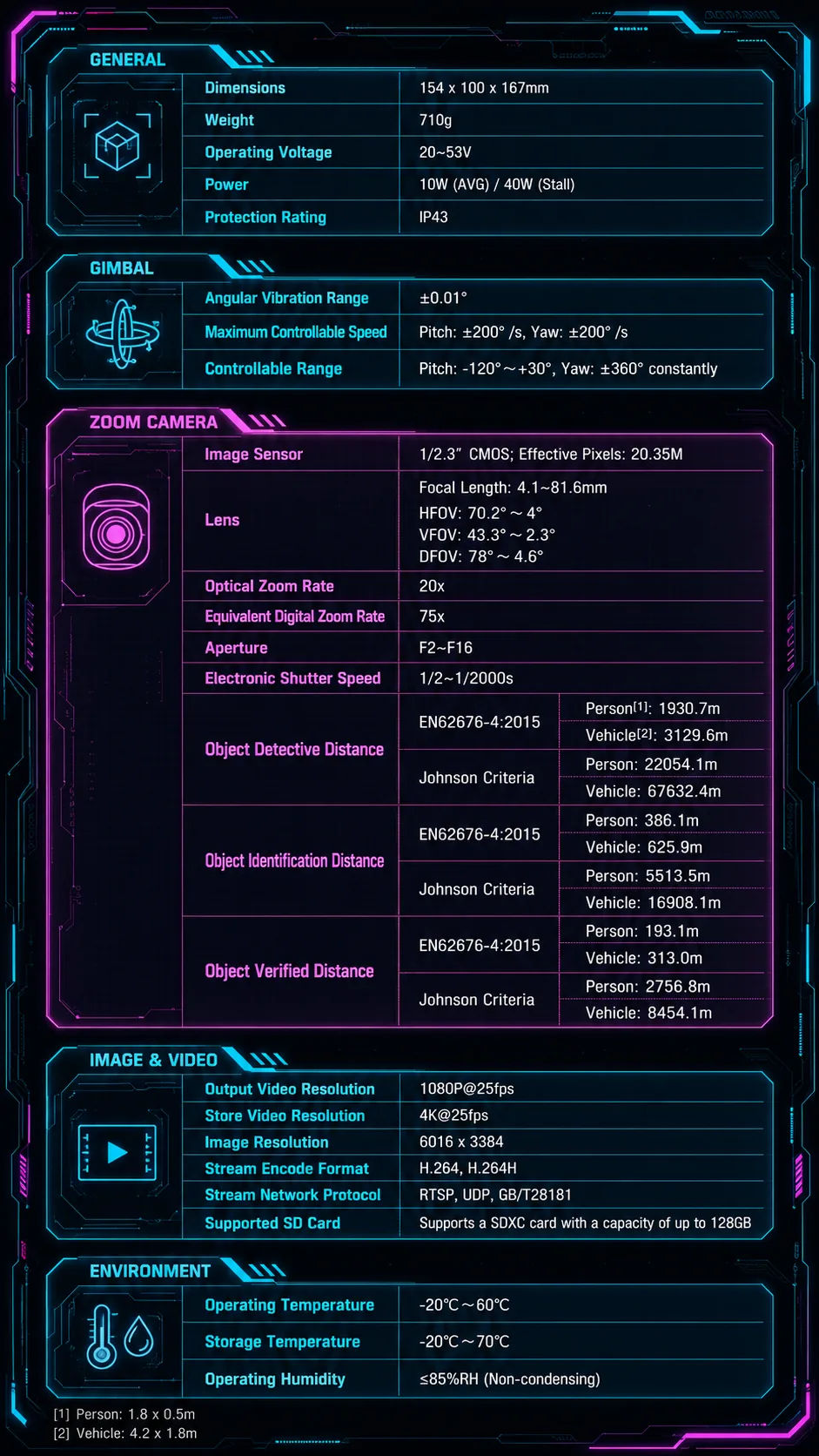

Specifications
| General | |
|---|---|
| Product Name | LX-6C |

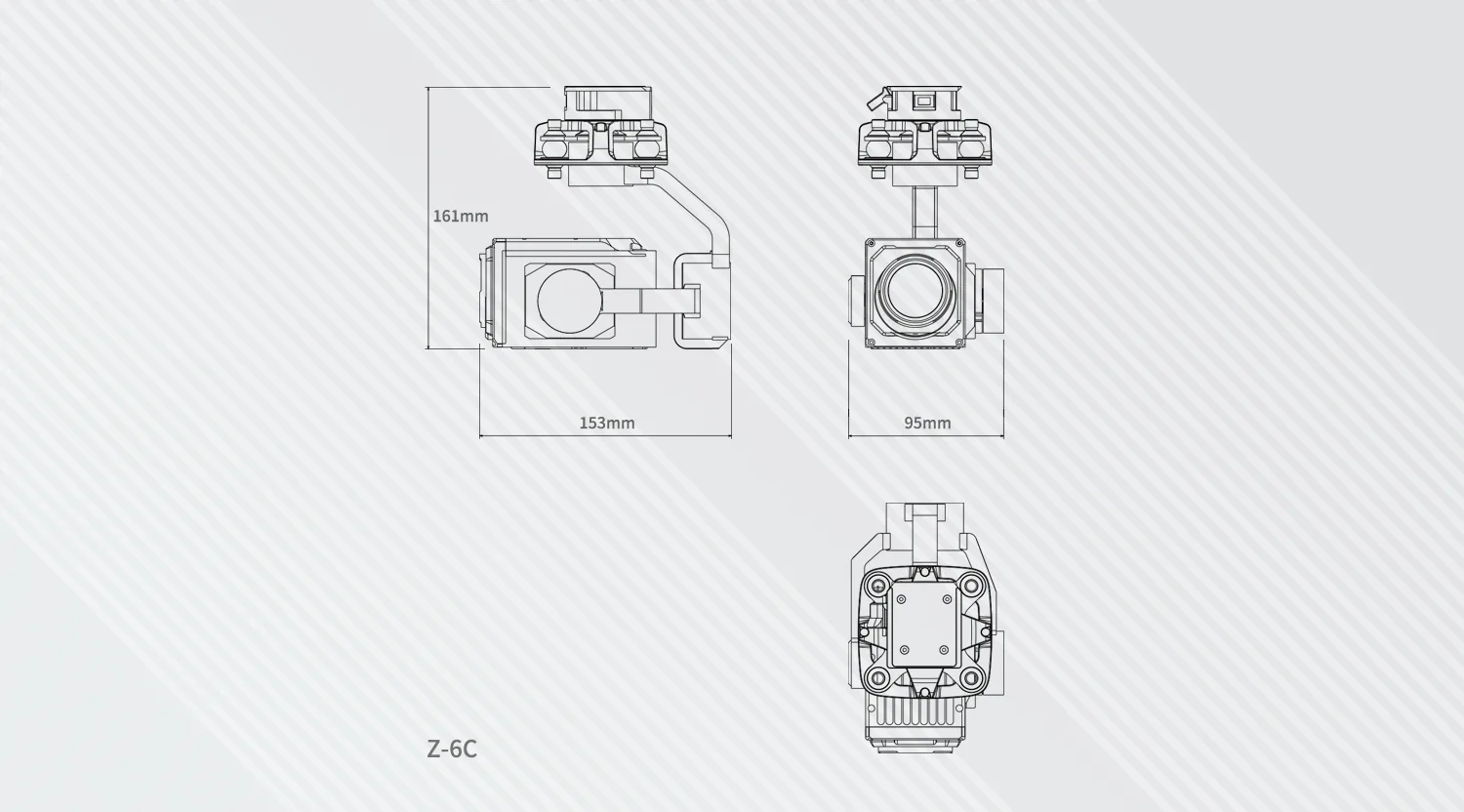

| Dimensions | 154 x 100 x 167mm |
| Weight | 710g |
| Operating Voltage | 20~53V |
| Power | 10W (AVG) / 40W (Stall) |
| Protection Rating | IP43 |
| Gimbal | |
| Angular Vibration Range | ±0.01° |
| Maximum Controllable Speed | Pitch: ±200°/s, Yaw: ±200°/s |
| Controllable Range | Pitch: -120° to +30°, Yaw: ±360° constantly |
| Zoom Camera | |
| Image Sensor | 1/2.3-inch CMOS; Effective Pixels: 20.35M |
| Focal Length | 4.1~81.6mm |
| HFOV | 70.2° to 4° |
| VFOV | 43.3° to 2.3° |
| DFOV | 78° to 4.6° |
| Optical Zoom Rate | 20x |
| Equivalent Digital Zoom Rate | 75x |
| Hybrid Zoom Rate | 1500x |
| Aperture | F2~F16 |
| Electronic Shutter Speed | 1/2~1/2000s |
| Image & Video | |
| Output Video Resolution | 1080P@25fps |
| Stored Video Resolution | 4K@25fps |
| Image Resolution | 6016 x 3384 |
| Stream Encode Format | H.264, H.264H |
| Stream Network Protocol | RTSP, UDP, GB/T28181 |
| Supported SD Card | SDXC card up to 128GB |
| Environment | |
| Operating Temperature | -20° C to 60° C |
| Storage Temperature | -20° C to 70° C |
| Operating Humidity | <=85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance (EN62676-4:2015) | Person: 1930.7m; Vehicle: 3129.6m |
| Zoom Camera - Object Detection Distance (Johnson Criteria) | Person: 22054.1m; Vehicle: 67632.4m |
| Zoom Camera - Object Identification Distance (EN62676-4:2015) | Person: 386.1m; Vehicle: 625.9m |
| Zoom Camera - Object Identification Distance (Johnson Criteria) | Person: 5513.5m; Vehicle: 16908.1m |
| Zoom Camera - Object Verification Distance (EN62676-4:2015) | Person: 193.1m; Vehicle: 313.0m |
| Zoom Camera - Object Verification Distance (Johnson Criteria) | Person: 2756.8m; Vehicle: 8454.1m |
KEY TAKEAWAYS
- Weighs 710g at 154 x 100 x 167mm, which sets the airframe and mount it fits.
- Runs on 20~53V drawing 10W (AVG) / 40W (Stall) — budget this against your platform's spare payload power.
- Controllable range: Pitch: -120° to +30°, Yaw: ±360° constantly.
LX Series models compared
| Model | Weight | Dimensions | Resolution | Input voltage |
|---|---|---|---|---|
| LX-6C | 710g | 154 x 100 x 167mm | — | 20~53V |
| LX-6N | 670g | 141 x 98 x 160mm | 2688(H) x 1520(V) | 20 ~ 53 VDC |
| LX-6R | 716g | 141 x 98 x 160mm | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| LX-6U | 670g | 141 x 98 x 160mm | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| LX-8RB | 870g | 150 x 144 x 172mm | — | 20~53V |
| LX-8RC | 890g | 150 x 144 x 172mm | — | 20~53V |
| LX-9A | 1110g | 173 x 144 x 206mm | 640 x 512 | 20~53V |
| LX-9B | 1158g | 173 x 144 x 206mm | 2688(H) x 1520(V) | 20 ~ 53 VDC |
Frequently asked questions
How much does the LX-6C weigh?
LX-6C weighs 710g. Its dimensions are 154 x 100 x 167mm, so check both mass and envelope against your mount.
What power does the LX-6C need?
LX-6C accepts 20~53V. Power draw is 10W (AVG) / 40W (Stall). Confirm your platform can supply this continuously, not just at peak.
What is the LX-6C controllable range?
Pitch: -120° to +30°, Yaw: ±360° constantly. This is the mechanical travel available to the operator or autopilot.
What temperature range does the LX-6C operate in?
-20° C to 60° C. Outside this band the published specifications no longer apply.
