AX-20S O3 17g Single-Axis FPV Gimbal

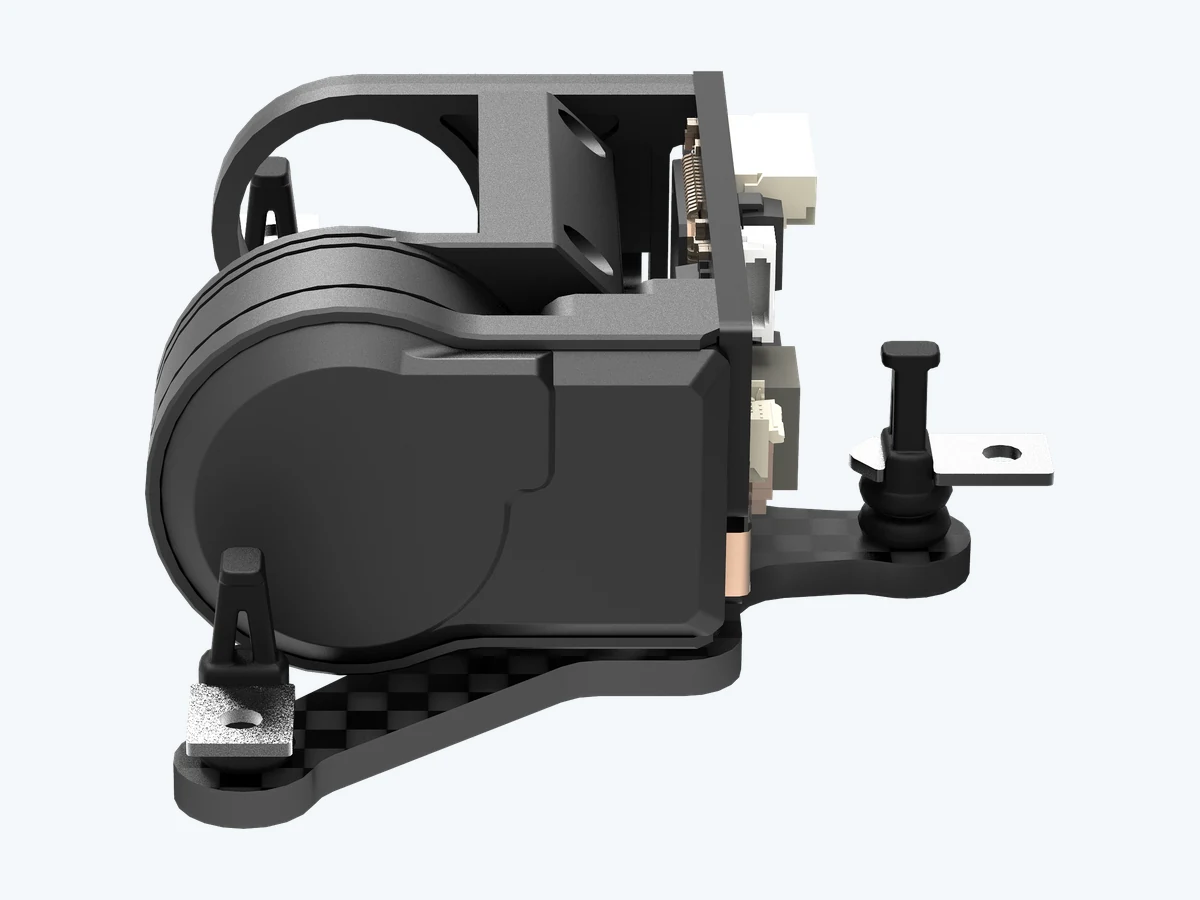

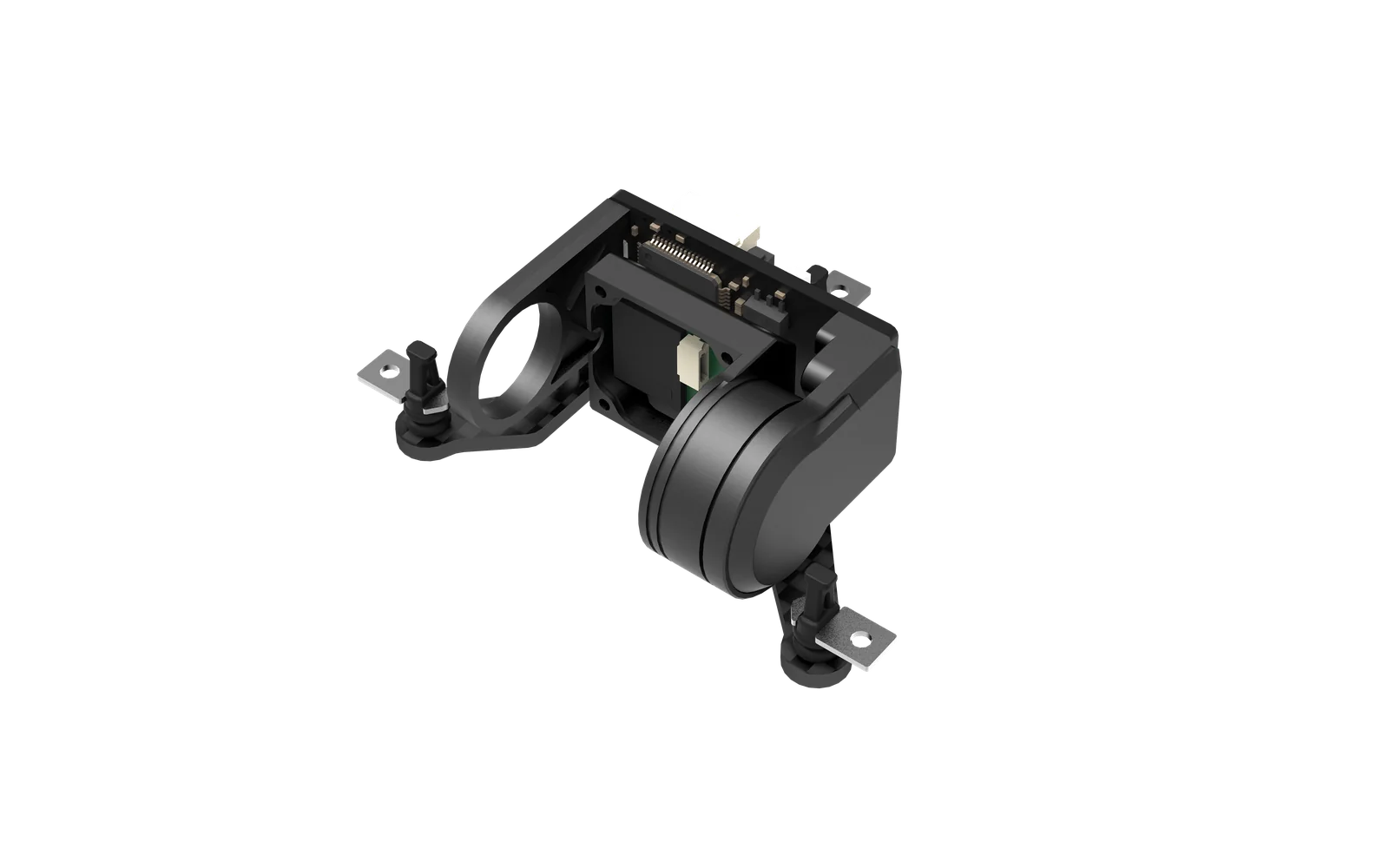

AX-20S O3 is a single-axis FPV gimbal variant configured for DJI O3 digital FPV camera system. It keeps the AX-20S platform's single-axis mechanical stabilization, head tracking support, UART/MAVLink, S.BUS, CRSF and PWM control, plus downward/upward mounting support where applicable.
DETAILS
Product Details

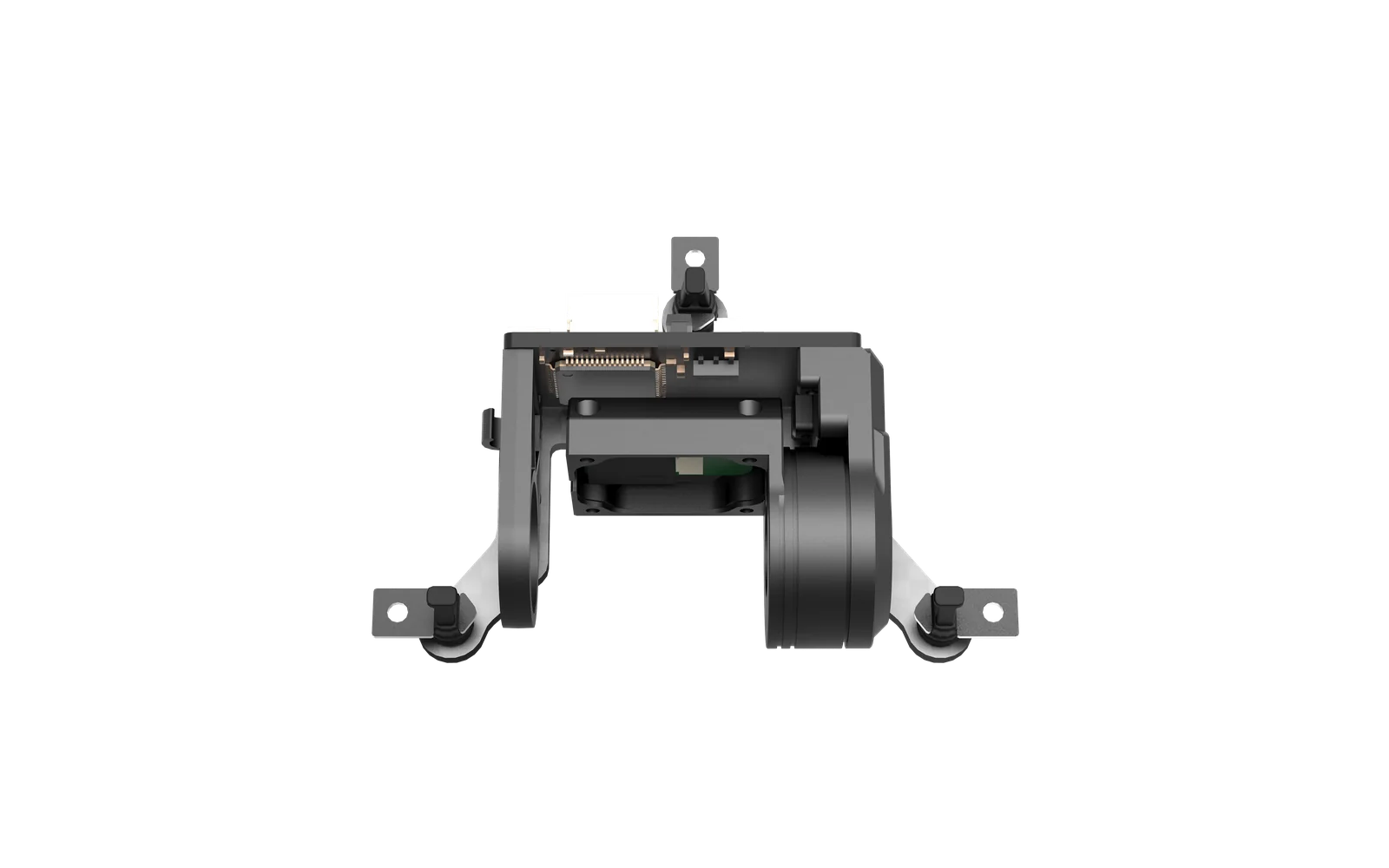

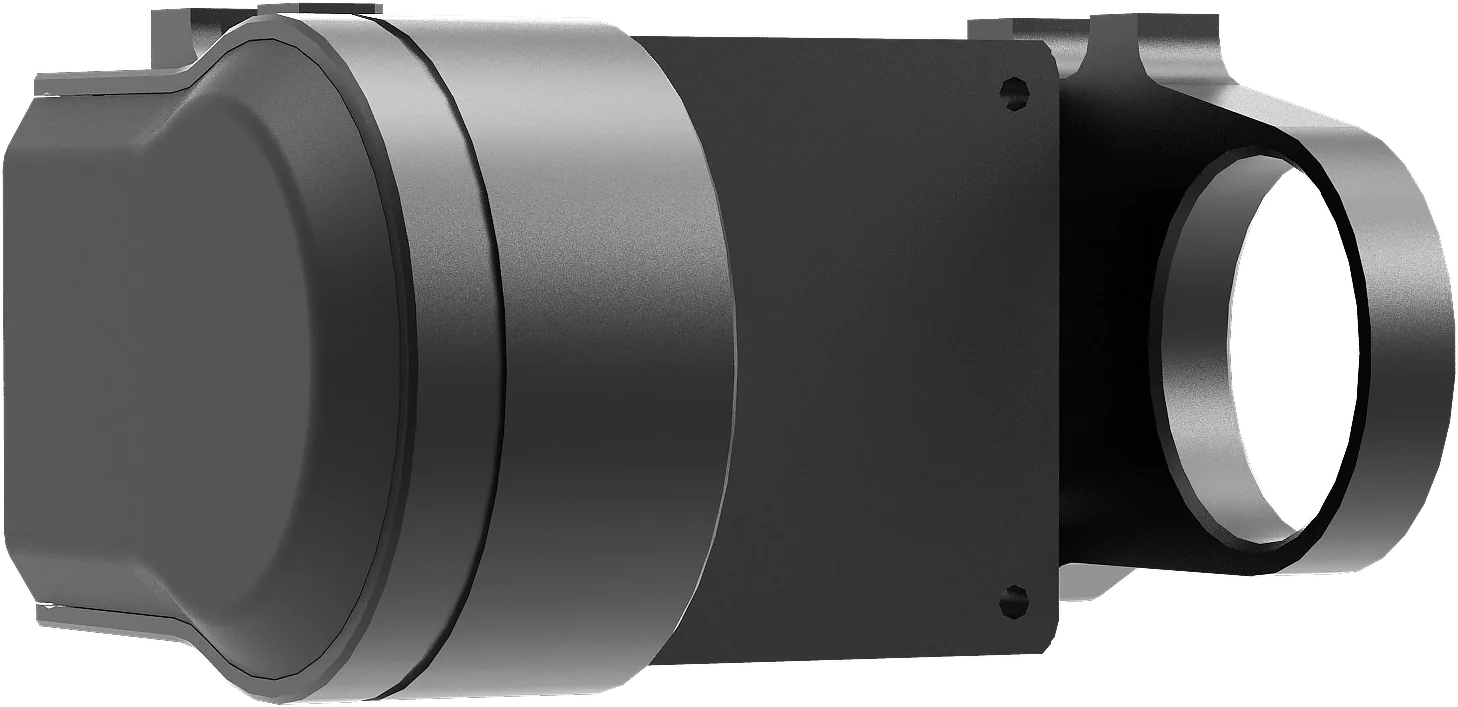

- Camera bracket and mounting layout are matched to DJI O3 digital FPV camera system.
- Single-axis mechanical stabilization helps maintain stable FPV footage on drones, RC aircraft and vehicle platforms.
- Headtracker, UART/MAVLink, S.BUS, CRSF and PWM control support common FPV integration workflows.
- Downward or upward mounting support gives integrators more flexibility in compact platform builds.
Applications
- DJI O3 FPV drone builds
- FPV drone builds
- RC fixed-wing and vehicle platforms
- Head-tracking camera control
SPECIFICATIONS
Specifications
| General | |
|---|---|
| Product Name | AX-20S |
| Dimensions | 33.8 x 38 x 20.5mm |
| Weight | 17g |
| Operating Voltage | 7.4~26.4VDC |
| Power | 1.0W (AVG) / 5.5W (Stall) |
| Mounting | Downward / Upward |
| Control Port | Headtracker / S.BUS / CRSF / PWM / MAVLink |
| Camera Compatibility | |
| Product Variant | AX-20S O3 |
| Supported Camera System | DJI O3 digital FPV camera system |
| Camera Fit | Variant-specific FPV camera mounting for the listed DJI digital FPV camera system |
| Gimbal | |
| Gimbal Type | Single-axis Mechanical Stabilization |
| Angular Accuracy | ±0.005° |
| Controllable Range | Pitch: ±120° |
| Max Controllable Speed | ±1500°/s |
| Camera Suitability | |
| Maximum Weight | 20g |
| Maximum Width | 19mm |
KEY TAKEAWAYS
- Weighs 17g at 33.8 x 38 x 20.5mm, which sets the airframe and mount it fits.
- Single-axis Mechanical Stabilization holds ±0.005° angular accuracy.
- Runs on 7.4~26.4VDC drawing 1.0W (AVG) / 5.5W (Stall) — budget this against your platform's spare payload power.
- Controllable range: Pitch: ±120°.
AX-20S variants compared
| Variant | Camera system | Max camera weight | Max camera width |
|---|---|---|---|
| AX-20S Avatar/Moonlight | Walksnail Avatar / Walksnail Moonlight digital FPV camera systems | 20g | 19mm |
| AX-20S O3 | DJI O3 digital FPV camera system | 20g | 19mm |
Frequently asked questions
Which camera does the AX-20S O3 fit?
AX-20S O3 is machined for DJI O3 digital FPV camera system. The mount accepts a camera up to 20g and 19mm wide. Other variants of the same gimbal take different camera systems.
How much does the AX-20S O3 weigh?
AX-20S O3 weighs 17g. Its dimensions are 33.8 x 38 x 20.5mm, so check both mass and envelope against your mount.
What power does the AX-20S O3 need?
AX-20S O3 accepts 7.4~26.4VDC. Power draw is 1.0W (AVG) / 5.5W (Stall). Confirm your platform can supply this continuously, not just at peak.
How is the AX-20S O3 stabilized?
AX-20S O3 uses Single-axis Mechanical Stabilization. Published angular accuracy is ±0.005°.
What is the AX-20S O3 controllable range?
Pitch: ±120°. This is the mechanical travel available to the operator or autopilot.
How do you control the AX-20S O3?
AX-20S O3 exposes Headtracker / S.BUS / CRSF / PWM / MAVLink. Match this to your flight controller or ground station before ordering.
