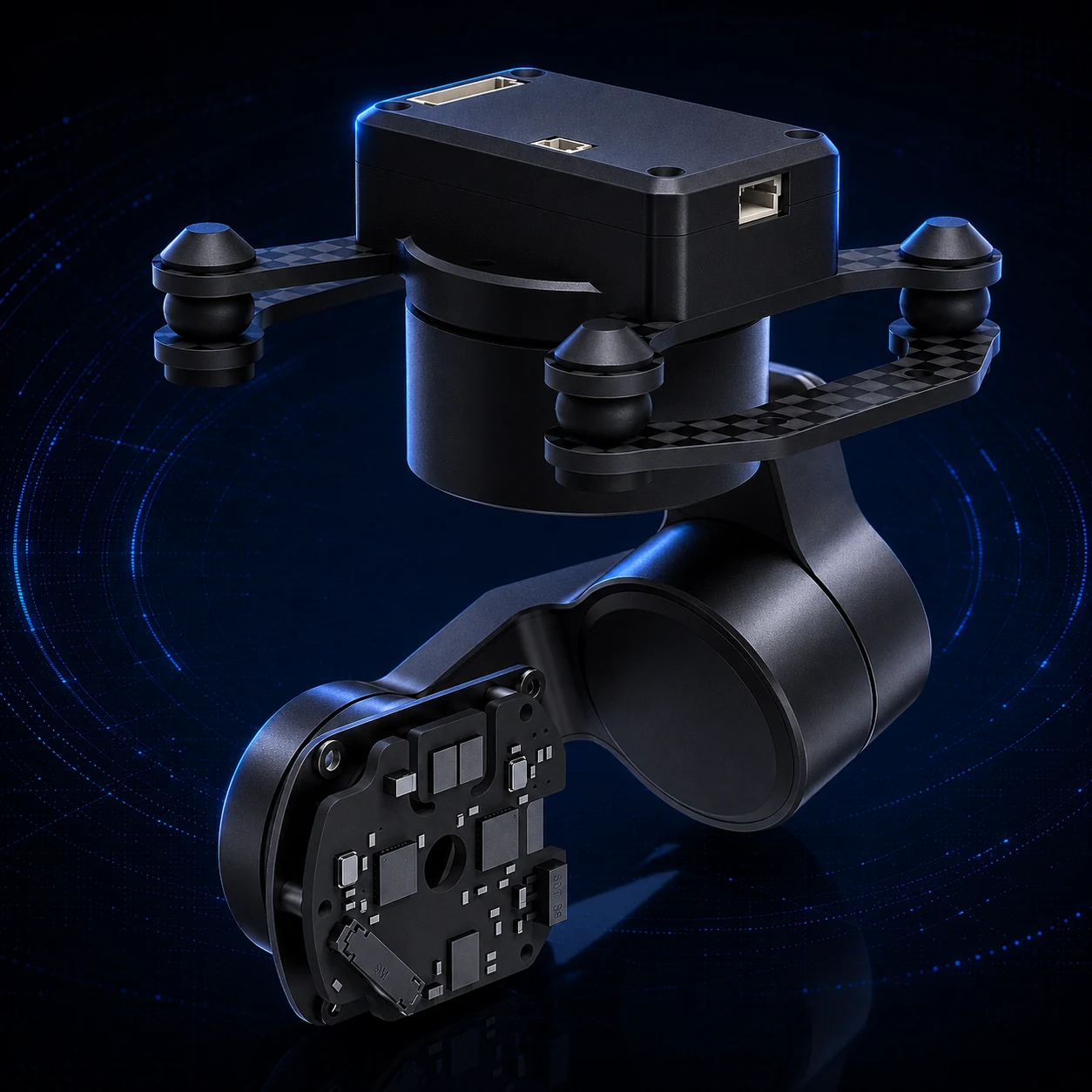

AX-40T 40g Payload 3-Axis UAV Gimbal, Head-Tracking Control

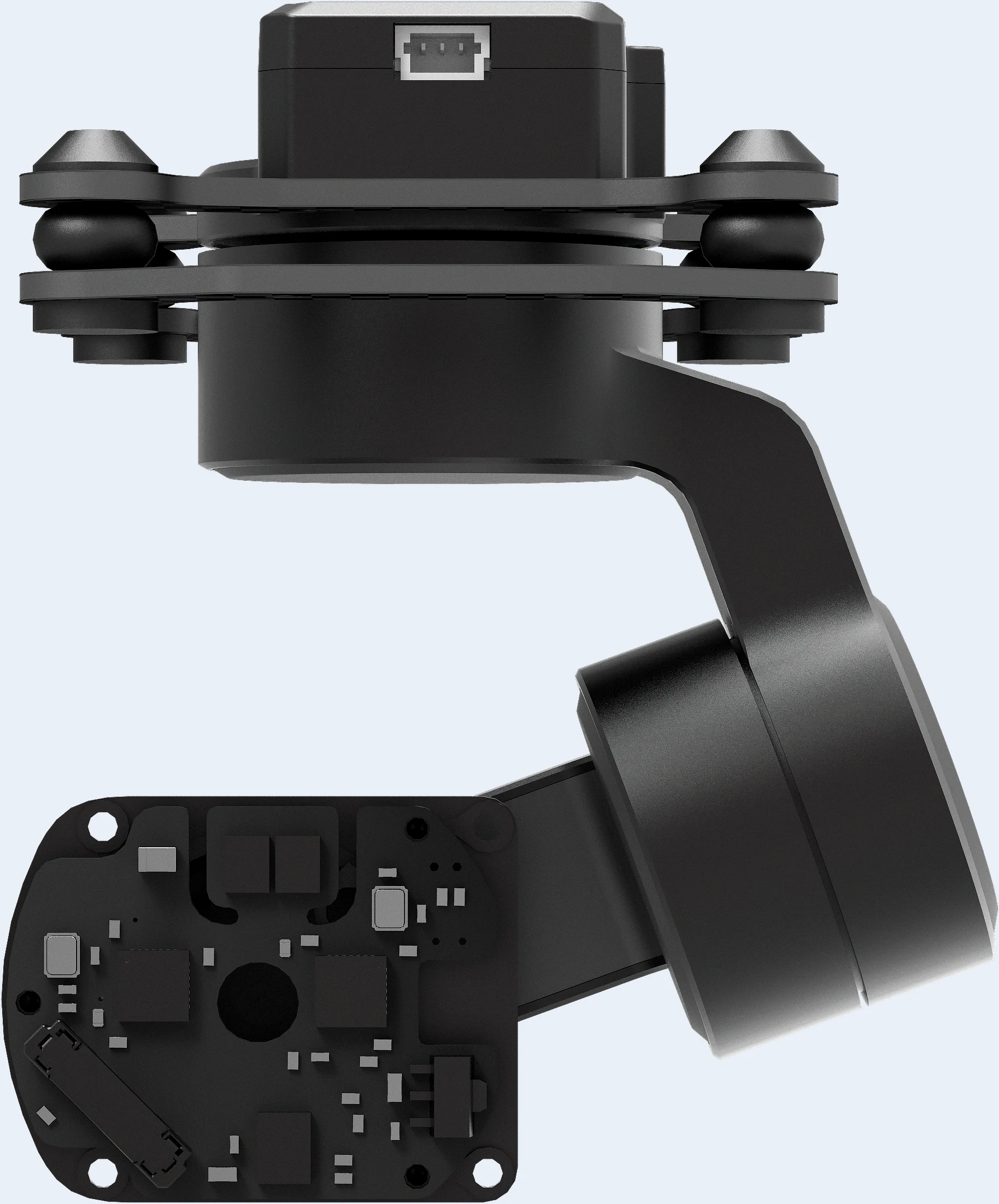

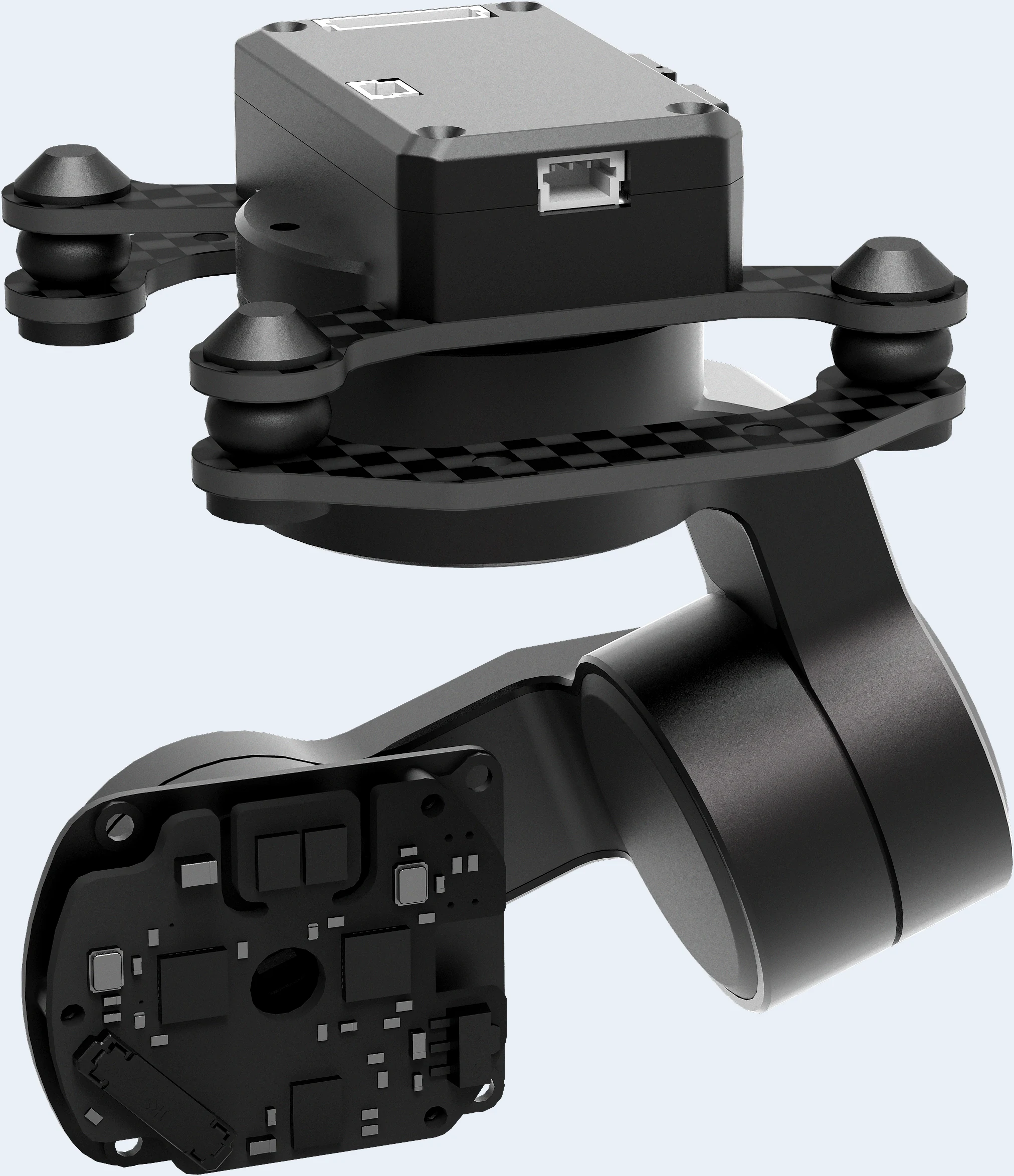

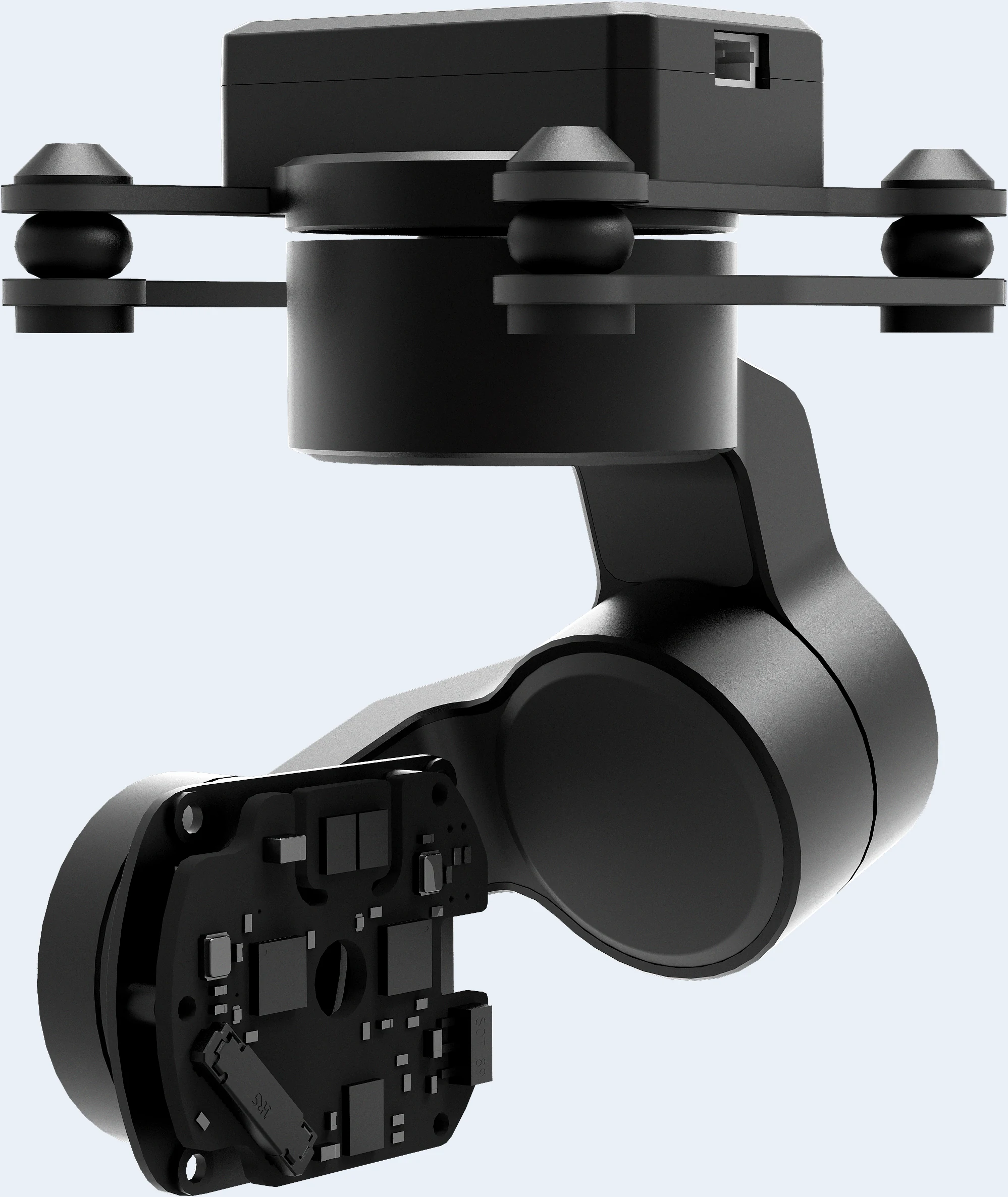

AX-40T is a 3-axis UAV gimbal for payload devices up to 40 g. It combines a non-orthogonal mechanical stabilization structure, high-torque motors and carrier AHRS fusion for ±0.05° stabilization accuracy, head tracking and multi-interface control.
DETAILS

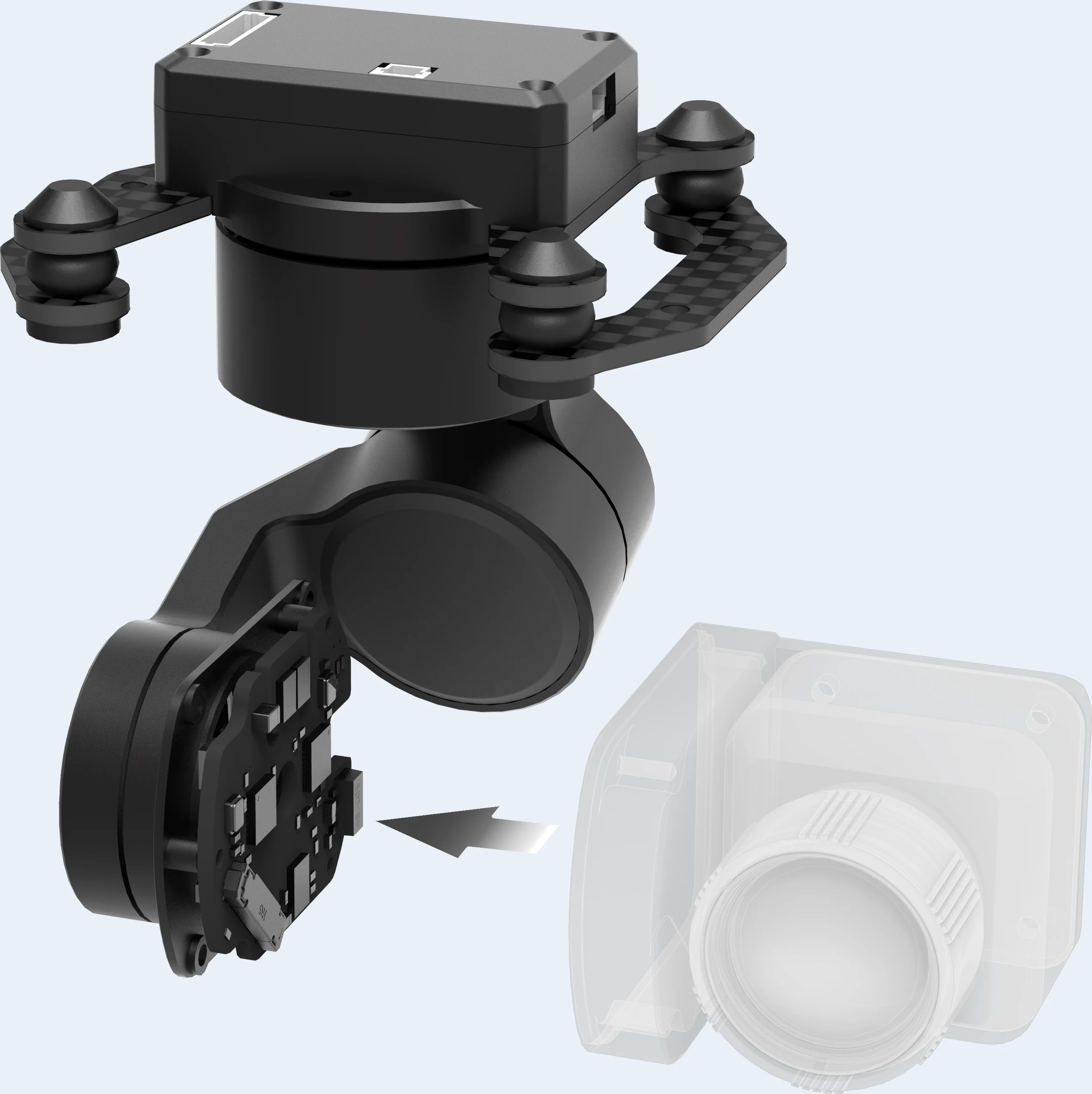

Product Details

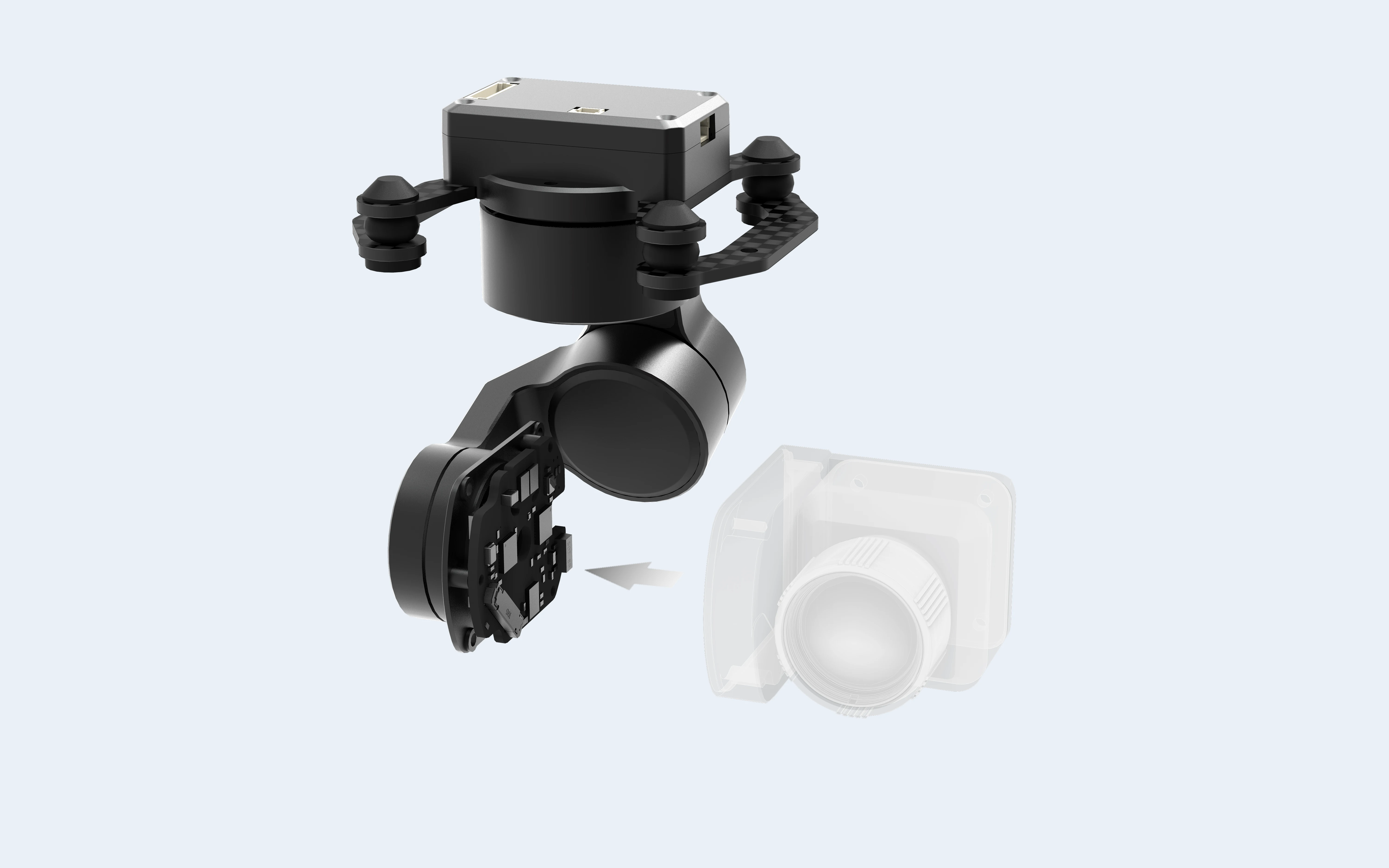

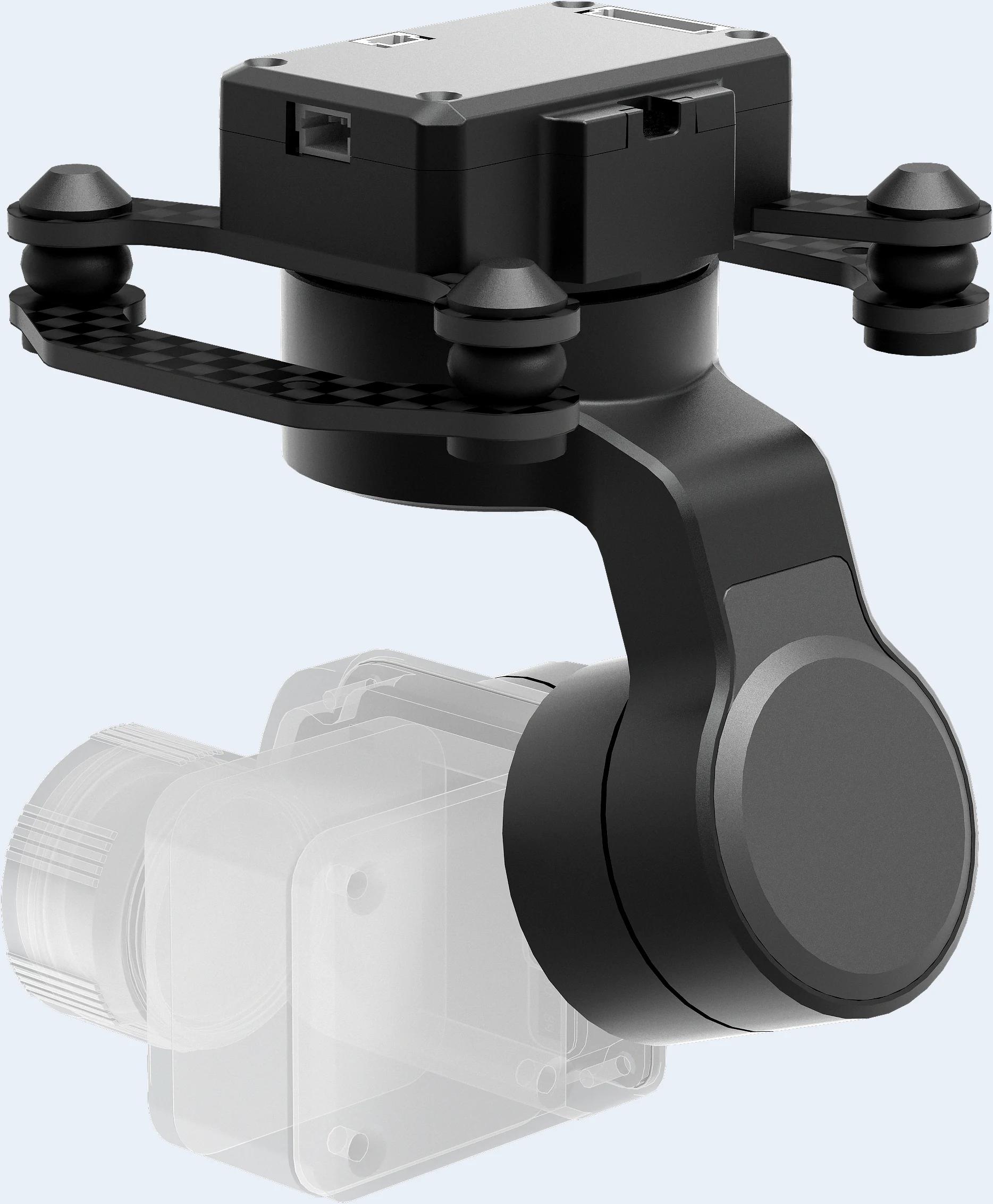

- 3-axis stabilized UAV gimbal for compact payload development.
- High-torque motors and IMU temperature control improve stabilization under vibration and airflow.
- Head tracking supports immersive payload operation.

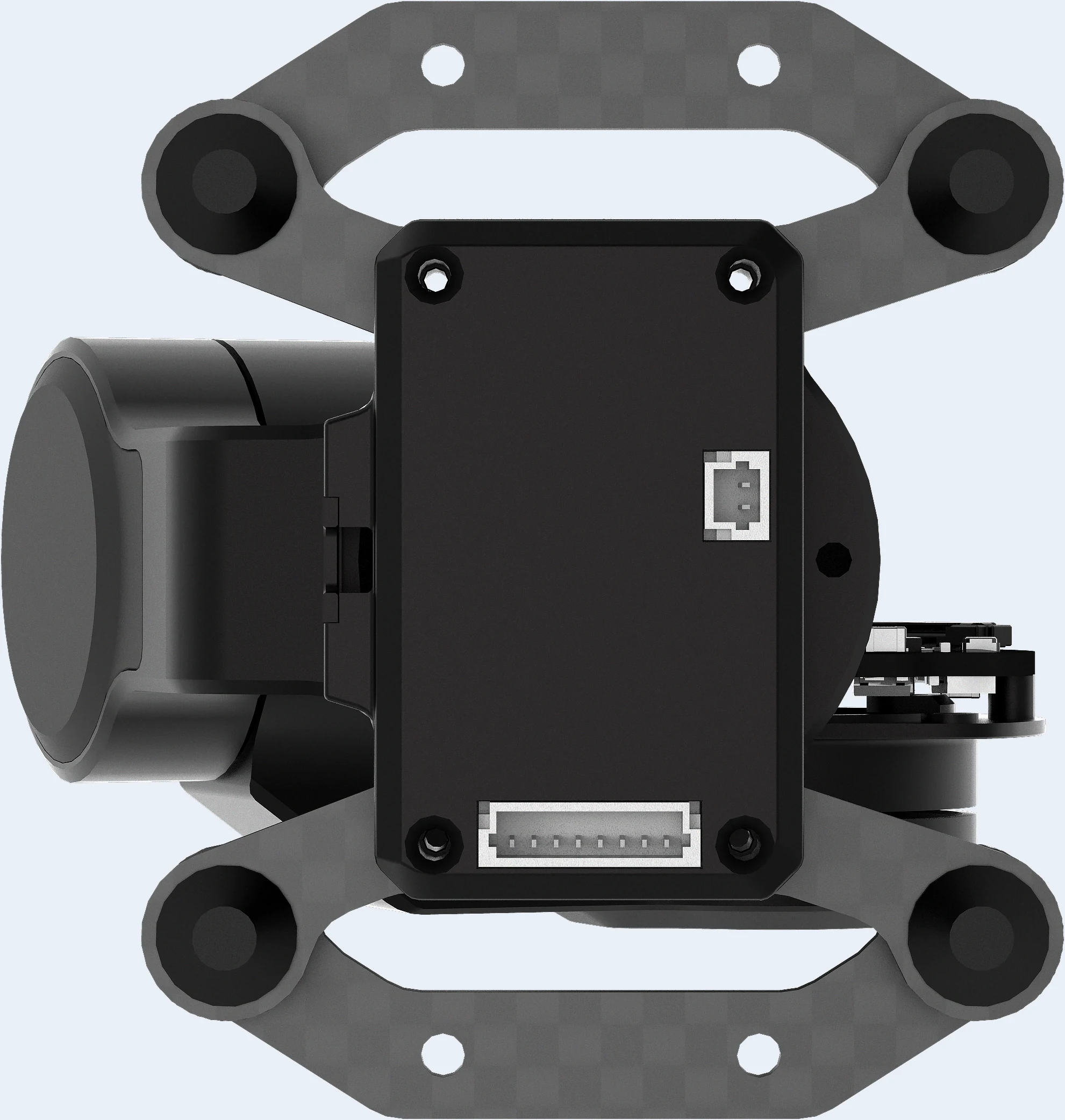

- Downward or upward mounting supports flexible carrier design.
Applications
- UAV payload integration
- FPV and stabilized imaging builds
- Custom mounting and payload development
SPECIFICATIONS

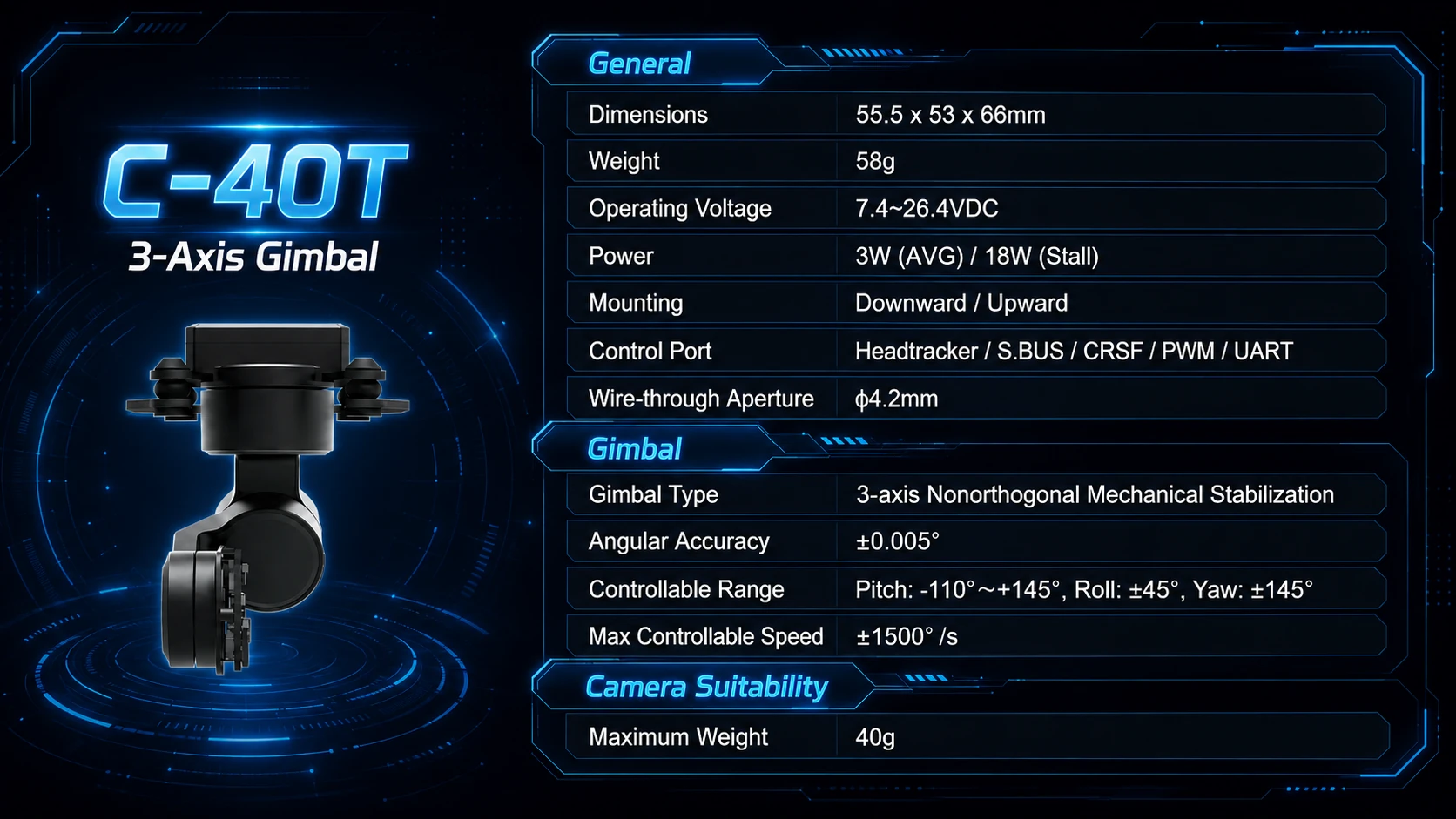

Specifications
| General | |
|---|---|
| Product Name | AX-40T |
| Dimensions | 55.5 x 53 x 66mm |
| Weight | 58g |
| Operating Voltage | 7.4~26.4VDC |
| Power | 3W (Static) / 18W (Stall) |
| Mounting | Downward / Upward |
| Control Port | Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM |
| Wire-through Aperture | ϕ4.2mm |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.05° |
| Controllable Range | Pitch: -110°~+145°, Roll: ±45°, Yaw: ±145° |
| Max Rotation Speed | ±1500°/s |
| Camera Suitability | |
| Maximum Weight | 40g |
KEY TAKEAWAYS
- Weighs 58g at 55.5 x 53 x 66mm, which sets the airframe and mount it fits.
- 3-axis Nonorthogonal Mechanical Stabilization holds ±0.05° angular accuracy.
- Runs on 7.4~26.4VDC drawing 3W (Static) / 18W (Stall) — budget this against your platform's spare payload power.
- Controllable range: Pitch: -110°~+145°, Roll: ±45°, Yaw: ±145°.
AX Series models compared
| Model | Weight | Dimensions | Stabilization | Angular accuracy | Input voltage |
|---|---|---|---|---|---|
| AX-200T | 125g | Length: 76.4~90.9mm; Width: 66.5~81.5mm; Height: 91.55mm | 3-axis Orthogonal Mechanical Stabilization | ±0.01° | 12~26.4VDC |
| AX-20D | 30g | 46.7 x 46.5 x 26.2mm | 2-axis Mechanical Stabilization | ±0.005° | 7.4~26.4VDC |
| AX-20S | 17g | 33.8 x 38 x 20.5mm | Single-axis Mechanical Stabilization | ±0.005° | 7.4~26.4VDC |
| AX-20T | 46g | 46.8 x 46.4 x 53.4mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.005° | 7.4~26.4VDC |
| AX-40D | 38g | 64 x 59 x 36.2mm | 2-axis Mechanical Stabilization | ±0.05° | 7.4~26.4VDC |
| AX-40T | 58g | 55.5 x 53 x 66mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.05° | 7.4~26.4VDC |
Frequently asked questions
How much does the AX-40T weigh?
AX-40T weighs 58g. Its dimensions are 55.5 x 53 x 66mm, so check both mass and envelope against your mount.
What power does the AX-40T need?
AX-40T accepts 7.4~26.4VDC. Power draw is 3W (Static) / 18W (Stall). Confirm your platform can supply this continuously, not just at peak.
How is the AX-40T stabilized?
AX-40T uses 3-axis Nonorthogonal Mechanical Stabilization. Published angular accuracy is ±0.05°.
What is the AX-40T controllable range?
Pitch: -110°~+145°, Roll: ±45°, Yaw: ±145°. This is the mechanical travel available to the operator or autopilot.
How do you control the AX-40T?
AX-40T exposes Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM. Match this to your flight controller or ground station before ordering.
