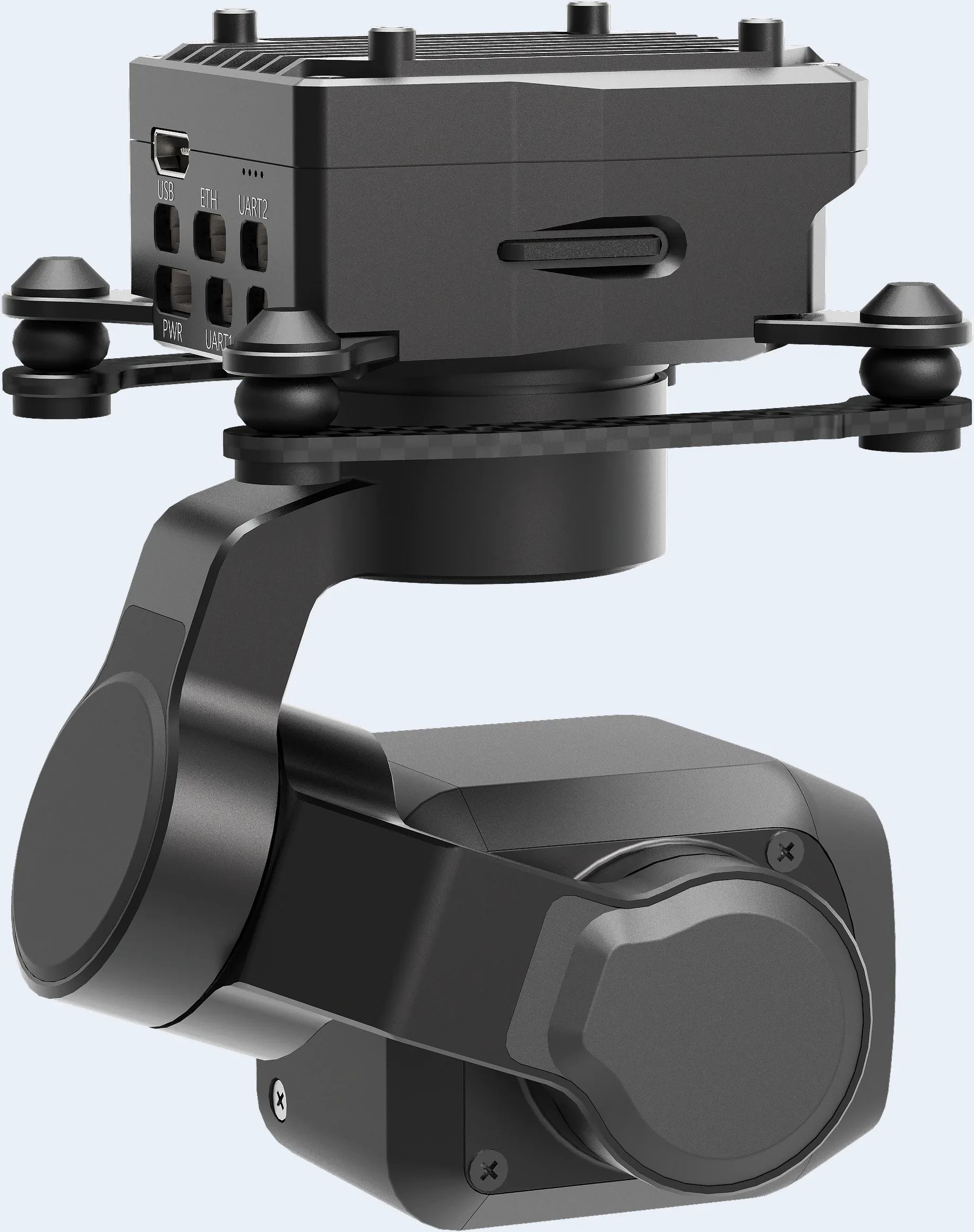

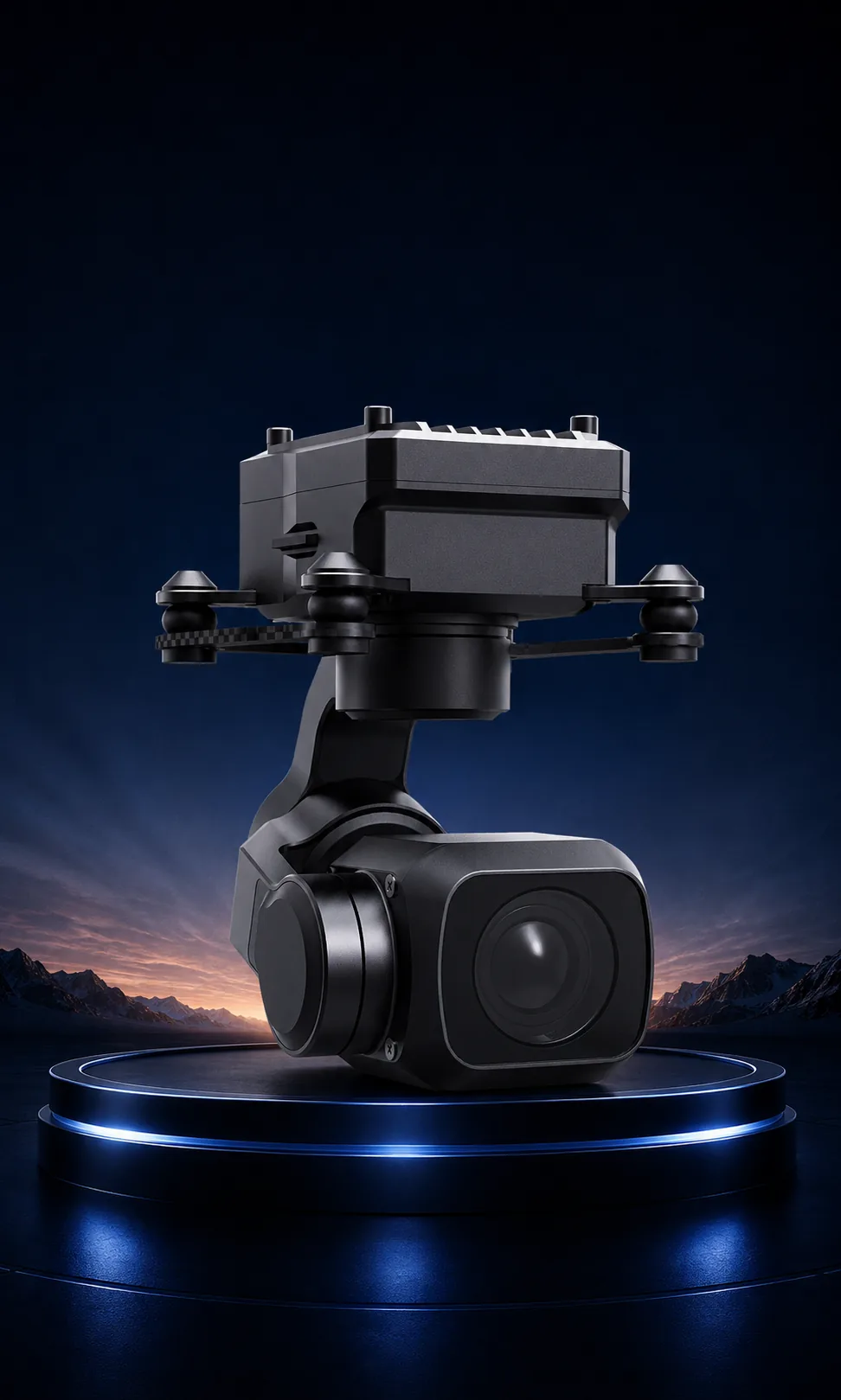

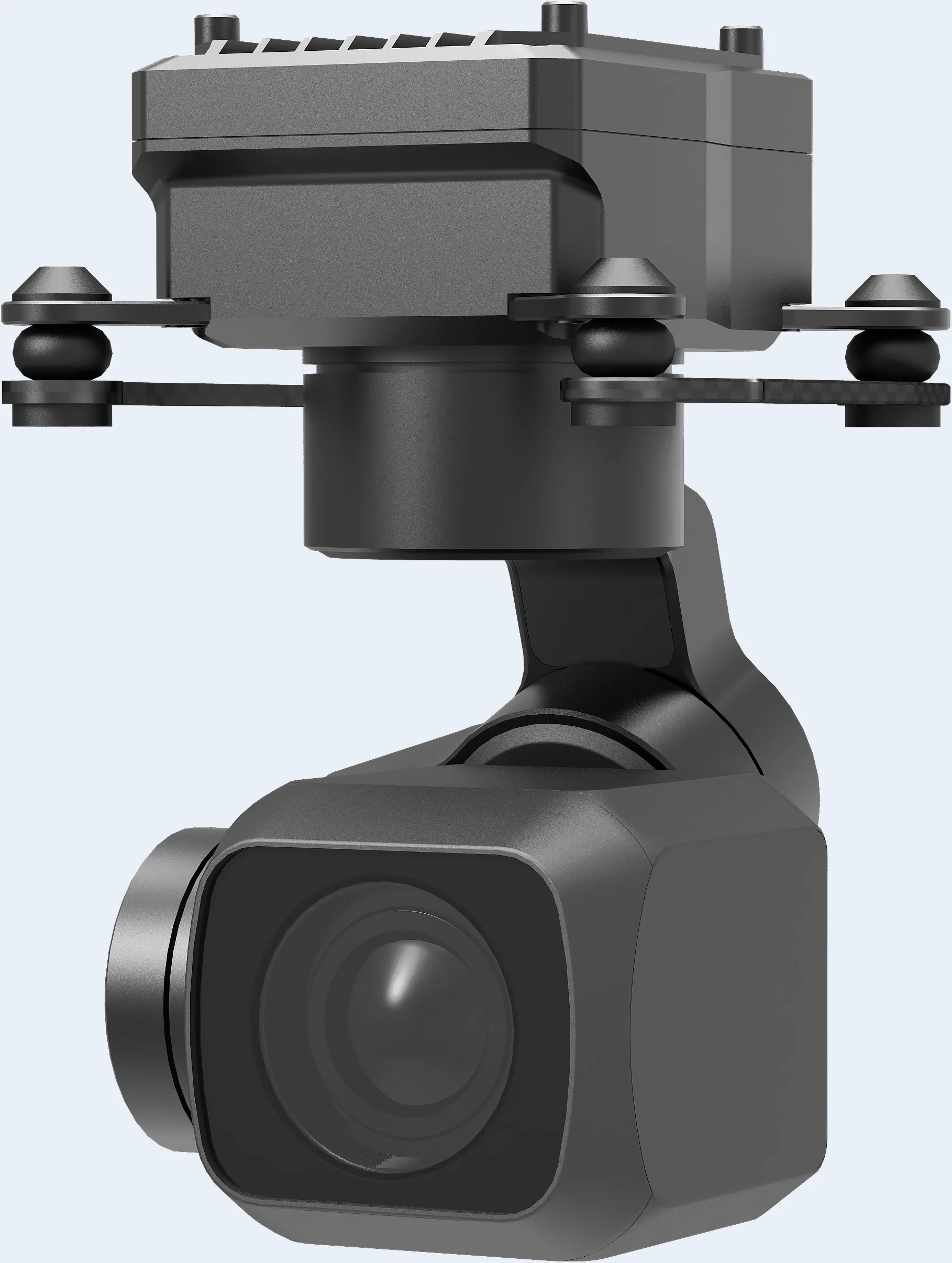

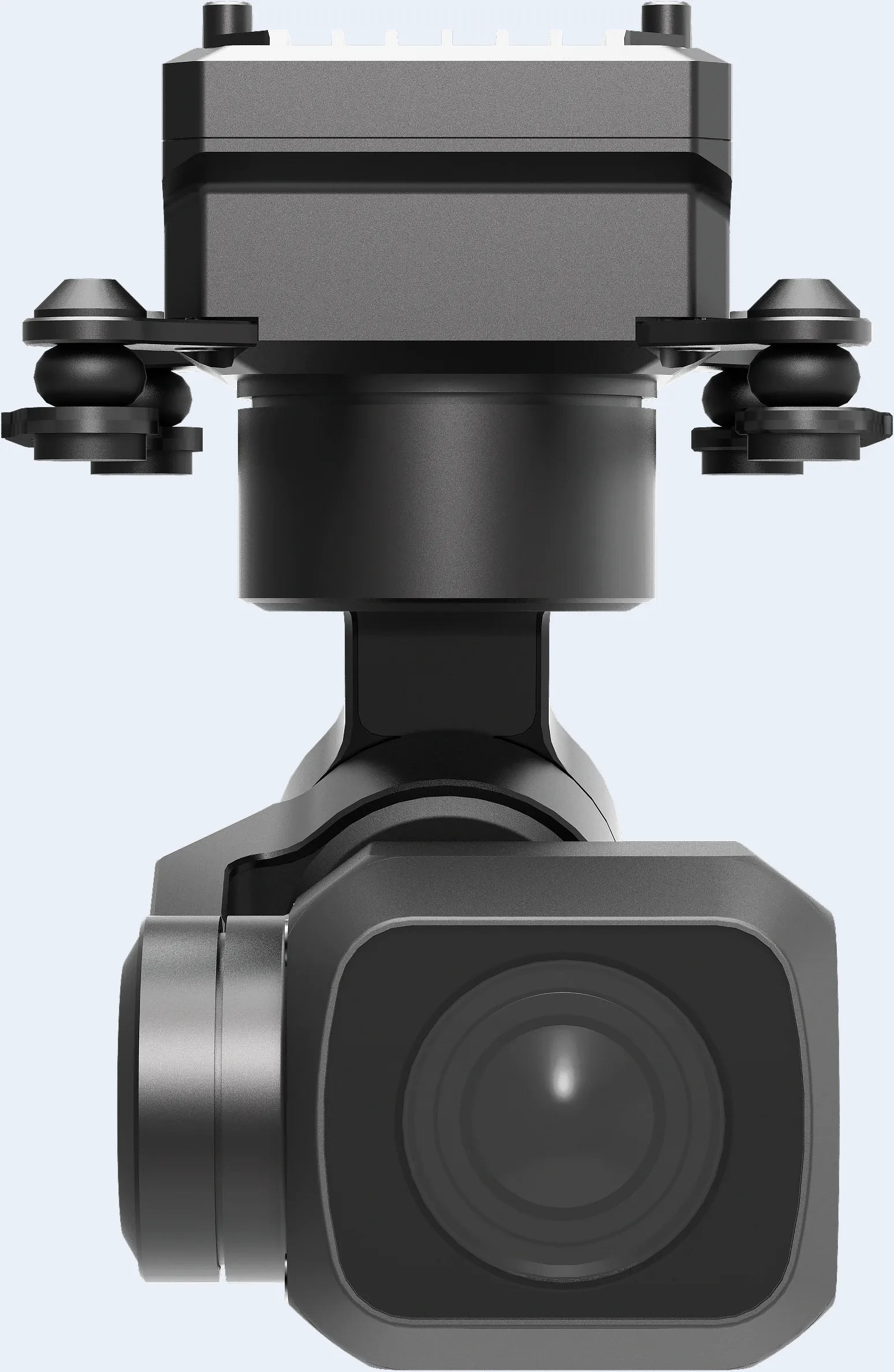

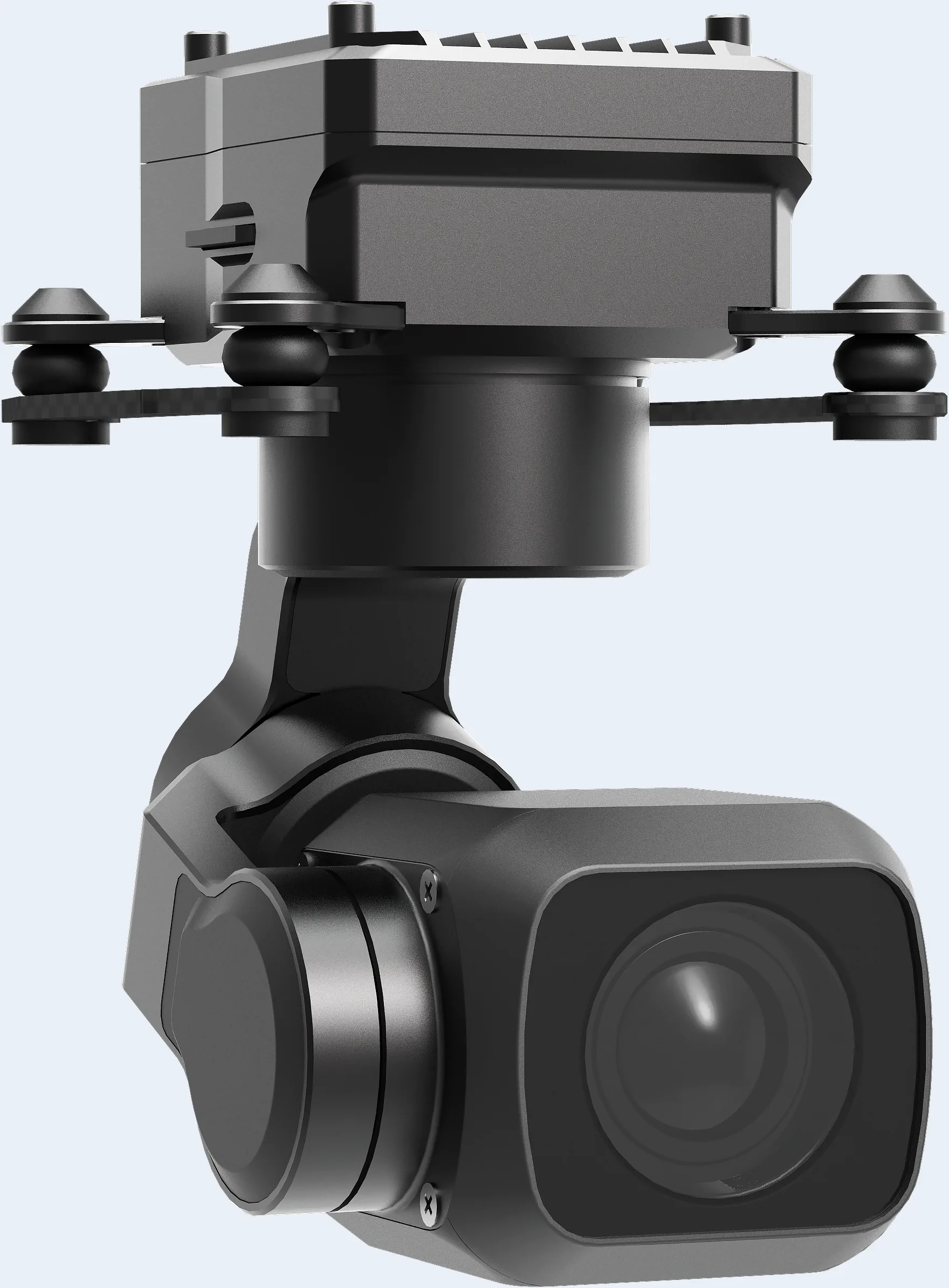

MV-1P Black-Light Full-Color Micro AI Gimbal Camera
MV-1P is a 100 g 3-axis stabilized micro gimbal camera for compact UAV night-vision workflows. It combines an ultra-starlight sensor, black-light full-color night vision, AI multi-object detection and tracking, human and vehicle recognition, MAVLink support and +/-0.01 deg stabilization accuracy.
Starting price
US$275
Rotate ∞°
DETAILS
Product Details
- Micro low-light gimbal camera for night patrol, inspection and public safety workflows.
- Black-light full-color imaging helps maintain visible-light detail in low-light scenes.

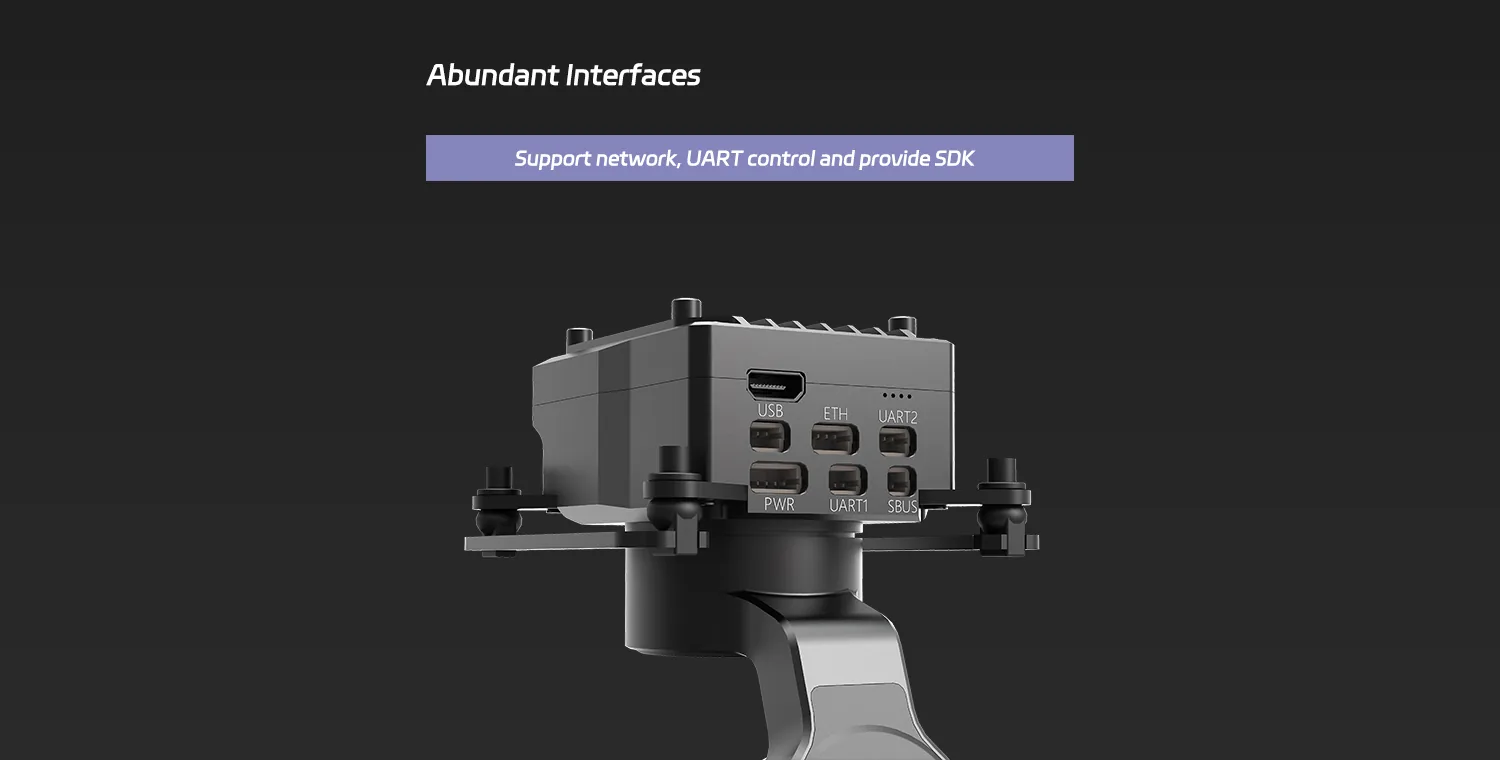

- MAVLink compatibility supports open autopilot integration.
- 3-axis stabilization supports stable imaging from compact platforms.
Applications
- Night patrol and security
- Compact UAV inspection
- Public safety monitoring
- Robotic platform imaging
SPECIFICATIONS

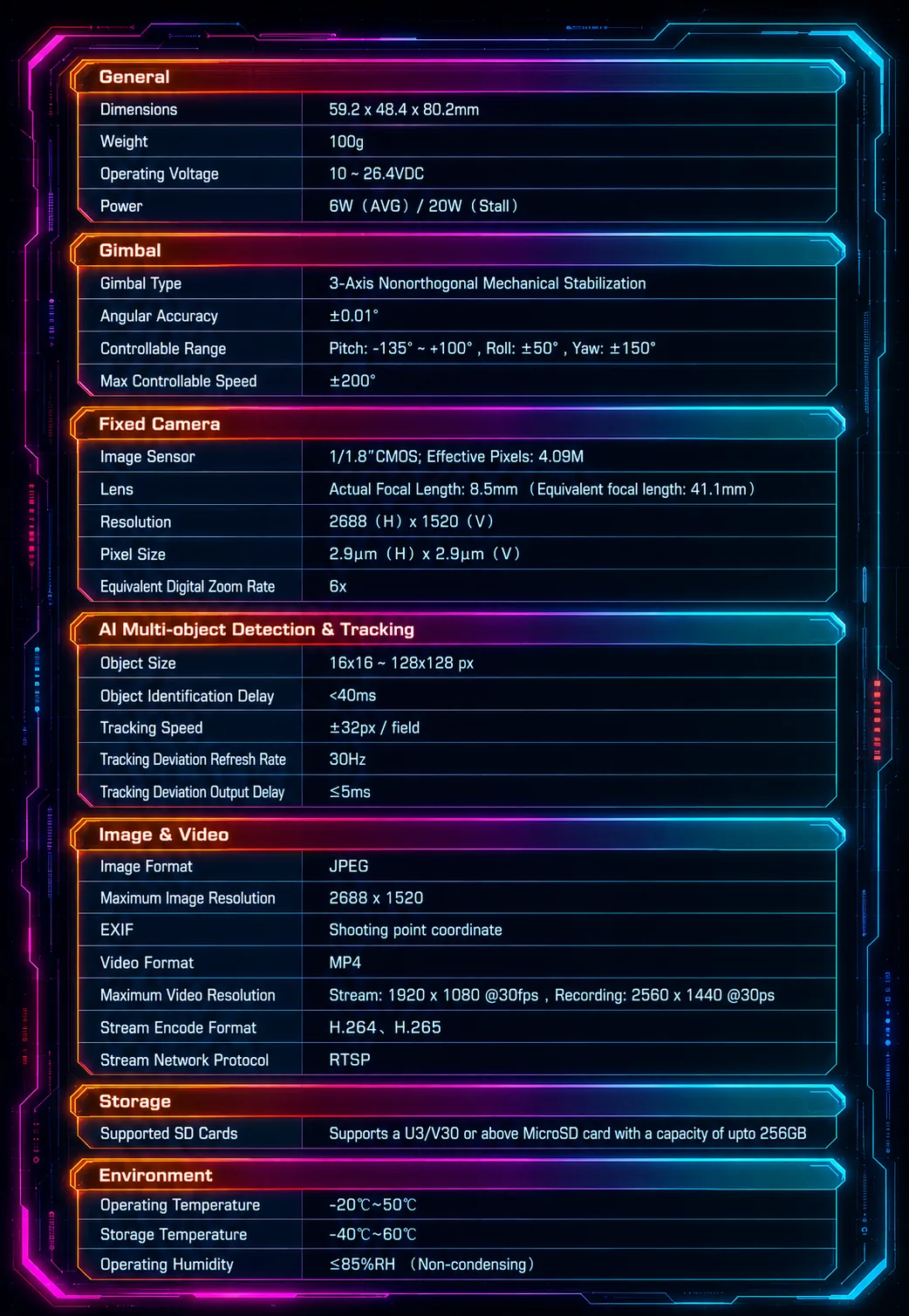

Specifications
| General | |
|---|---|
| Product Name | MV-1P |
| Dimensions | 59.2 x 48.4 x 80.2mm |
| Weight | 100g |
| Operating Voltage | 10 ~ 26.4VDC |
| Power | 6W (AVG) / 20W (Stall) |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Max Stable Tilt Angle | 45° |
| Controllable Range | Pitch: -110°～+120°, Yaw: ±140° |
| Max Rotation Speed | 150°/s |
| Visible Light Camera | |
| Image Sensor | 1/1.8-inch CMOS, Effective Pixels: 4.09M |
| Actual Focal Length | 8.5mm (Equivalent focal length: 41.1mm) |
| Aperture | f/1.0 |
| Lens | HFOV: 57.1° |
| VFOV | 30.4° |
| DFOV | 66.3° |
| Resolution | 2688(H) x 1520(V) |
| Pixel Size | 2.9μm(H) x 2.9μm(V) |
| Equivalent Digital Zoom Rate | 6x |
| AI Multi-object Detection & Tracking | |
| Object Size | 16x16 ~ 128x128 px |
| Object Identification Delay | ＜40ms |
| Tracking Speed | ±32 px / field |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤5ms |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 2688 x 1520 |
| Video Format | MP4; Stream: 2688 x 1520 @30fps |
| Maximum Video Resolution | Recording: 1920 x 1080 @30fps (2688 x 1520 @ 30fps will be supported via; subsequent firmware updates) |
| OSD | Time, Camera attitude, Carrier coordinate, Magnification level, Storage status |
| EXIF | Time, Camera attitude, Carrier coordinate, Resolution |
| SEI | Will be supported via subsequent firmware updates |
| Stream Encode Format | H.264，H.265 |
| Stream Network Protocol | RTSP; Dragonfly: 230ms |
| OSD | OFF & target detection OFF QGC: 200ms; FPS: 30; Dragonfly: 340ms |
| OSD | ON & target detection OFF QGC: 310ms; FPS: 26; Average Stream Delay & FPS[4]; Dragonfly:240ms |
| OSD | OFF & target detection ON QGC: 200ms; FPS: 30; Dragonfly: 300ms |
| OSD | ON & target detection ON QGC: 310ms; FPS: 26 |
| Storage | |
| Supported SD Cards | Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB |
| Environment | |
| Operating Temperature | -20℃～50℃ |
| Storage Temperature | -40℃～60℃ |
| Operating Humidity | ≤85%RH (Non-condensing); video stream delay will increase and frame rates will decrease |
| Detection & Distance Reference | |
| Visible Light Camera - Object Detection Distance | Johnson Criteria Person: 1466m; Light vehicle: 4494m; Large vehicle: 9575m; EN62676-4:2015 Person: 25m; Light vehicle: 32m; Large vehicle: 69m |
| Visible Light Camera - Object Identification Distance | Johnson Criteria Person: 366m; Light vehicle: 1124m; Large vehicle: 2394m; EN62676-4:2015 Person: 12m; Light vehicle: 16m; Large vehicle: 34m |
| Visible Light Camera - Object Verification Distance | Johnson Criteria Person: 183m; Light vehicle: 562m; Large vehicle: 1197m |
