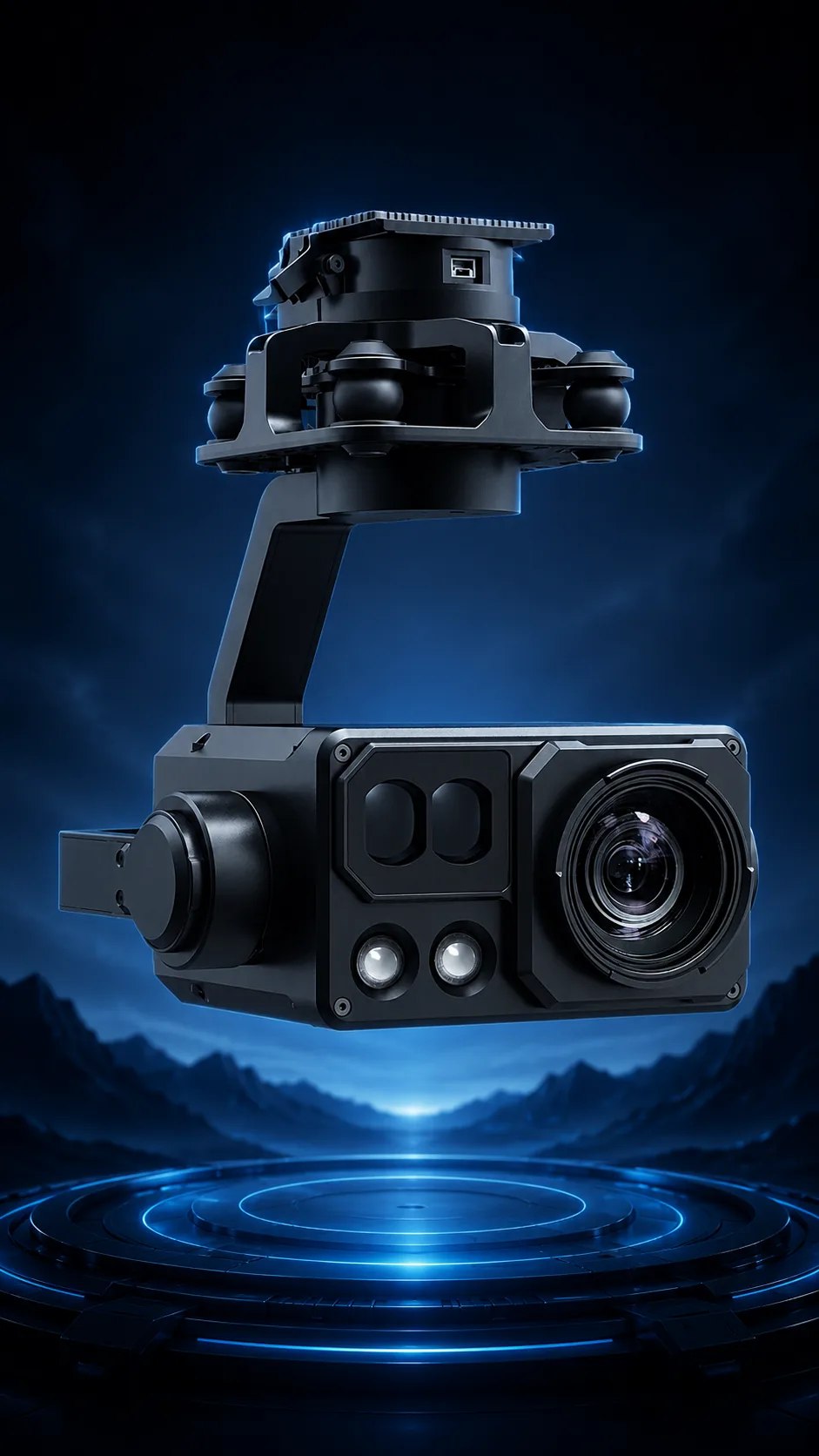

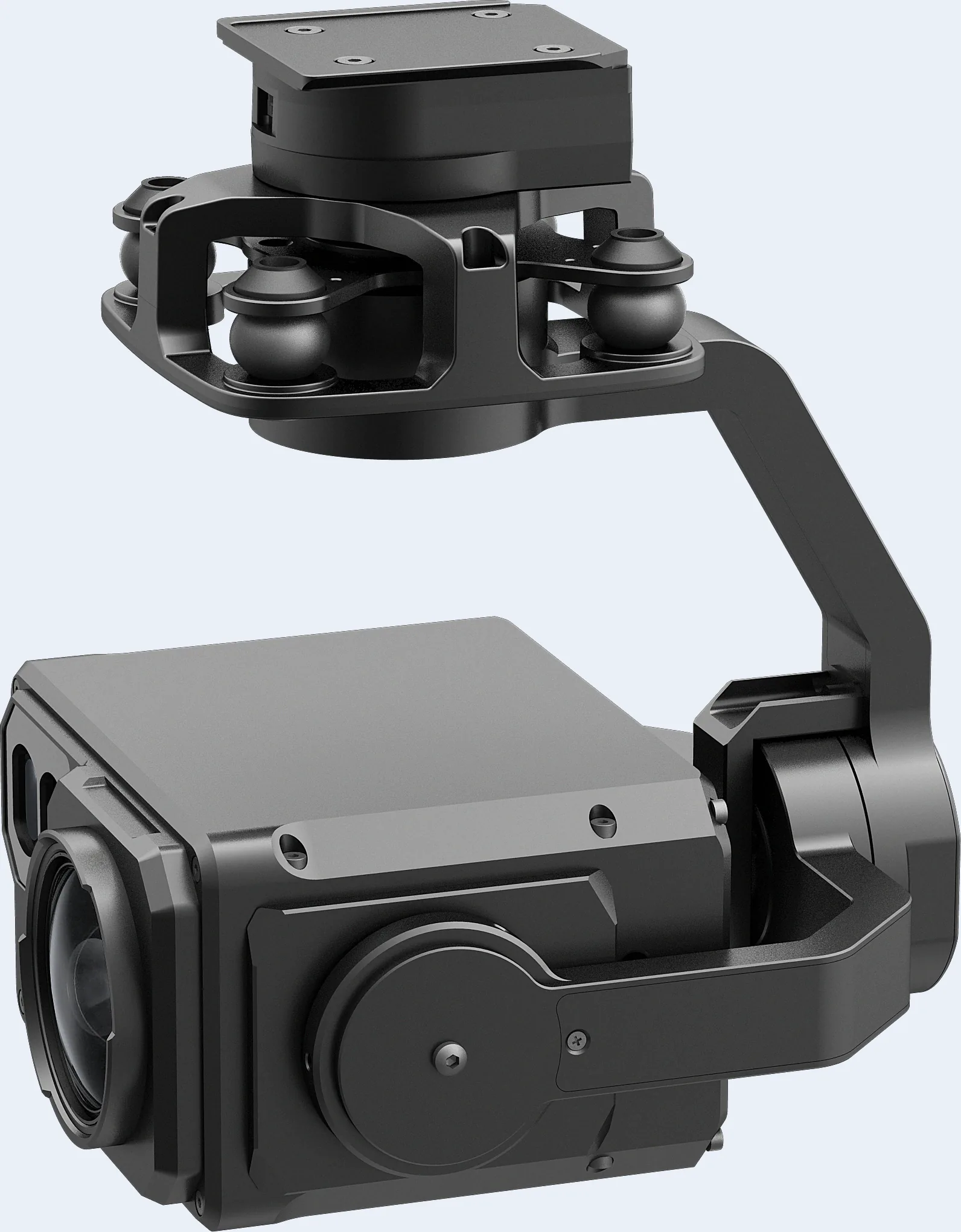

LX-8RB 360x Laser Night-Vision Ranging Gimbal Camera
LX-8RB is a laser night-vision ranging UAV payload for long-range observation and target positioning. It combines a starlight-level 30x optical zoom camera, 12x digital zoom, 360x combined zoom, 1800 m laser range finder, laser illumination, military-grade auto tracking and 3-axis stabilization.
Starting price
US$5,300

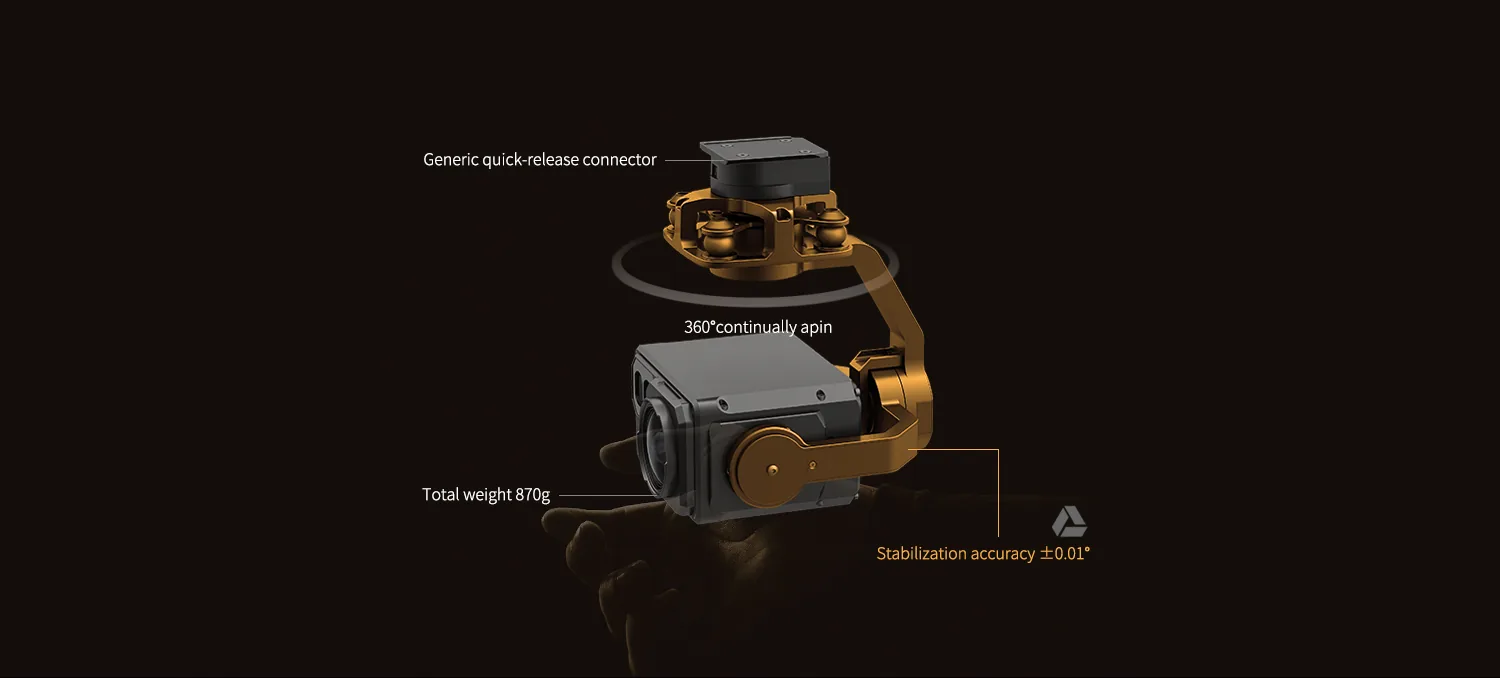

Rotate ∞°
DETAILS
Product Details
- Laser night-vision ranging payload for public safety, forest protection and perimeter security.

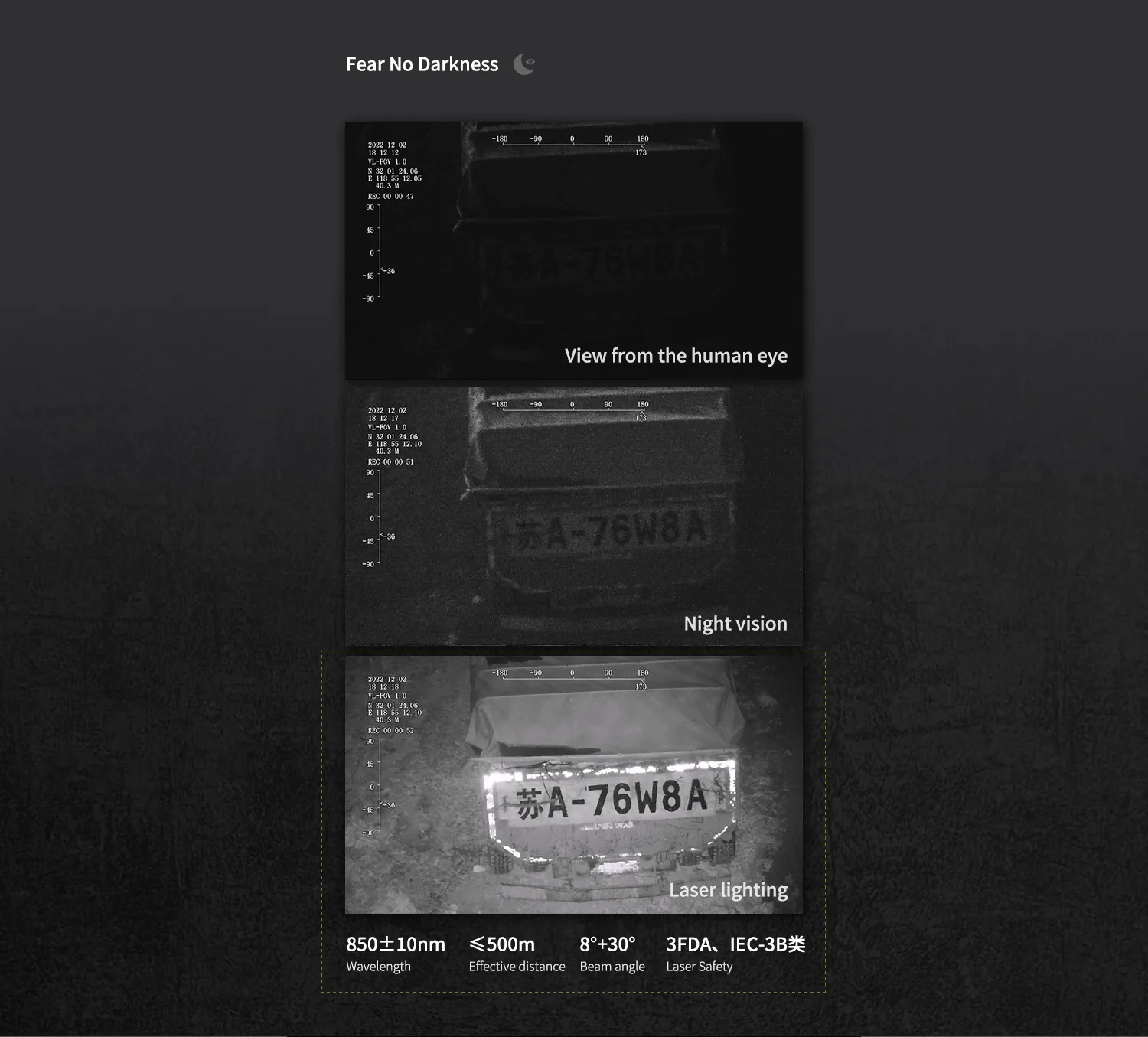

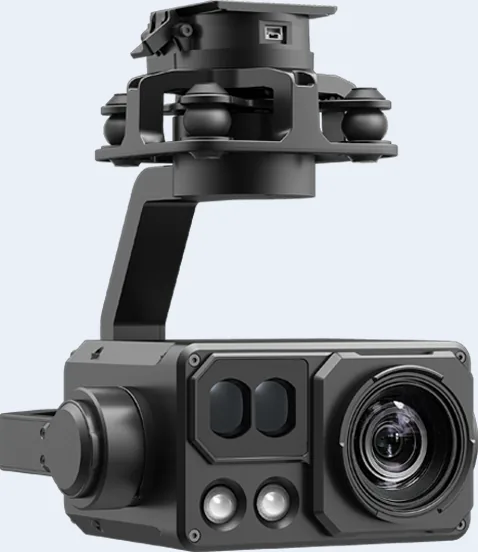

- Starlight zoom camera and laser illumination support day/night observation.
- 1800 m ranging improves mission awareness and target positioning.
- Automatic target tracking supports continuous observation during UAV missions.
Applications
- Target ranging and positioning
- Public safety and perimeter security
- Infrastructure inspection
- Search and rescue support
SPECIFICATIONS

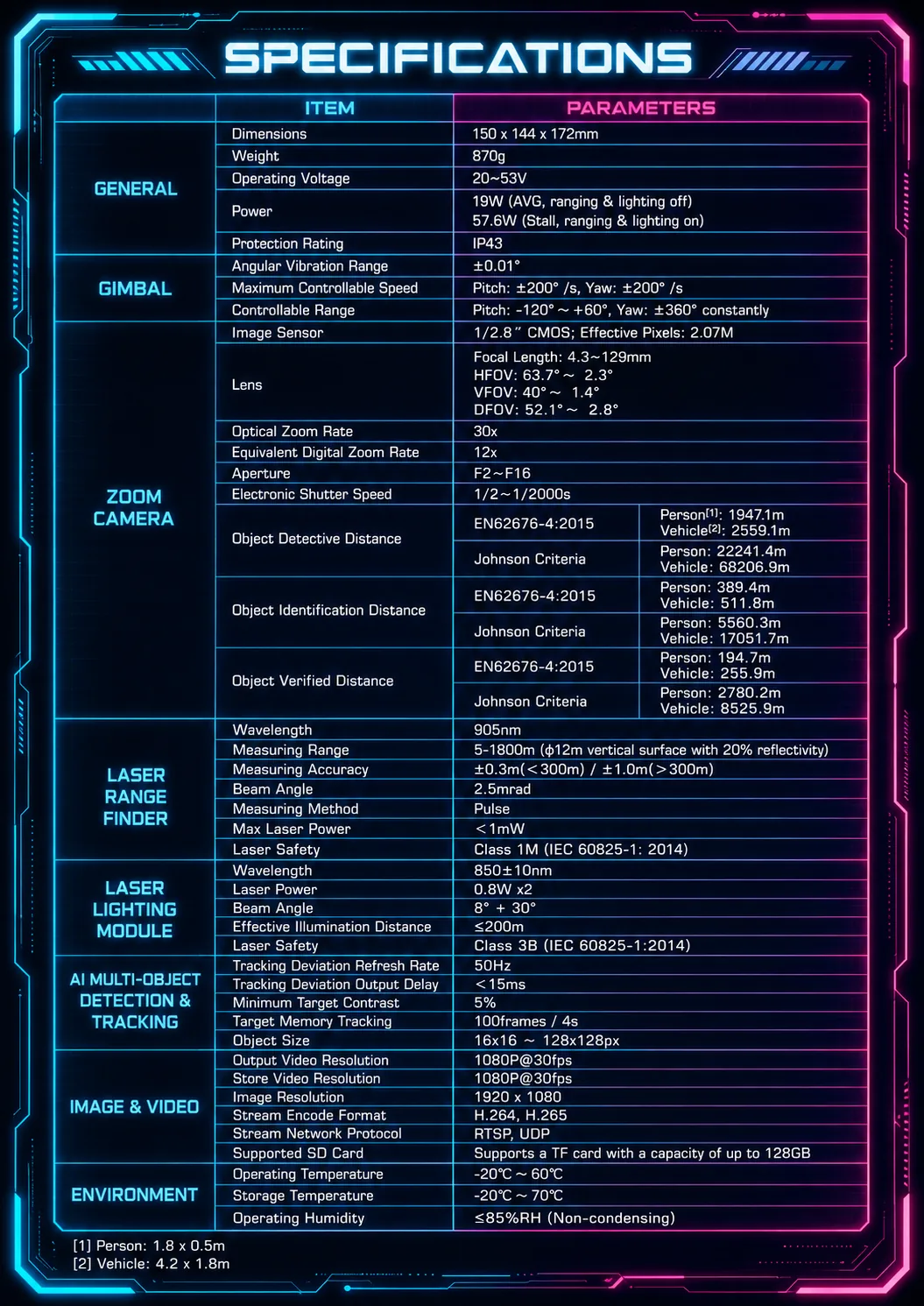

Specifications

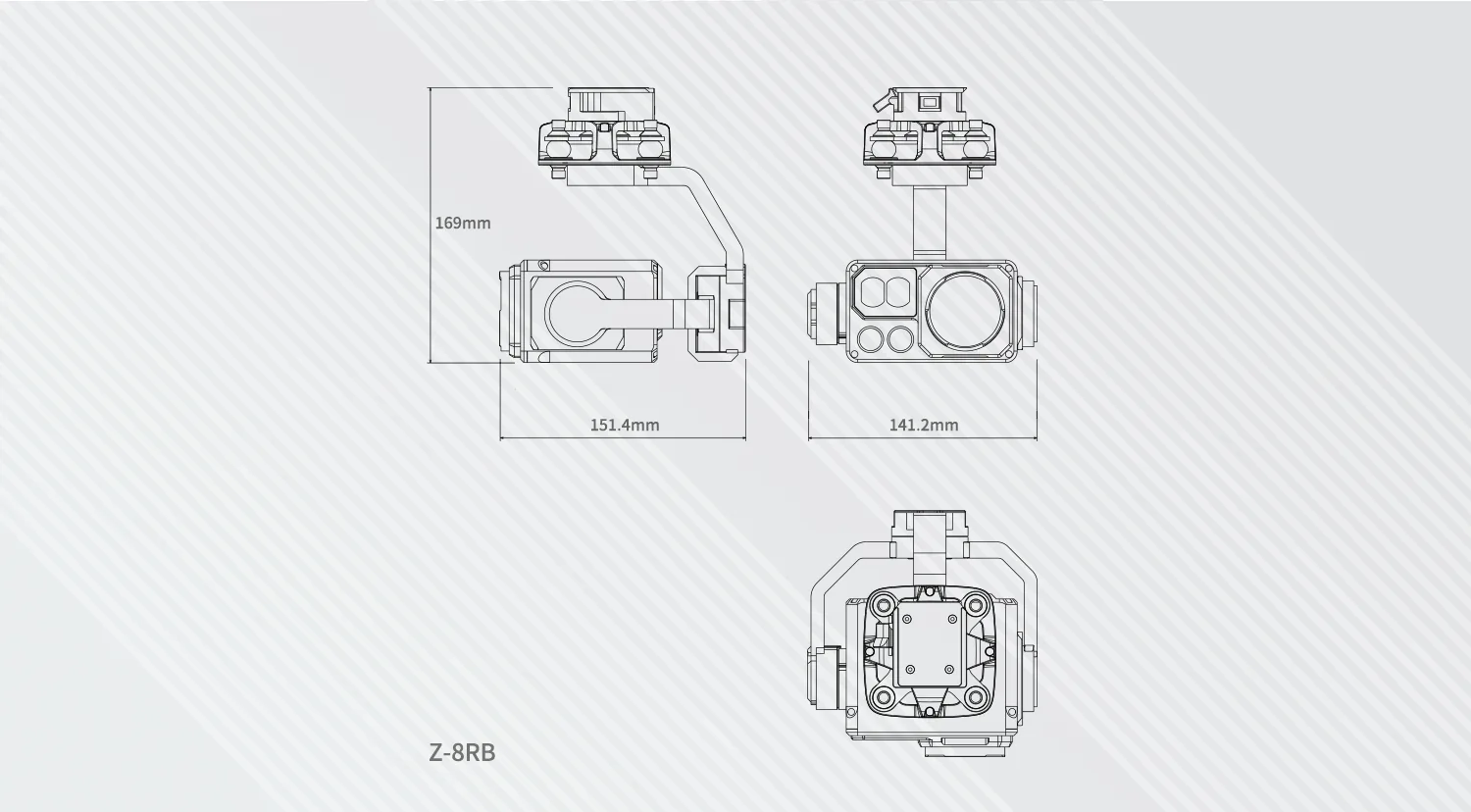

| General | |
|---|---|
| Product Name | LX-8RB |
| Dimensions | 150 x 144 x 172mm |
| Weight | 870g |
| Operating Voltage | 20~53V |
| Power | 19W (AVG, ranging & lighting off) / 57.6W (Stall, ranging & lighting on) |
| Protection Rating | IP43 |
| Gimbal | |
| Angular Vibration Range | ±0.01° |
| Maximum Controllable Speed | Pitch: ±200°/s, Yaw: ±200°/s |
| Controllable Range | Pitch: -120° to +60°, Yaw: ±360° constantly |
| Zoom Camera | |
| Image Sensor | 1/2.8-inch CMOS; Effective Pixels: 2.07M |
| Focal Length | 4.3~129mm |
| HFOV | 63.7° to 2.3° |
| VFOV | 40° to 1.4° |
| DFOV | 52.1° to 2.8° |
| Optical Zoom Rate | 30x |
| Equivalent Digital Zoom Rate | 12x |
| Hybrid Zoom Rate | 360x |
| Aperture | F2~F16 |
| Electronic Shutter Speed | 1/2~1/2000s |
| Laser Range Finder | |
| Wavelength | 905nm |
| Measuring Range | 5~1800m (phi 12m vertical surface with 20% reflectivity) |
| Measuring Accuracy | ±0.3m (<300m) / ±1.0m (>300m) |
| Beam Angle | 2.5mrad |
| Measuring Method | Pulse |
| Max Laser Power | <1mW |
| Laser Safety Class | Class 1M (IEC 60825-1:2014) |
| Laser Lighting Module | |
| Wavelength | 850±10nm |
| Laser Power | 0.8W x2 |
| Beam Angle | 8° + 30° |
| Effective Illumination Distance | <=200m |
| Laser Safety Class | Class 3B (IEC 60825-1:2014) |
| AI Multi-object Detection & Tracking | |
| Tracking Deviation Refresh Rate | 50Hz |
| Tracking Deviation Output Delay | <15ms |
| Tracking Minimum Target Contrast | 5% |
| Target Memory Tracking | 100 frames / 4s |
| Object Size | 16 x 16 ~ 128 x 128px |
| Image & Video | |
| Output Video Resolution | 1080P@30fps |
| Stored Video Resolution | 1080P@30fps |
| Image Resolution | 1920 x 1080 |
| Stream Encode Format | H.264, H.265 |
| Stream Network Protocol | RTSP, UDP |
| Supported SD Card | TF card up to 128GB |
| Environment | |
| Operating Temperature | -20° C to 60° C |
| Storage Temperature | -20° C to 70° C |
| Operating Humidity | <=85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance (EN62676-4:2015) | Person: 1947.1m; Vehicle: 2559.1m |
| Zoom Camera - Object Detection Distance (Johnson Criteria) | Person: 22241.4m; Vehicle: 68206.9m |
| Zoom Camera - Object Identification Distance (EN62676-4:2015) | Person: 389.4m; Vehicle: 511.8m |
| Zoom Camera - Object Identification Distance (Johnson Criteria) | Person: 5560.3m; Vehicle: 17051.7m |
| Zoom Camera - Object Verification Distance (EN62676-4:2015) | Person: 194.7m; Vehicle: 255.9m |
| Zoom Camera - Object Verification Distance (Johnson Criteria) | Person: 2780.2m; Vehicle: 8525.9m |
KEY TAKEAWAYS
- Weighs 870g at 150 x 144 x 172mm, which sets the airframe and mount it fits.
- Runs on 20~53V drawing 19W (AVG, ranging & lighting off) / 57.6W (Stall, ranging & lighting on) — budget this against your platform's spare payload power.
- Controllable range: Pitch: -120° to +60°, Yaw: ±360° constantly.
