PAYLOADS / OP SERIES

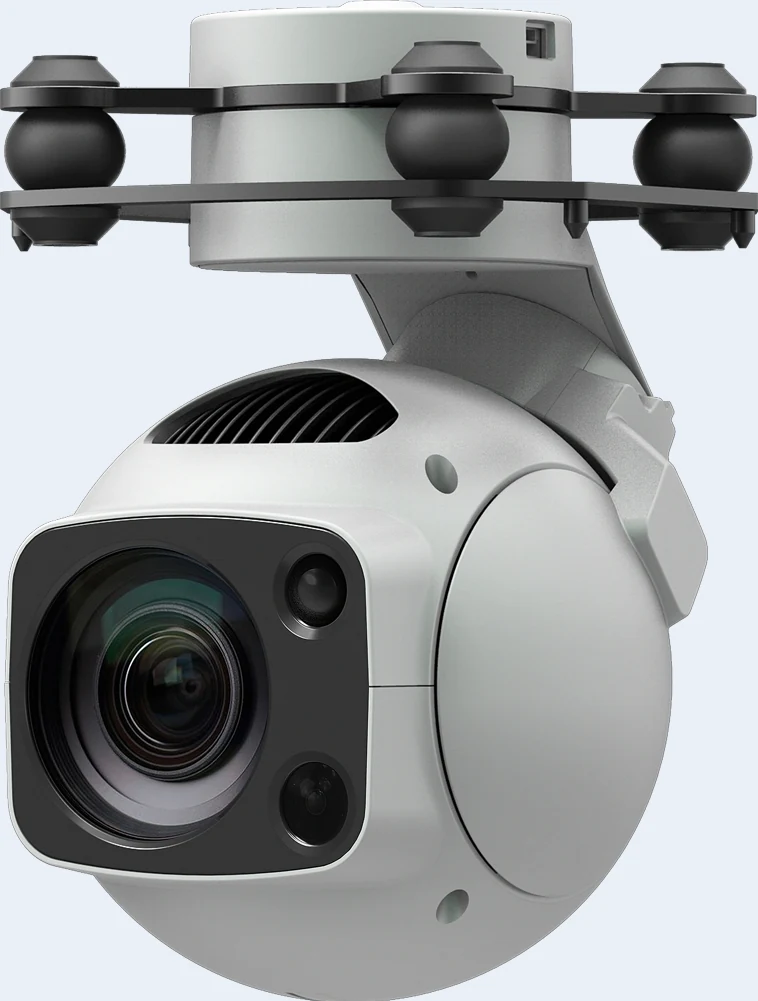

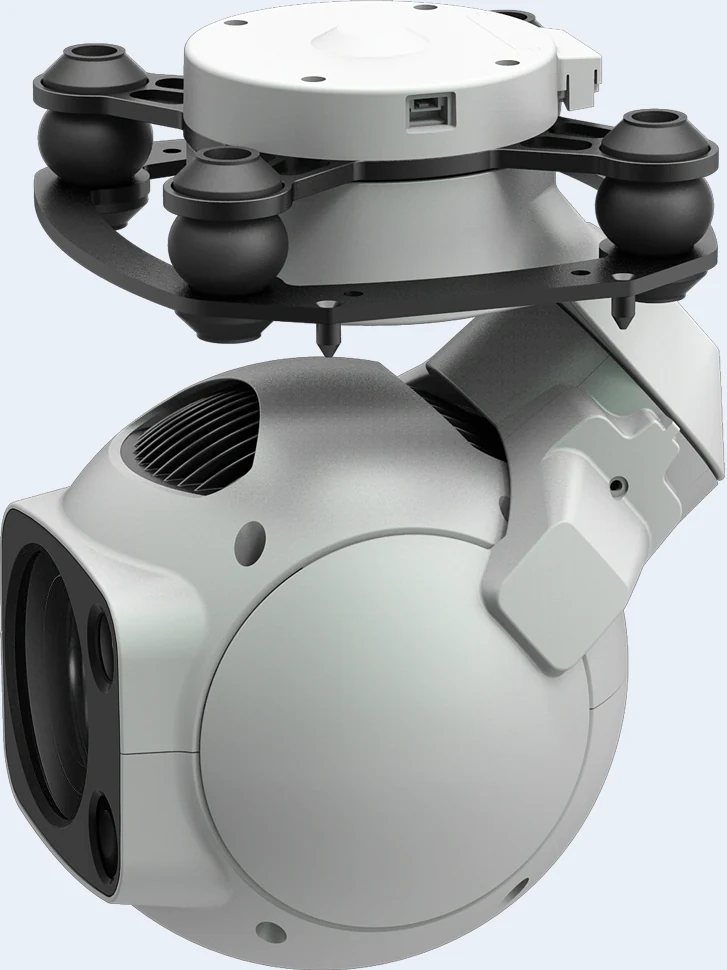

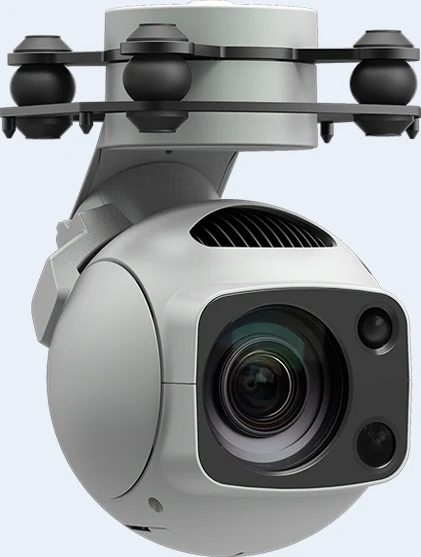

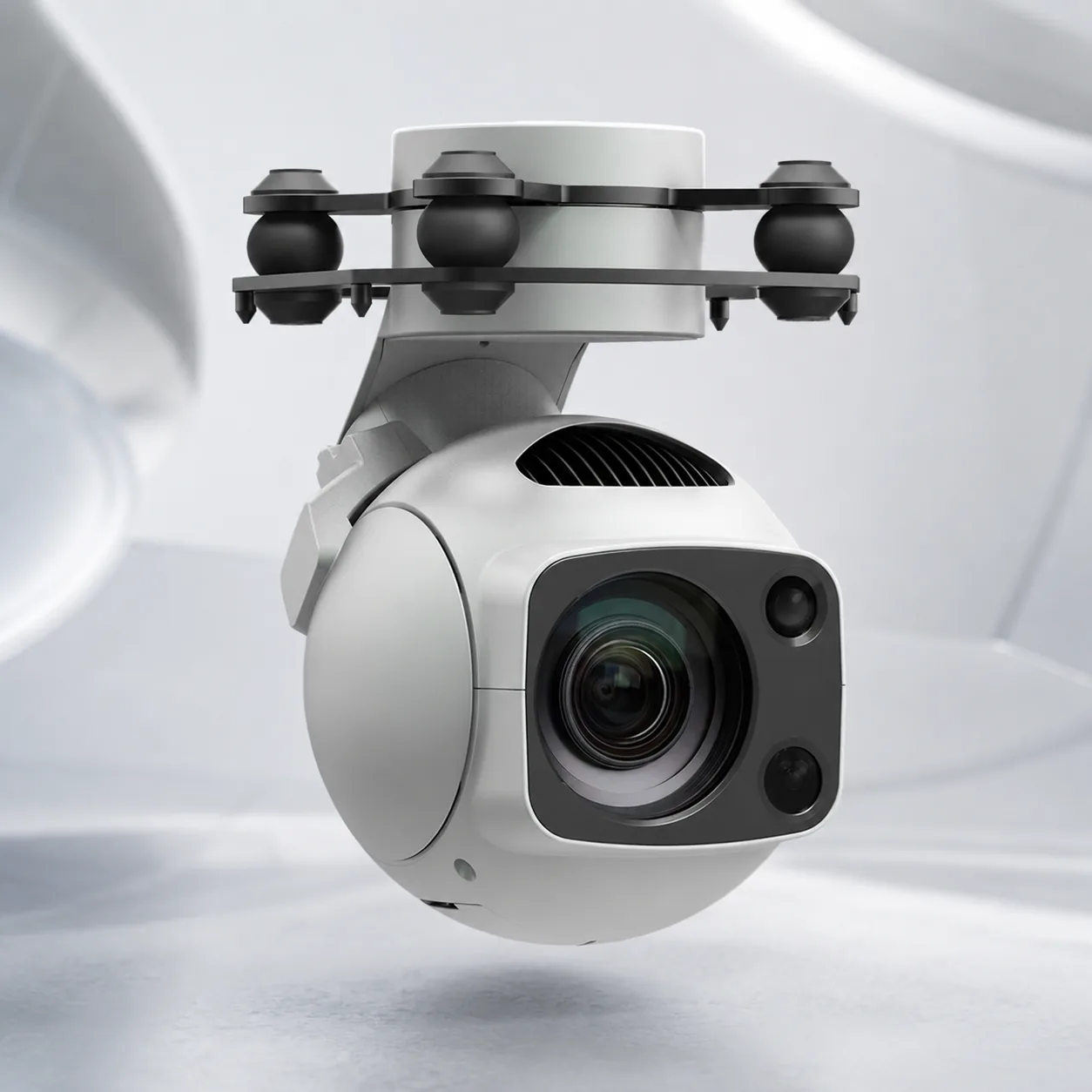

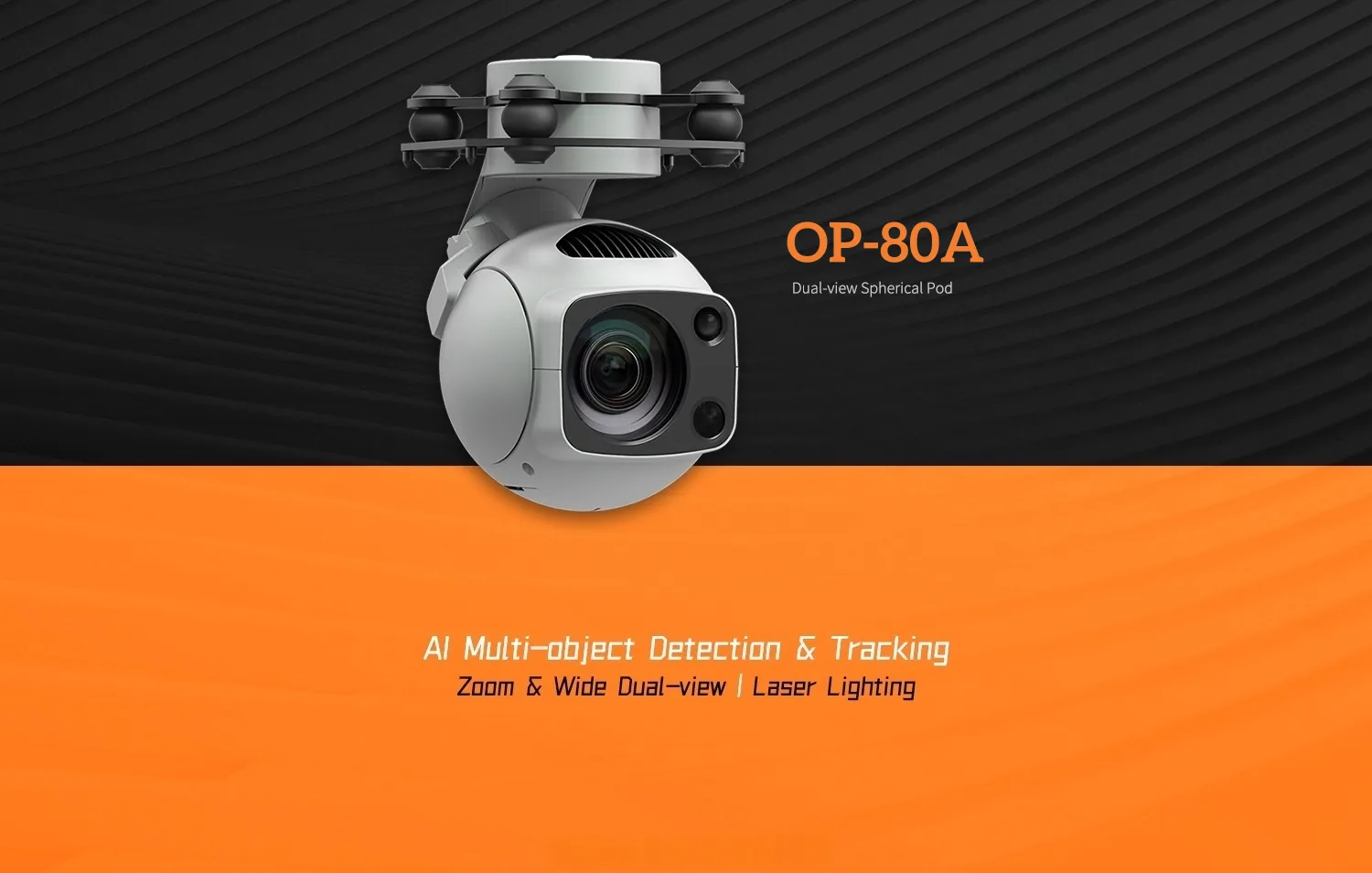

OP-80A Dual-View 30x AI Spherical Gimbal Camera, Laser Illumination
OP-80A is a dual-view AI spherical UAV payload with a wide-angle camera, 30x hybrid zoom camera and integrated laser illumination. It supports AI multi-object detection and tracking, MAVLink, OSD data overlay and high-precision 3-axis stabilization for day/night surveillance, inspection and security workflows.
Starting price
US$1,130

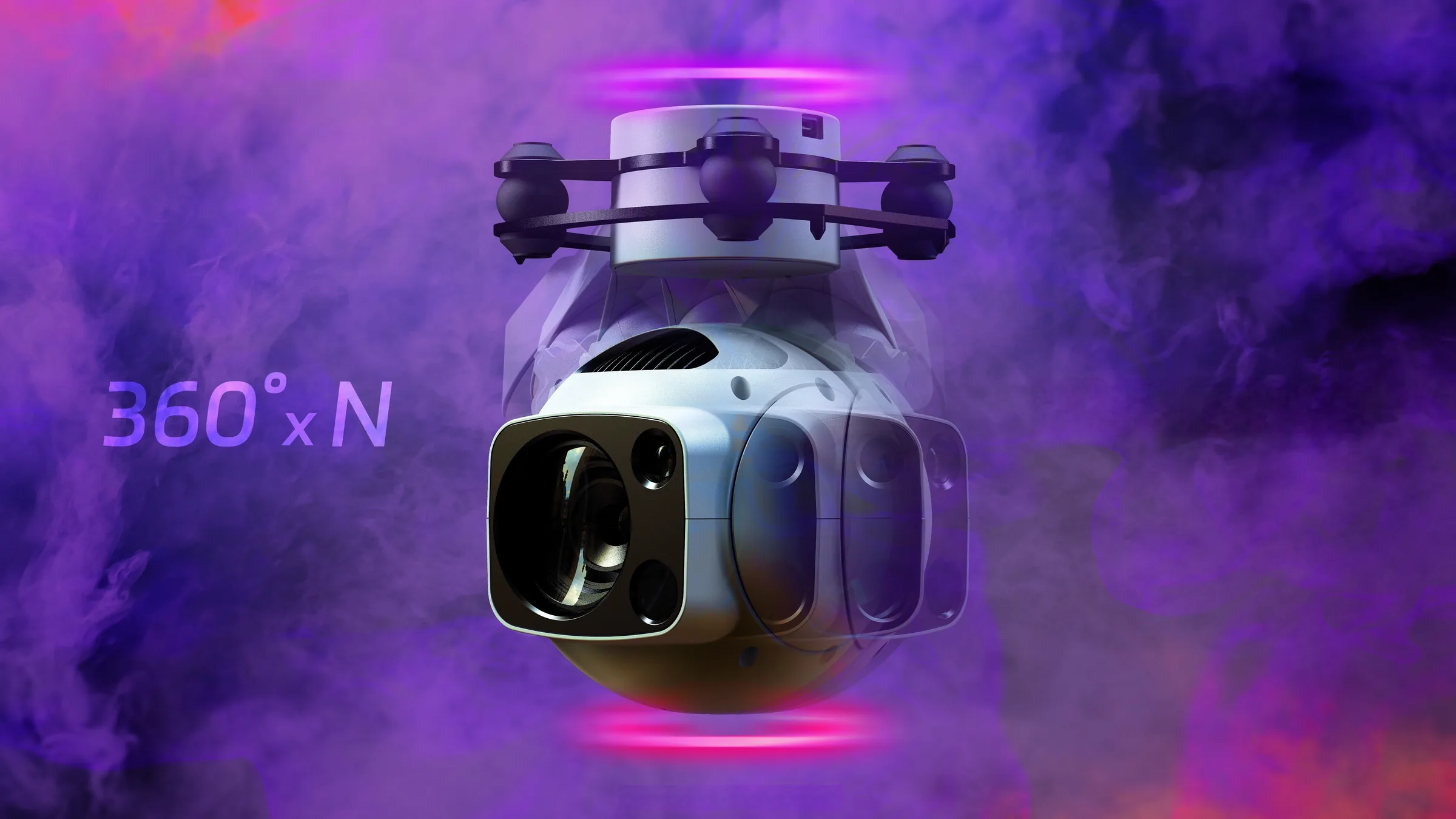

Rotate ∞°
DETAILS
Product Details
- Dual-view spherical payload with wide-angle imaging, 30x hybrid zoom and laser illumination.

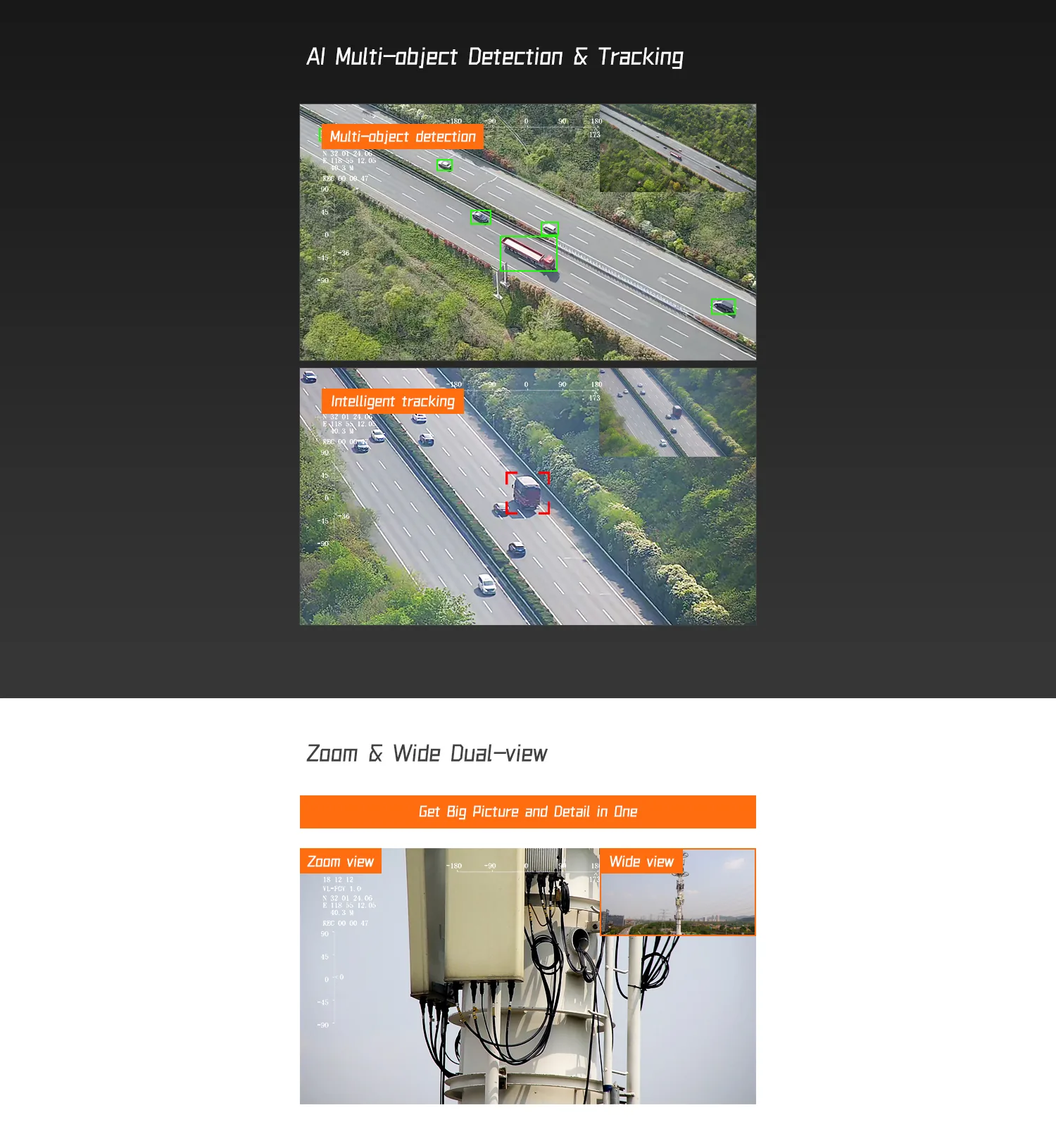

- AI target detection and tracking improves observation continuity in public safety and inspection missions.
- MAVLink, network, UART and S.BUS control support flexible UAV integration.
- OSD overlay, EXIF coordinate saving and SEI stream data support mission documentation.
Applications
- Drone surveillance and patrol
- Public safety and emergency response
- Industrial inspection and security monitoring
- Search and rescue support
SPECIFICATIONS

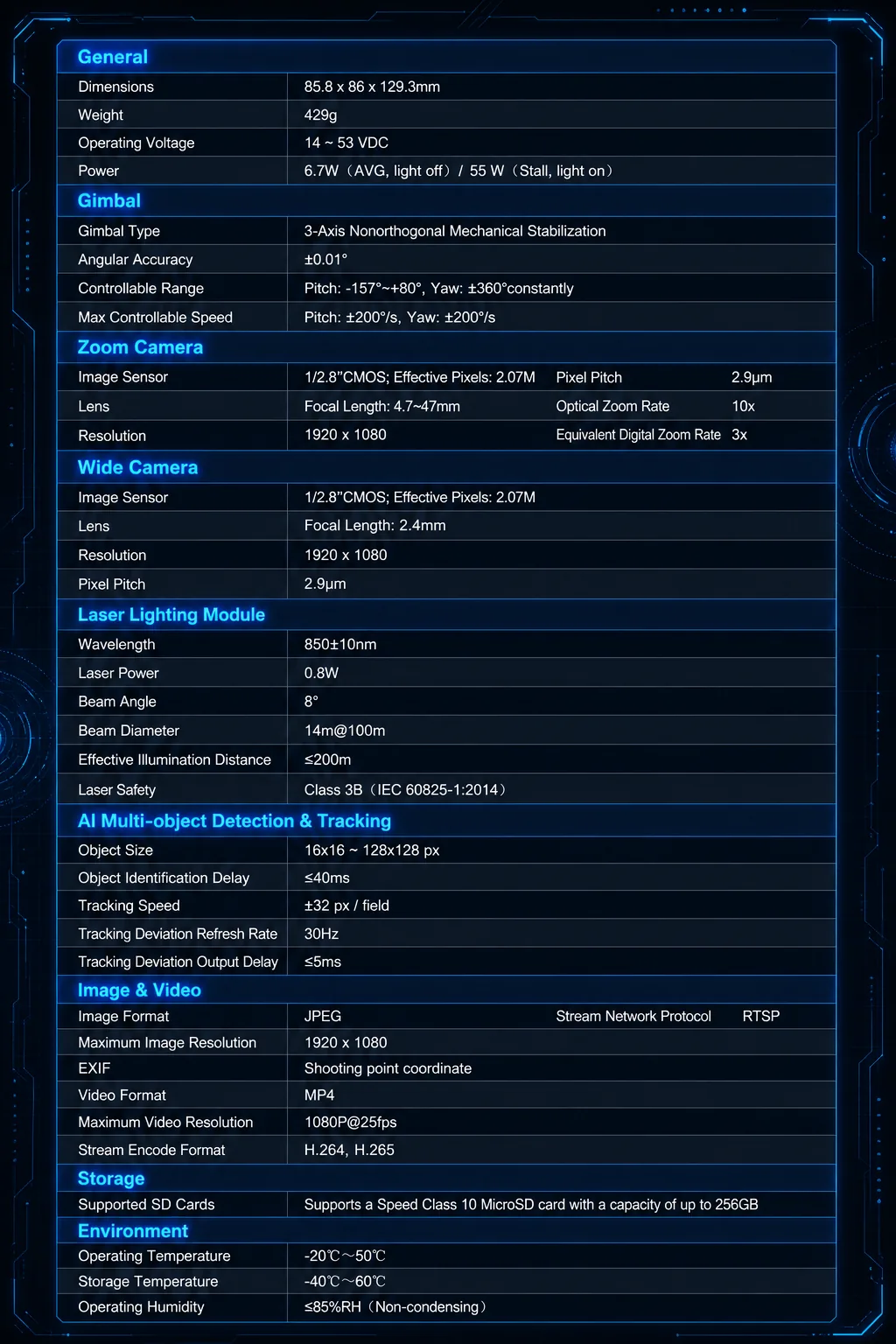

Specifications
| General | |
|---|---|
| Product Name | OP-80A |
| Dimensions | Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm |
| Weight | Pod: 429g; GCU: 18.6g |
| Operating Voltage | 14 ~ 53 VDC |
| Power | Pod: 6.7W (AVG, light off) / 55W (Stall, light on); GCU: 1.8W |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: -157°~+80°, Yaw: ±360°constantly |
| Max Controllable Speed | Pitch:±200°/s, Yaw: ±200°/s |
| Zoom Camera | |
| Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
| Focal Length | 4.7~47mm |
| HFOV | 61.3°~6.8° |
| VFOV | 36.9°~3.9° |
| DFOV | 68.4°~7.8° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
| Optical Zoom Rate | 10x |
| Equivalent Digital Zoom Rate | 3x |
| Min Illumination | Night Vision off: 0.01Lux / F1.6; Night Vision on: 0.0015Lux / F1.6 |
| Wide Camera | |
| Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
| Focal Length | 2.4mm |
| HFOV | 98.5° |
| VFOV | 44.3° |
| DFOV | 101.7° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
| Laser Lighting Module | |
| Wavelength | 850±10nm |
| Laser Power | 0.8W |
| Beam Angle | 8° |
| Beam Diameter | 14m @ 100m |
| Effective Illumination Distance | ≤200m |
| Laser Safety Class | 3B (IEC 60825-1:2014) |
| AI Multi-object Detection & Tracking | |
| Object Size | 16x16 ~ 128x128 px |
| Object Identification Delay | <40ms |
| Tracking Speed | ±32 px / field |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤5ms |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinate |
| Video Format | MP4 |
| Maximum Video Resolution | 1080P@25fps |
| Stream Encode Format | H.264, H.265 |
| Stream Network Protocol | RTSP |
| Storage | |
| Supported SD Cards | Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB |
| Support File System | HDD-FAT32 |
| Environment | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
| Detection & Distance Reference | |
| Zoom Camera - Object Detection Distance | Johnson Criteria Person: 8103m; Light vehicle: 24851m; Large vehicle: 52943m; EN62676-4:2015 Person: 709m; Light vehicle: 932m; Large vehicle: 1986m |
| Zoom Camera - Object Identification Distance | Johnson Criteria Person: 2026m; Light vehicle: 6213m; Large vehicle: 13236m; EN62676-4:2015 Person: 142m; Light vehicle: 187m; Large vehicle: 397m |
| Zoom Camera - Object Verification Distance | Johnson Criteria Person: 1013m; Light vehicle: 3106m; Large vehicle: 6618m; EN62676-4:2015 Person: 71m; Light vehicle: 93m; Large vehicle: 199m |
KEY TAKEAWAYS
- Weighs Pod: 429g; GCU: 18.6g at Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm, which sets the airframe and mount it fits.
- 3-axis Nonorthogonal Mechanical Stabilization holds ±0.01° angular accuracy.
- Runs on 14 ~ 53 VDC drawing Pod: 6.7W (AVG, light off) / 55W (Stall, light on); GCU: 1.8W — budget this against your platform's spare payload power.
- Imaging resolution 1920 x 1080.
OP Series models compared
| Model | Weight | Dimensions | Stabilization | Angular accuracy | Resolution | Input voltage |
|---|---|---|---|---|---|---|
| OP-125A | 1055g | 142 x 125 x 187mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 2688(H) x 1520(V) | 20 ~ 53 VDC |
| OP-80A | Pod: 429g; GCU: 18.6g | Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-80N | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920(H) x 1080(V) | 20 ~ 53 VDC |
| OP-80P | Pod: 405g; GCU: 18.6g | Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840 x 2160 | 14 ~ 53 VDC |
| OP-80R | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-80T | 430g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-80U | 398g | 89.6 x 86 x 124.6mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
| OP-90A | Pod: 608g; GCU: 18.6g | Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-90D | Pod: 576g; GCU: 18.6g | Pod: 96.4 x 96 x 147mm; GCU: 45.4 x 40 x 13.5mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920 x 1080 | 14 ~ 53 VDC |
| OP-90N | 620g | 96.4 x 96 x 147mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 1920(H) x 1080(V) | 20 ~ 53 VDC |
| OP-90P | 620g | 96.4 x 96 x 147mm | 3-axis Nonorthogonal Mechanical Stabilization | ±0.01° | 3840(H) x 2160(V) | 20 ~ 53 VDC |
Frequently asked questions
How much does the OP-80A weigh?
OP-80A weighs Pod: 429g; GCU: 18.6g. Its dimensions are Pod: 85.8 x 86 x 129.3mm; GCU: 45.4 x 40 x 13.5mm, so check both mass and envelope against your mount.
What power does the OP-80A need?
OP-80A accepts 14 ~ 53 VDC. Power draw is Pod: 6.7W (AVG, light off) / 55W (Stall, light on); GCU: 1.8W. Confirm your platform can supply this continuously, not just at peak.
How is the OP-80A stabilized?
OP-80A uses 3-axis Nonorthogonal Mechanical Stabilization. Published angular accuracy is ±0.01°.
What is the OP-80A controllable range?
Pitch: -157°~+80°, Yaw: ±360°constantly. This is the mechanical travel available to the operator or autopilot.
What resolution does the OP-80A capture?
1920 x 1080.
What temperature range does the OP-80A operate in?
-20℃~50℃. Outside this band the published specifications no longer apply.
