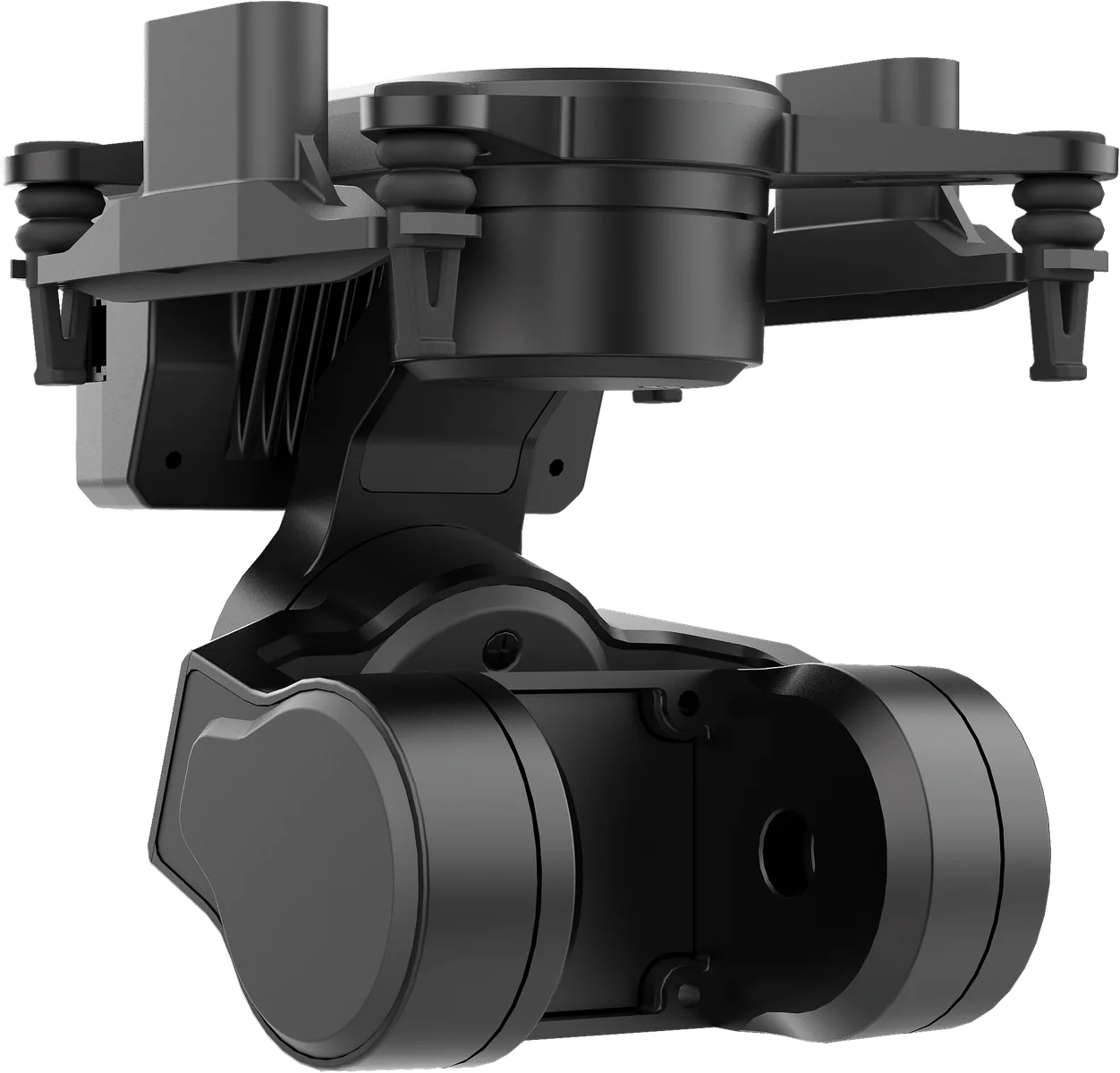

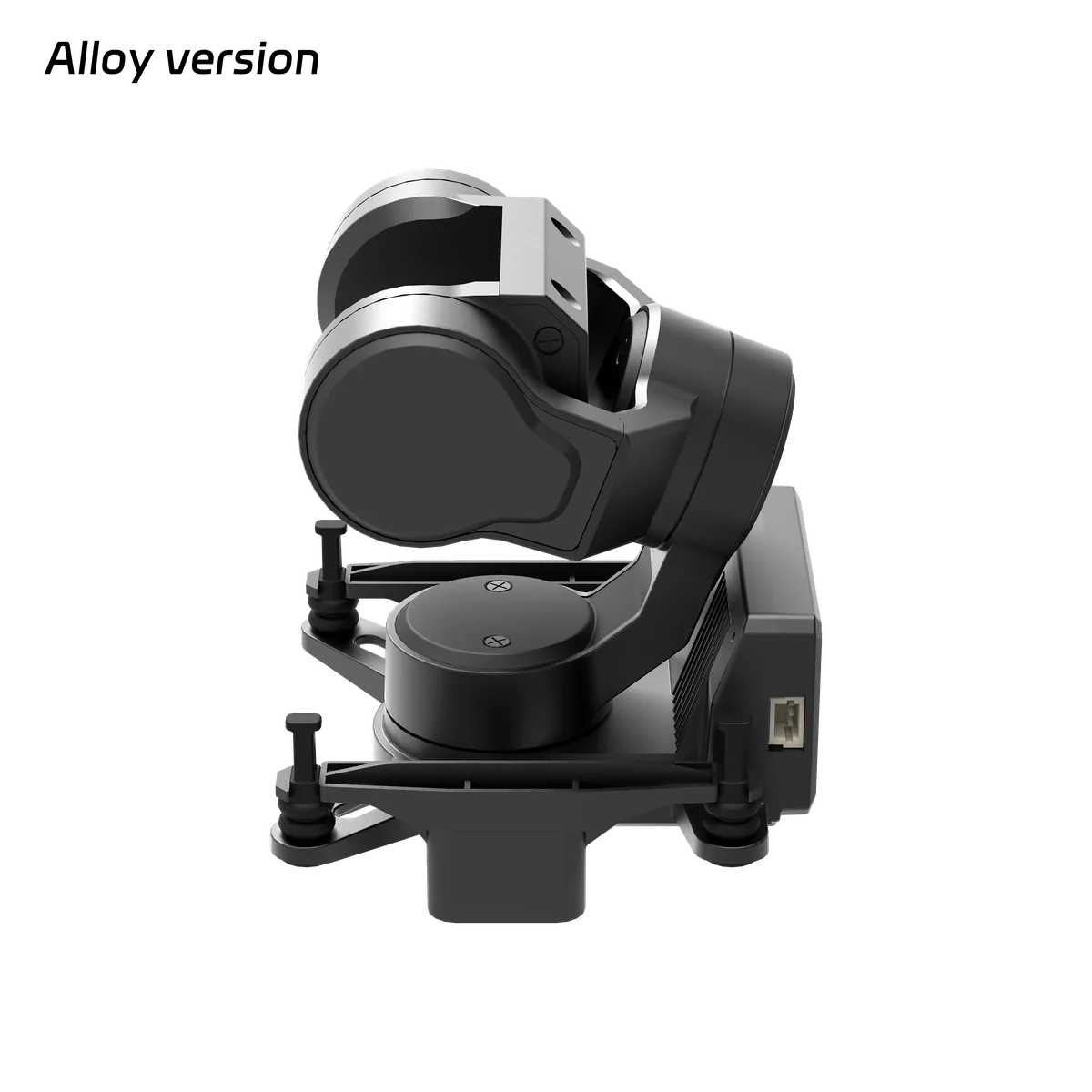

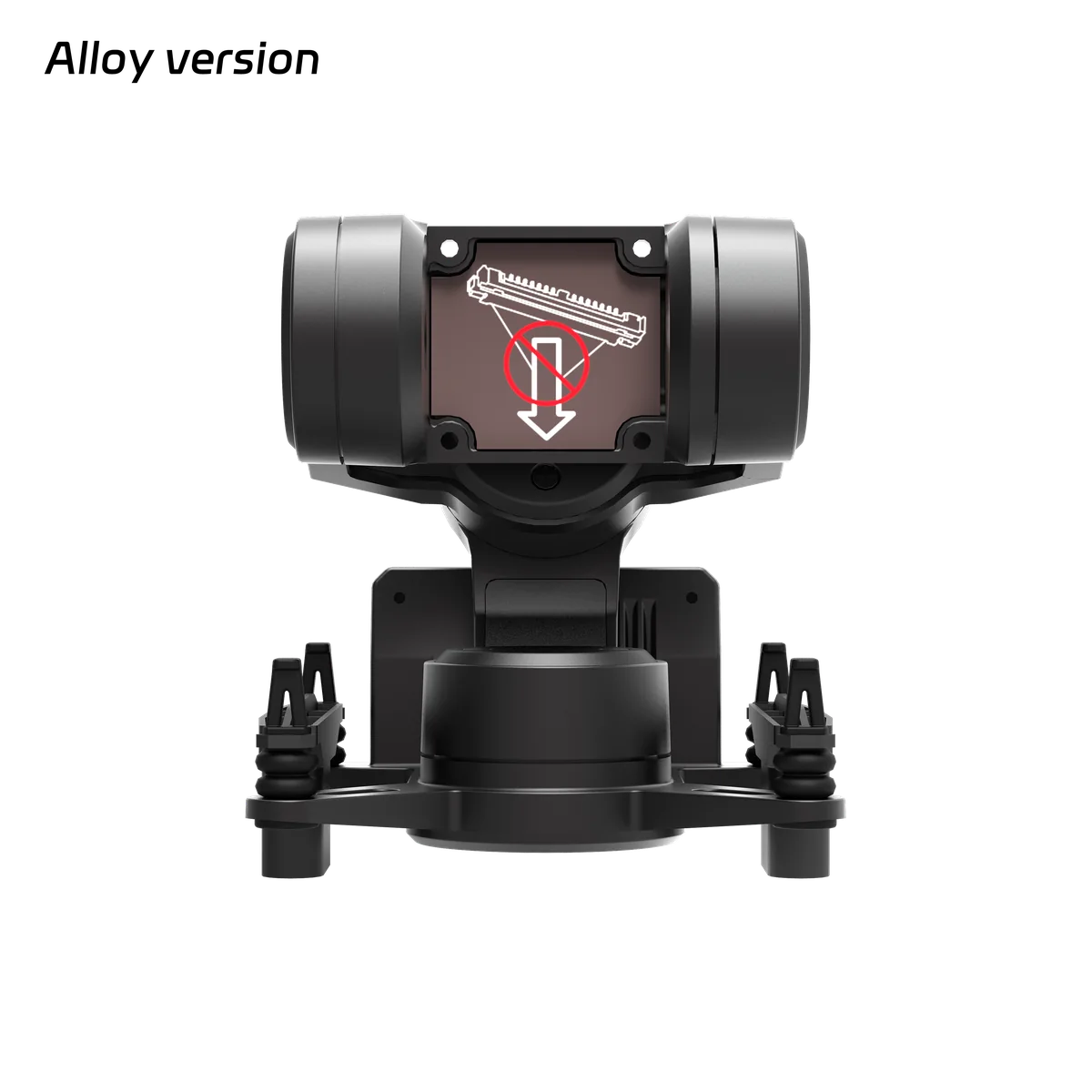

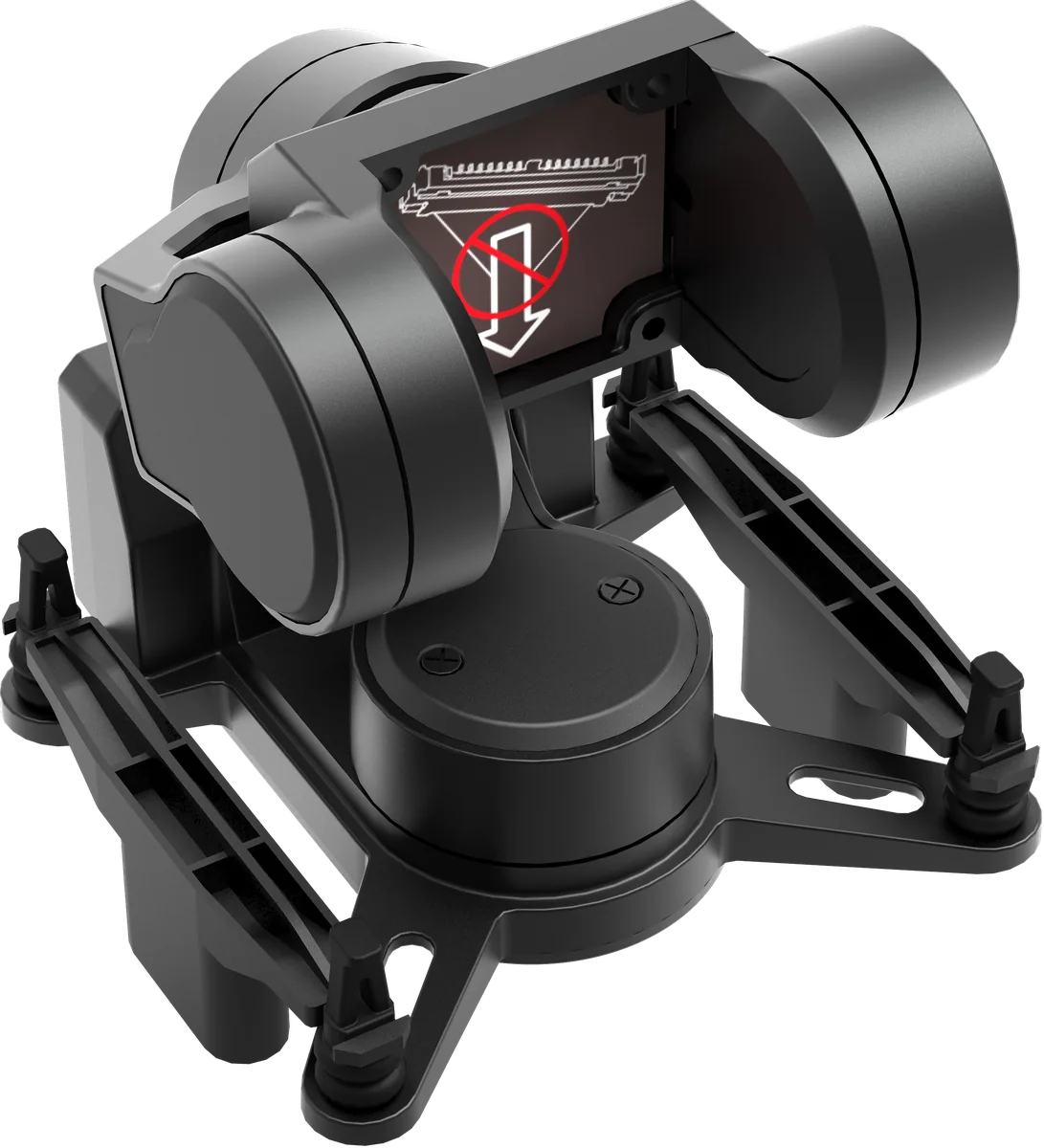

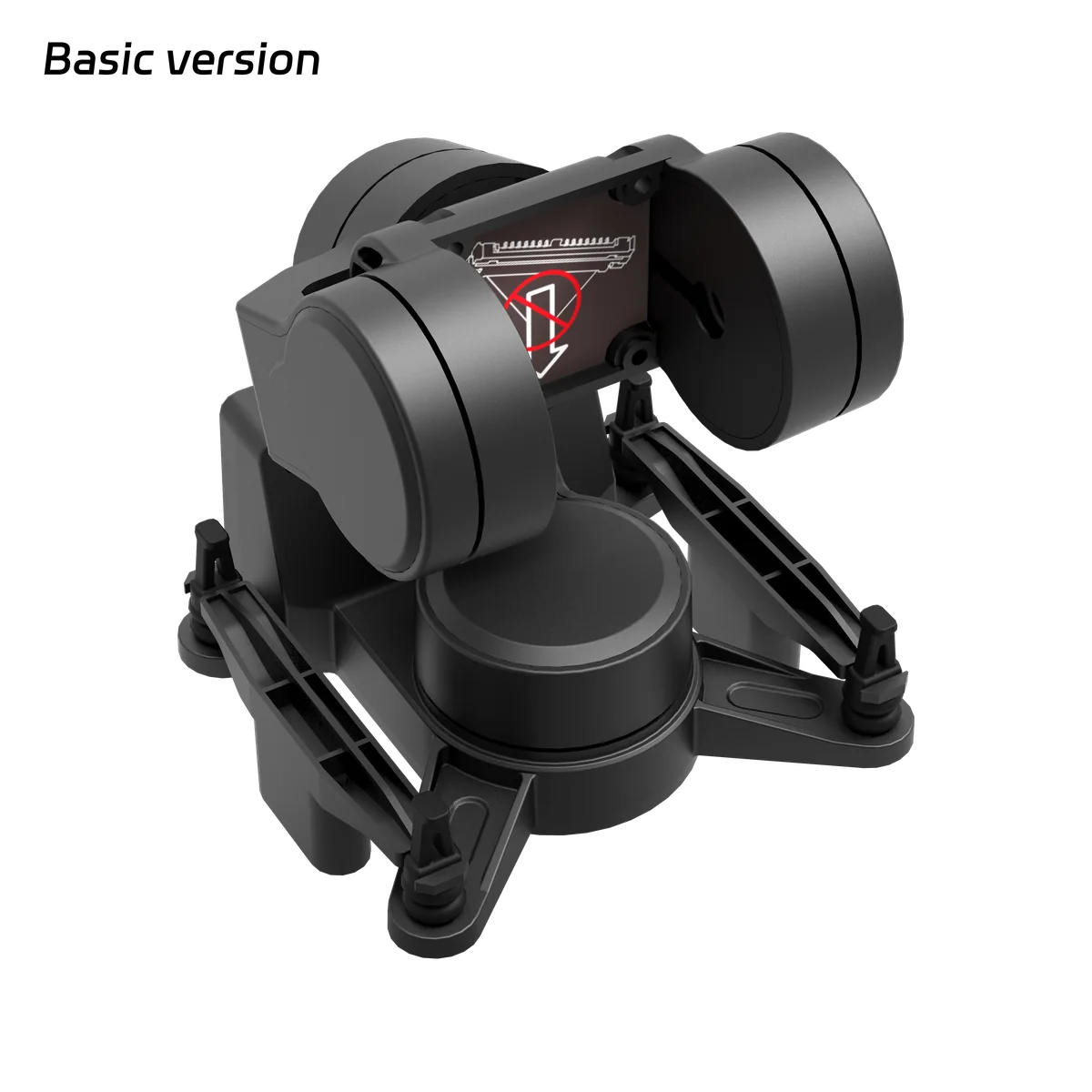

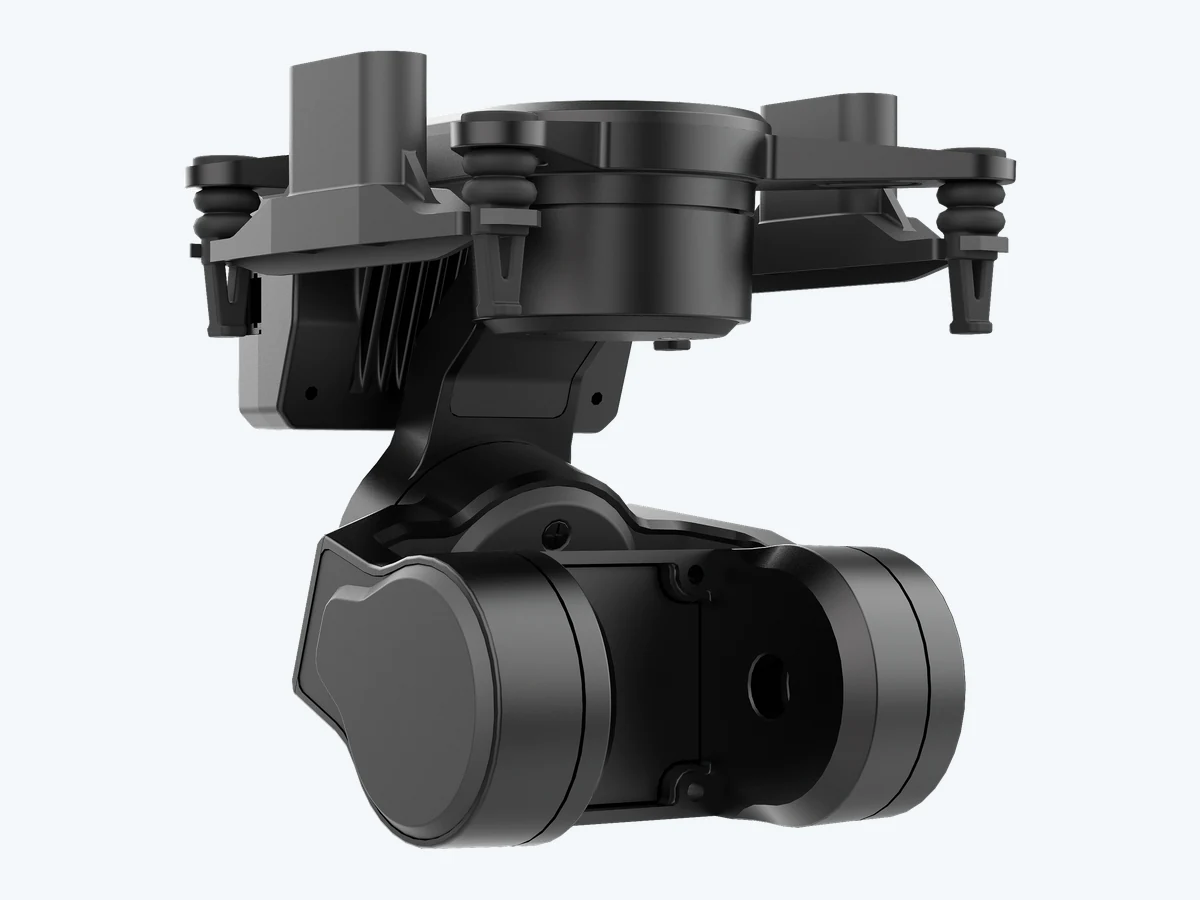

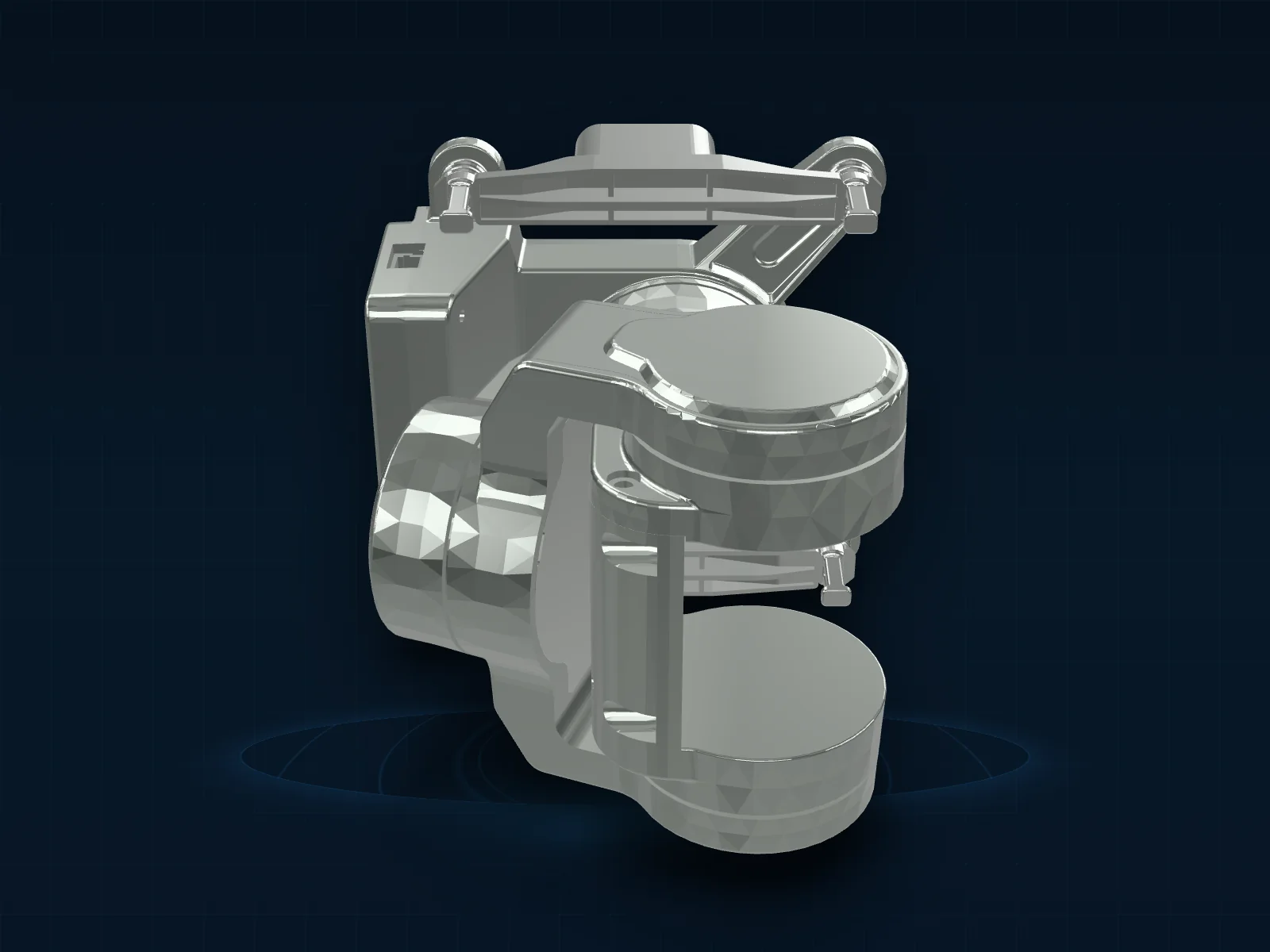

AX-20T O3 46g 3-Axis FPV Gimbal
AX-20T O3 is a 3-axis FPV gimbal variant configured for DJI O3 digital FPV camera system. It keeps the AX-20T platform's 3-axis nonorthogonal mechanical stabilization, head tracking support, UART/MAVLink, S.BUS, CRSF and PWM control, plus downward/upward mounting support where applicable.
Starting price
US$99
Rotate ∞°
DETAILS
Product Details
- Camera bracket and mounting layout are matched to DJI O3 digital FPV camera system.
- 3-axis nonorthogonal mechanical stabilization helps maintain stable FPV footage on drones, RC aircraft and vehicle platforms.
- Headtracker, UART/MAVLink, S.BUS, CRSF and PWM control support common FPV integration workflows.

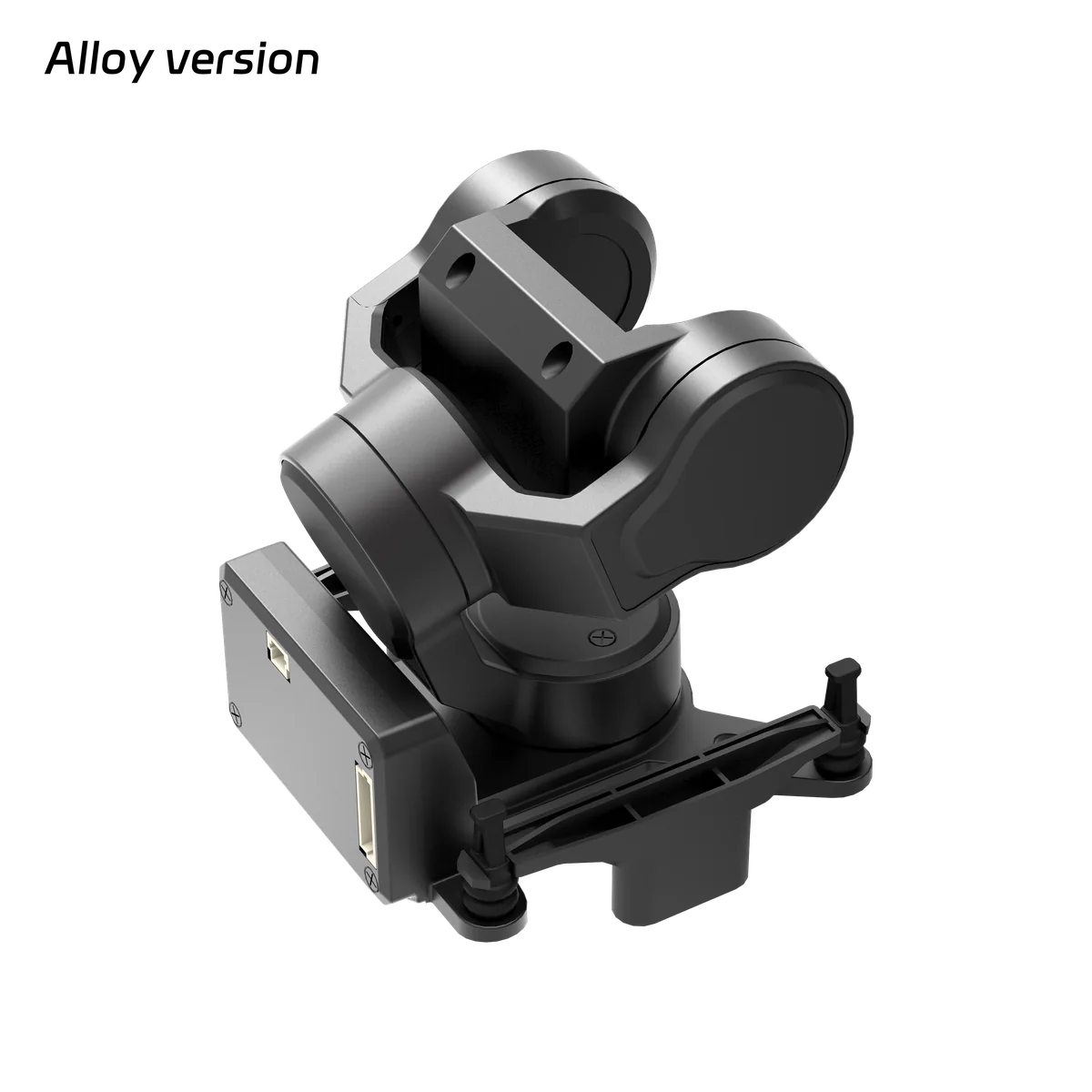

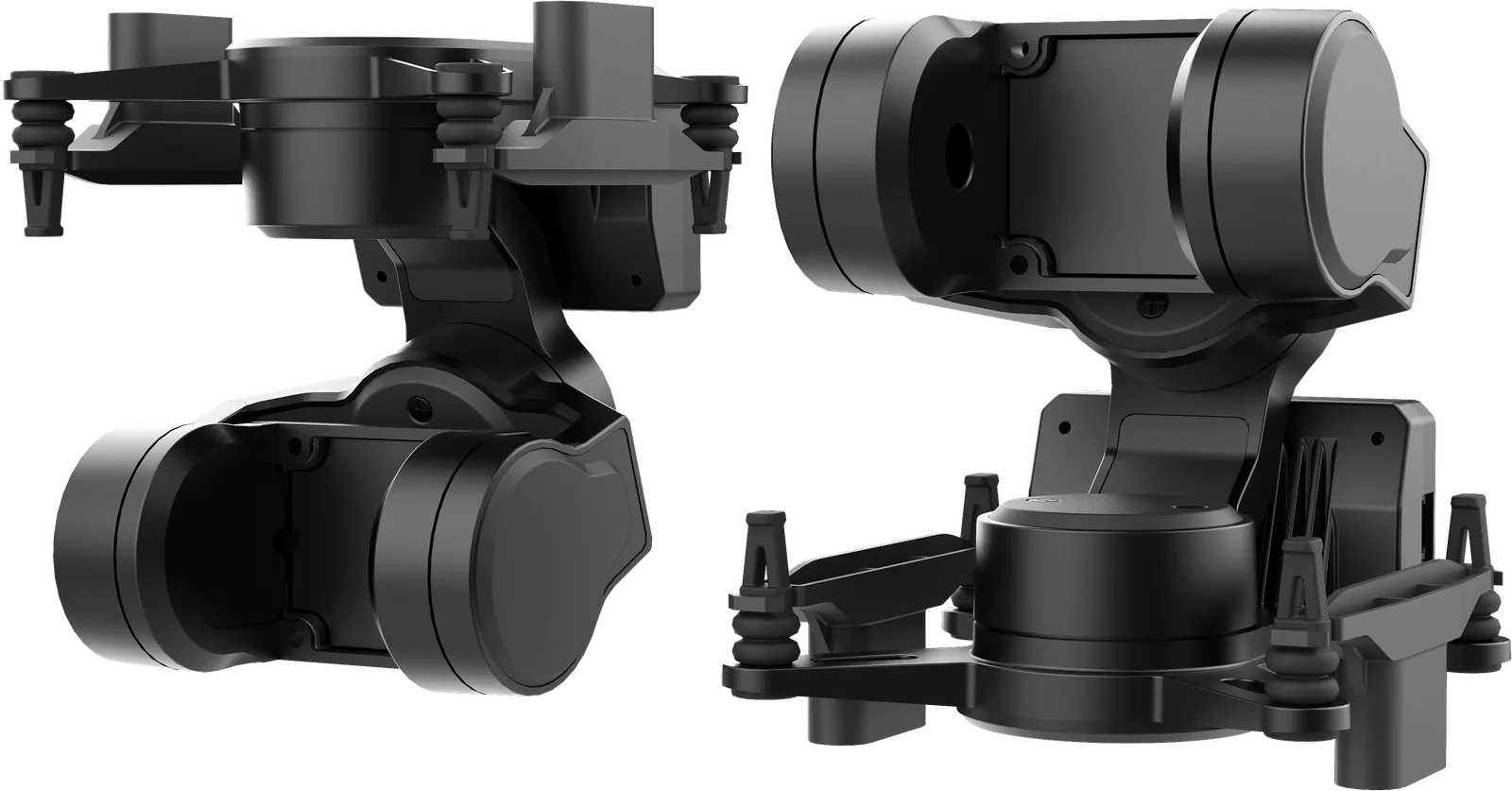

- Downward or upward mounting support gives integrators more flexibility in compact platform builds.
Applications
- DJI O3 FPV drone builds
- FPV drone builds
- RC fixed-wing and vehicle platforms
- Head-tracking camera control
SPECIFICATIONS
Specifications
| General | |
|---|---|
| Product Name | AX-20T |
| Dimensions | 46.8 x 46.4 x 53.4mm |
| Weight | 46g |
| Operating Voltage | 7.4~26.4VDC |
| Power | 1.5W (AVG) / 14W (Stall) |
| Mounting | Downward / Upward |
| Control Port | Headtracker / S.BUS / CRSF / PWM / MAVLink |
| Camera Compatibility | |
| Product Variant | AX-20T O3 |
| Supported Camera System | DJI O3 digital FPV camera system |
| Camera Fit | Variant-specific FPV camera mounting for the listed DJI digital FPV camera system |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | +/-0.005 deg |
| Controllable Range | Pitch: +/-120 deg, Roll: +/-60 deg, Yaw: +/-160 deg |
| Max Controllable Speed | +/-1500 deg/s |
| Camera Suitability | |
| Maximum Weight | 20g |
| Maximum Width | 19mm |
