Sub-250 g Drones, Real Thermal: What 69–130 g Micro Payloads Can Do

The newest micro gimbal payloads put capabilities that needed a 1 kg payload five years ago — 4K imaging, AI tracking, full-colour night vision, even 640×512 thermal — into 69 to 130 grams.

• 69 gLightest stabilised entry
• 130 gWeight for 640×512 thermal
• ±0.01°Pointing accuracy across the class
• 12 µmThermal pixel pitch

Why Sub-250 g Matters

Many jurisdictions apply lighter regulatory requirements below a 250 g takeoff weight — reduced registration burden, fewer operational restrictions, in some cases a simpler path to flying near people. That threshold has shaped an entire aircraft category, and payload designers have chased it hard.

The arithmetic is unforgiving. Every gram of payload competes directly with battery and airframe, and unlike a larger aircraft there is no slack to absorb a heavier sensor. A payload that is 30 g over budget does not merely reduce endurance; it can push the aircraft across a regulatory line and change what the operator is allowed to do with it.

Be precise about which limit you are working to, though. A 130 g payload leaves very little for airframe, battery and avionics under a 250 g all-up weight, so in practice the heavier end of this class serves lightweight builds generally rather than strictly sub-250 g aircraft. Check the total, not the payload figure — payload weight versus flight time covers the trade properly.

The UAVThermal Micro Line

Five payloads cover the range from minimum-mass stabilised imaging to a genuinely multi-sensor micro pod.

Payload	Weight	Thermal	Pointing accuracy	Role
MV-1M	69 g	—	±0.01°	4K with AI tracking — the lightest stabilised entry
MV-1P	100 g	—	±0.01°	Starlight sensor, full-colour night vision
MV-2M	110 g	256×192, <50 mK	±0.01°	Dual-sensor: 4K visible plus thermal
MV-2P	130 g	640×512, <40 mK	±0.01°	Full 640×512 thermal with AI tracking

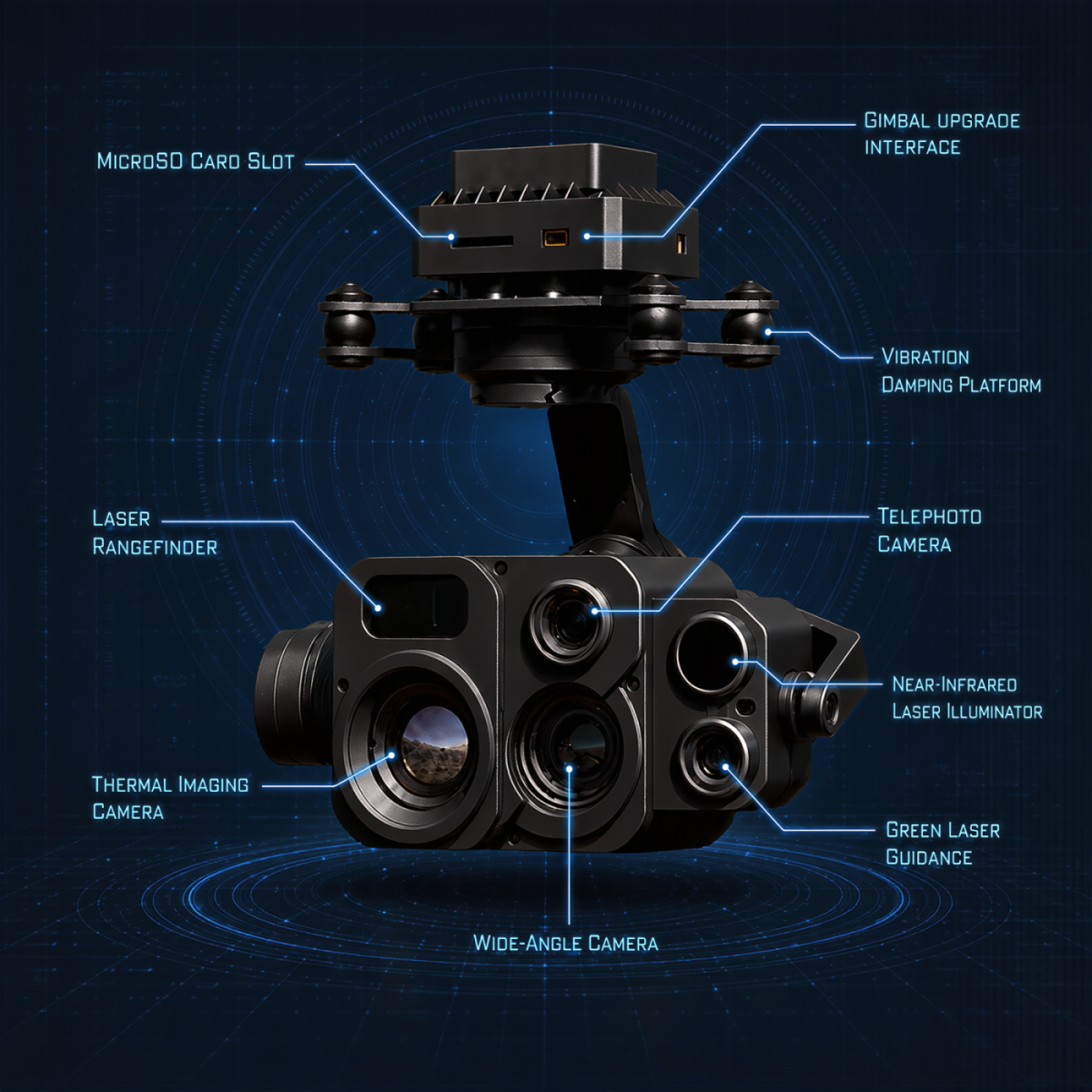

MV-4X	366 g	Uncooled VOx	±0.01°	Quad-sensor flagship: dual starlight, thermal, NIR laser

Two things in that table deserve emphasis. The MV-2P delivers 640×512 thermal at <40 mK — the best published NETD anywhere in the line, in a 130 g package. And pointing accuracy is ±0.01° across the whole class, identical to pods five times heavier, so miniaturisation has not cost stabilisation quality. What ±0.01° means at 1,000 metres puts that figure in context.

The MV-4X is included because it belongs to the same micro design lineage, but at 366 g it is not a sub-250 g payload. It is what you fly when a small airframe needs to carry nearly everything at once, including a 5–2,000 m rangefinder.

What You Trade at Micro Scale

Three capabilities remain the domain of larger payloads, and no amount of engineering is likely to change that soon.

Optical zoom reach. A long zoom block is physically large — glass and travel do not miniaturise — so the micro pods rely on digital zoom while the OP and LX series carry 10x to 30x optical. If your mission needs to read a nameplate at 300 m, this class cannot do it, and hybrid zoom explains why the digital multiplier does not substitute.

Laser ranging. Rangefinding appears from the MV-4 series upward. Without it, the payload can show you a target but cannot hand anyone a coordinate — see why an LRF belongs on your payload.

Environmental sealing. Ingress protection costs mass and volume, and the micro class carries less of it than a pod designed for offshore or all-weather work. What IP67 really promises covers how to read the ratings.

What the Class Unlocks

The missions that benefit are the ones where aircraft size was the binding constraint rather than sensor performance.

Patrol-launched response is the clearest. An aircraft that lives in a vehicle and launches in under a minute delivers more operational value than a better sensor that arrives twenty minutes later — a point building a public safety drone programme makes about stage-one capability.

Then confined and indoor inspection, where a large multirotor is simply not flyable. And ranch and wildlife work where an unobtrusive aircraft disturbs animals less — livestock monitoring and wildlife monitoring both benefit from an aircraft the subject ignores.

Finally, cost of loss. A micro aircraft flown over water, over a fire, or into a structurally uncertain building represents a fraction of the exposure of a large pod, which changes what operators are willing to attempt.

Choosing Within the Class

The decision reduces to one question: what has to happen after detection?

1. If the mission is daylight documentation and tracking, the MV-1M at 69 g is the minimum-mass answer.
2. If it is night identification of people and objects in colour, the MV-1P starlight sensor is the specialist.
3. If you need guaranteed detection regardless of ambient light, thermal is mandatory — MV-2M for close-range work, MV-2P for standoff.
4. If the mission needs both identification and thermal detection in one flight, step up to the MV-4X and accept the mass.

The common error is buying thermal resolution the altitude cannot use, or buying a visible-only pod for a mission that turns out to be nocturnal. Thermal detects regardless of light; starlight identifies but needs some. Starlight vs NIR vs thermal compares the three approaches directly, and 256×192 vs 640×512 covers the resolution step between the MV-2M and MV-2P.

Related reading

• Starlight and Low-Light Imaging: Seeing in 0.01 Lux Without Thermal
• Payload Mechanical Integration: Mounts, Damping and Balance
• Payload Weight vs Flight Time: The Math Every Integrator Runs
• Starlight vs NIR vs Thermal: Drone Night Vision Compared
• 256×192 vs 640×512: Choosing Drone Thermal Camera Resolution
• What ±0.01° Gimbal Accuracy Means at 1,000 Metres
• IP Ratings on UAV Payloads: What IP67 Really Promises
• MV-1M — 69 g stabilised 4K micro pod
• MV-1P — 100 g starlight micro pod
• MV-2M — 110 g dual-sensor micro pod
• MV-2P — 640×512 thermal at 130 g
• Wildlife Monitoring and Conservation with Thermal Drones

FAQ

Can a sub-250 g drone really carry thermal?

Yes — at 110 to 130 g the MV-2 series fits lightweight builds while leaving mass for usable flight time. Do check the total rather than the payload figure, because 130 g of payload under a 250 g all-up limit leaves little for airframe and battery; the heavier end of this class often serves lightweight builds generally rather than strictly sub-250 g aircraft. The 110 g MV-2M is the more comfortable fit where the regulatory threshold is the hard constraint.

Which micro payload for night work?

MV-1P for full-colour low-light identification, MV-2P for guaranteed thermal detection, MV-4X when the mission needs both. The distinction matters: starlight sensors amplify whatever light exists and produce an image a person can identify from, but they need some ambient light. Thermal detects a warm body in complete darkness but tells you far less about who it is. Missions that must both find and identify need two channels.

Does the small size cost stabilisation quality?

Not in this class. The published pointing accuracy across the MV micro line is ±0.01°, the same figure as pods several times heavier. What miniaturisation does cost is optical zoom reach, laser ranging and environmental sealing — capabilities that depend on physical volume in ways stabilisation electronics do not.
